You can also lighten these ring & pinion gears, check the appropriate box at the bottom of the shopping grid.
Currie's Universal Hot Rod Ford 9" kit includes a brand new 56" housing, lifetime warranty 31 spline axles, new axle bearings and seals, and new style big Ford ends.
NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool.The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.
We found a limited supply of new small yokes for the 9" Ford. They accept the 1310 series U-joints (1-1/16" caps x 3-7/32"). Fits standard 28 spline pinion gear.
These 9" Ford rear axle pinion seals are good to over 400 F. Stock rubber seal starts to deteriorate at about 250 F.
Kit Contains: nine pinion retainer shims consisting of one each .005", .006", .0075", .0082", two .004", and three .0105"; twelve pinion pre-load shims consisting of one each .005", .006", .0075", .0082", .009", .020", .030", two .050", and three .010"; one pinion spacer .375" thick; and one 3/4"-20 Ford pinion nut.
We also offer standard gears from 3.50 to 6.50 ratios on our site. See 91919350.
This all-new 9" Ford housing features big bearing ends (bearings included) and lifetime warranty 31-spline axles with dual bolt patterns (5 x 4.5" and 5 x 4.75"). Center sectionNOT included.
If your class does not allow a grand national rear end this is your best choice. These housings have new centerless ground 3" tubes installed in reclaimed original Ford 9" housings and have the end and metric brackets jig welded in place. We offer this housing with either centered or 2" offset to the right pinion locations. Works great with Currie cut-to-fit axles. Axles sold separately. IMCA Approved.
Our economical 9" Ford rear axle housing features a reclaimed center section, new 3" axle tubes, and new-style Ford ends. Total track width is 56" from hub-to-hub. You will need one 26-3/8" long axle and one 28-5/8" long axle.
This handy spanner wrench allows you to properly adjust the side carrier bearings on a 9" Ford rear end. Works with carrier bearing adjuster rings that have perfectly ROUND holes only (as pictured). Will not work on rings with elongated or oval holes.
Lightweight and standard steel Ford 9" full spools are available with 28 or 31 splines. Standard steel spool weighs 8.9 lbs. The lightweight steel spool, is 6 lbs.
If you don't want to spend an arm and a leg on a rear disc brake kit and still have to weld the bracket on, we've got you covered. This kit includes bolt-on caliper brackets, 11-1/4" vented rotors, '78-'88 GM metric style calipers, brake pads and hardware.
91081005Tube O.D.1.000"Upper Mount O.D.2.000"Material Thickness0.090"Material TypeSteelFinishZincSold in QuantityEachNotesBolt hole dimension measured across the front is 10-5/16". From extended centerline from top bolt holes down to the single bolt hole is 6-5/8".
Speedway Motors now offers you a 9" Ford street 3rd member for your street rod. We reclaim genuine Ford 9" housings, clean, inspect and install all new components. All bearings, seals, 1310 series yoke and ring & pinion are new!These Ford 9" 3rd member assemblies feature new Pro Gears ring & pinion, choice of 3.50, 3.70, 3.89, 4.11 or 4.56, Currie 9-Plus limited slip differential, 28 or 31 spline. Shipped in handy plastic carrying case. Assembled by professionals.
Our economical 9" Ford rear axle housing features a reclaimed center section, new 3" axle tubes, and new-style Ford ends. Total track width is 56" from hub-to-hub. The pumpkin is centered in the housing, which puts the pinion offset 2-3/8" from center
Our reuseable rear differential gaskets have a steel core and non-stick coating. Fits 9" Ford rear axle third member housings.
Lose the RTV silicone! With Fel-Pro reuseable third member housing gaskets, you don't have to worry about applying an RTV and waiting for it to set up to seal. In addition, installing precut Fel-Pro gaskets helps eliminate the risk of contaminating the differential housing with RTV.

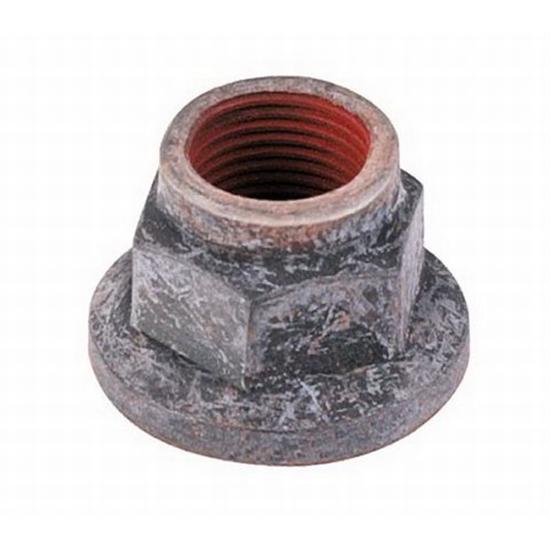

9196887Overall Height0.812" (13/16")Outside Diameter1.480"Thread Pitch3/4"-20Material TypeSteelFinishPaintedSold in QuantityEachNotesFits 8" and 9" pinions.
Rear Panhard bars are used to control the side-to-side movement of the rear axle. This is necessary when using a parallel 4-bar or hairpin radius rod rear suspension. This unit is threaded on one end for adjustment. It will require that one end be unbolted for length adjustment. Available in plain finish or polished Stainless Steel.
Alternator is 50 AMP.
This housing will allow you to put the proven 9" Ford rear axle in your '78-'88 GM Metric chassis. This heavy duty housing has the 3-1/4" x .188 axle tubes and brackets, tig welded for superior strength.
Other ratios from 4.78 thru 7.33 available in our Lightened Gear series. (Part numbers 91919-478, 91919-525, 91919-614, 91919-666, 91919-683, 91919-700, 91919-716, 91919-733).
Wilwood Dynaliterear brake kitscombine high performance braking, high-tech style, and functional simplicity for rear axle disc brake conversions that require a parking brake. Whether it's a simple conversion from drum brakes, or an upgrade to compliment wheels, tires or suspension equipment, these kits have it all.
These new Currie 31-spline axles include the stock 5 on 4 3/4" wheel bolt pattern drilled in them, wheel studs installed, 1/4 " thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
These brand new carrier housingsare built to take street/strip abuse without the fear of breaking. Our aluminum housinghas forged caps and extra beef where it's needed. Most stock differentials use the 3.062" o.d. bearings # TLM603049 w/ 1.781" i/d.
If you have built anything that has serious horsepower you know the weak link can be the stock Ford 9" carrier. The pinion area tends to be weak and if you throw enough power at it, it will break. That won't happen with this brand new housing.
This brand new carrier housing is built to take street/strip abuse without the fear of breaking. Our aluminum housinghas forged caps and extra beef where it's needed. Most stock differentials use the 3.062" o.d. bearings # TLM603049 w/ 1.781" i/d.
Now you can have the strength and serviceability that Ford drivers have enjoyed for years underneath your GM vehicle. Currie Crate Rearends are built using the stock overall width, pinion offest, and mounting points of your original rear axle housing, making it a 100% bolt-in upgrade.
Use these rear axle mounting brackets to attach any late model rear end to your 1935-1948 Ford frame. Use a 1935-1948 spring and your stock crossmember. Includes 2-1/4" shackles, weld-on brackets and instructions.
Now you can have all the strength and serviceability benefits that the Ford 9" offers underneath your Mustang. Currie Crate Rearends are built using the stock overall width, pinion offest, and mounting points of your original rear axle housing, making it a 100% bolt-in upgrade.
"Pro" brand gears offer excellent quality at a great price! We offer a terrific selection of ratios for your 8" Ford rear axle.
Note: Circle track racing applications require a minimum of 4 qts. of rear end lube. Using less than this amount will lead to immediate pinion bearing failure.
Ford 8" Overhaul Kit includes all bearings, pinion nut, pinion seal, gasket, shims, crush collar, sealant, gear marking grease, brush and Loctite.
ThePowertrax Traction Systemis the latest design in traction adding differential technology. It combines the smooth operation of a limited-slip differential, with the traction performance of a locking differential. A precise synchronization mechanism eliminates the ratcheting sounds typical of other locking differentials. Special gear and spring design reduce the backlash and therefore driveline windup. An ultra-strength alloy material is used throughout, which is 67% stronger than titanium.
Universal rear transmission mounts and heavy duty tube crossmember. Fit most GM, Ford, and Mopar manual and auto transmissions. Black powder coated finish. Crossmember must be welded directly into frame or to 3 hole mounting flanges for bolt-in application. Fits frames up to 38" wide.
Allows you to bolt '78 an Up GM Metric disc brakes on Ford 9" rearend. Hardware sold separately.Includes:2 Caliper brackets2 Adapter plates2 Spacer plates8 5/16" spacers8 1/8" spacers
This rotorwas OEM on:
This rotor was OE on these models:
91031067Outside Diameter11.000"Overall Thickness1.000"Flange Diameter6.423"Bolt Pattern5 on 4.5"Stud Length1.500" (1 1/2")Stud Diameter0.500" (1/2")Material TypeSteelFinishNaturalSold in QuantityEachNotesReplacement studs are # 91005915 or Dorman # 610176. Use caliper adapter kit # 7024475 for disc brakes on '37-'48 Ford car spindle.
This kit makes it easy to order a steering and brake kit in plain or chrome for your Ford axle. Included in kit are forged '37-'41 Ford spindles with fitted kingpins, 1-3/4" dropped bolt-on arms, 11" brake rotors with 5 on 4.5" or 5 on 4.75" bolt pattern, brackets, bearings and seals, mounting hardware, GM Metric calipers, spindle nuts, dust caps, brake lines with tabs, tie rod ends, and tie rod tube.
We offer these rear drum brake kits for thepopular 9" Ford rear axle. Each kit has new 11" drums, 2-1/4" wide brake shoes, backing plates, wheel cylinders, springs, emergency arm and hardware. Fits Old stylebig Ford housings with2-3/8" axle offset and3.15" axle bearing.
Fits New style Big Ford housing with 2-1/2" axle offset and3.15" axle bearing.Drums drilled for 5 on 4-1/2" bolt pattern.
