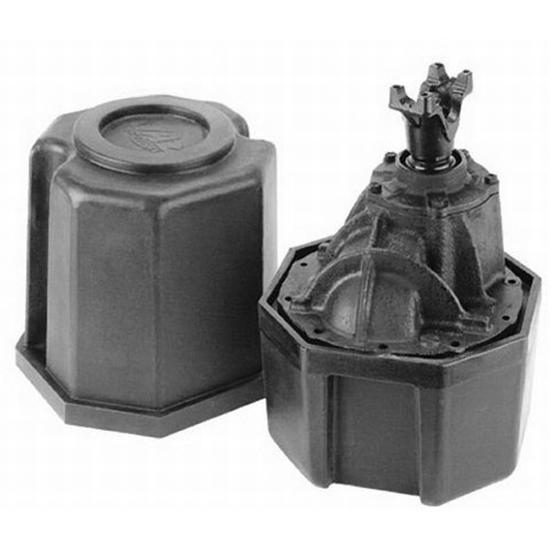

Speedway Motors now offers you a 9" Ford street 3rd member for your street rod. We reclaim genuine Ford 9" housings, clean, inspect and install all new components. All bearings, seals, 1310 series yoke and ring & pinion are new!These Ford 9" 3rd member assemblies feature new Pro Gears ring & pinion, choice of 3.50, 3.70, 3.89, 4.11 or 4.56, Currie 9-Plus limited slip differential, 28 or 31 spline. Shipped in handy plastic carrying case. Assembled by professionals.
Our completely NEW 9" Ford third members start with a heavy duty cast iron carrier featuring the larger, cast iron Daytona pinion support. Then we use a Currie 9+ limited slip differential in your choice of 28 or 31 spline and a 3.50, 3.70, 3.89, 4.11, or 4.56 gear ratio ring & pinion. Also includes NEW bearings and seals. Shipped ready for use in a plastic case.
910-48340 Instructions (PDF)
910-48342 Instructions (PDF)
Our reuseable rear differential gaskets have a steel core and non-stick coating. Fits 9" Ford rear axle third member housings.
Lose the RTV silicone! With Fel-Pro reuseable third member housing gaskets, you don't have to worry about applying an RTV and waiting for it to set up to seal. In addition, installing precut Fel-Pro gaskets helps eliminate the risk of contaminating the differential housing with RTV.
You can also lighten these ring & pinion gears, check the appropriate box at the bottom of the shopping grid.
We also offer standard gears from 3.50 to 6.50 ratios on our site. See 91919350.
Our forged, heat-treated steel mini spools are designed to replace the spider gears inside the stock differential carrier. This economy spool works best for dirt applications with claimer motors and narrow tires. - For Ford 8 or 9" rear axles.

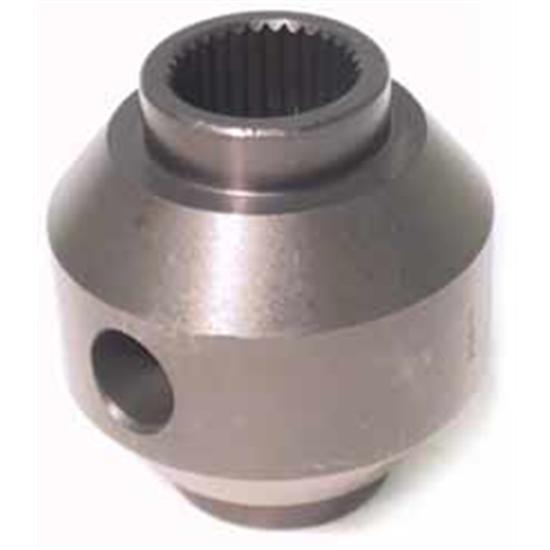

Our forged, heat-treated 8620 steel mini spools are designed to replace the spider gears inside the stock differential carrier. This premium mini spool features a larger diameter for maximum strength. It works great for most dirt applications and some asphalt.
We found a limited supply of new small yokes for the 9" Ford. They accept the 1310 series U-joints (1-1/16" caps x 3-7/32"). Fits standard 28 spline pinion gear.

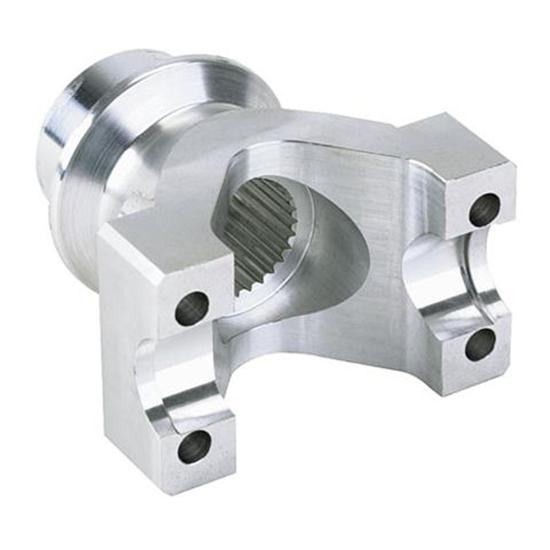

3.25" x 1.06". 9" Ford Aluminum yoke.
Yoke option for 3-1/4" u-joint with 1-1/16" caps.
Other ratios from 4.78 thru 7.33 available in our Lightened Gear series. (Part numbers 91919-478, 91919-525, 91919-614, 91919-666, 91919-683, 91919-700, 91919-716, 91919-733).
This labor option is only available on Ford 9" ring gear when you purchase your new ring and pinion.A 5.43 ring gear comes out 2.6 lbs. lighter.Other ratios may vary.
These axles have 4" of spline which will allow you to cut a maximum of 3" of the spline off to obtain the correct length. This is perfect for small shops and will allow you to build your own custom width rear end easily. Axle length is measured from the flange to the end of the splines.
Currie's Universal Hot Rod Ford 9" kit includes a brand new 56" housing, lifetime warranty 31 spline axles, new axle bearings and seals, and new style big Ford ends.
Our forged, heat-treated steel mini spools are designed to replace the spider gears inside the stock differential carrier. This economy spool works best for dirt applications with claimer motors and narrow tires. For Ford 8 or 9" rear axles.

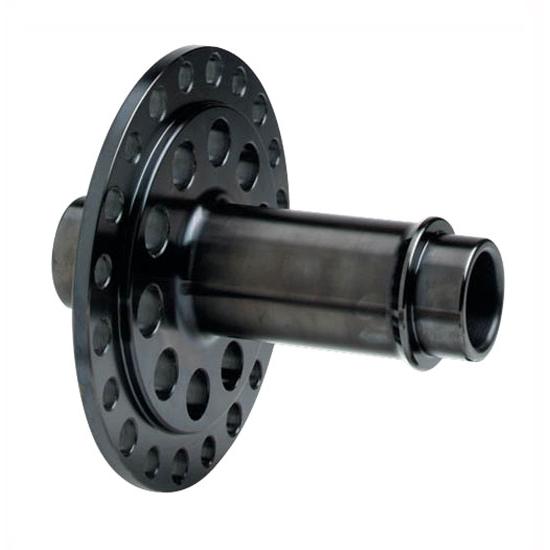

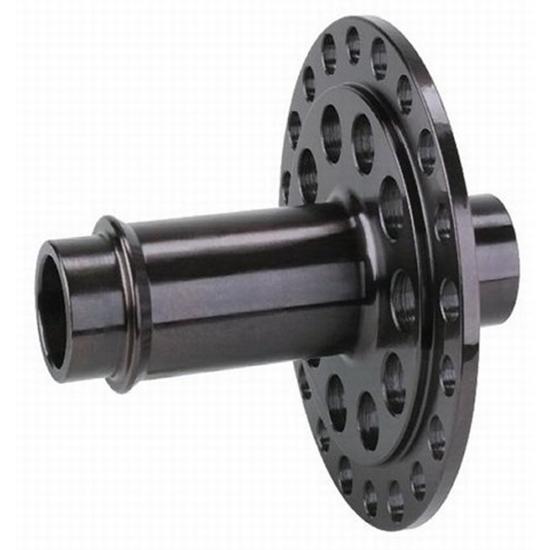

Lightweight and standard steel Ford 9" full spools are available with 28 or 31 splines. Standard steel spool weighs 8.9 lbs. The lightweight steel spool, is 6 lbs.
Lightweight & durableConforms to steel components rulesCNC-machined from 4140 steel forgings
Our completely NEW 9" Ford third members start with an aftermarket heavy-duty cast iron carrier featuring a new cast ironDaytona pinion support and larger bearings. Then we use your choice of a standard (8.9 lbs.), lite (6 lbs.)or megalite (5.55 lbs.)steel full spool.
NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool.The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.
91081005Tube O.D.1.000"Upper Mount O.D.2.000"Material Thickness0.090"Material TypeSteelFinishZincSold in QuantityEachNotesBolt hole dimension measured across the front is 10-5/16". From extended centerline from top bolt holes down to the single bolt hole is 6-5/8".
ThePowertrax Traction Systemis the latest design in traction adding differential technology. It combines the smooth operation of a limited-slip differential, with the traction performance of a locking differential. A precise synchronization mechanism eliminates the ratcheting sounds typical of other locking differentials. Special gear and spring design reduce the backlash and therefore driveline windup. An ultra-strength alloy material is used throughout, which is 67% stronger than titanium.
