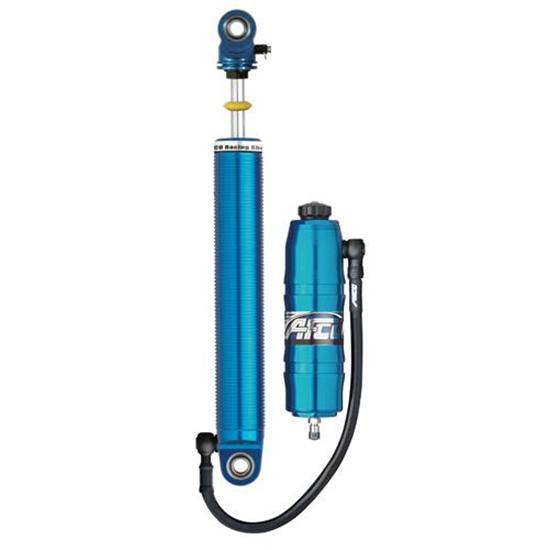

AFCO 16 Series Double Adjustable shocks are the newest and hottest small body on the market. For wing and non-wing Sprint Cars. Has a 1.68" O.D. Threaded Body Extremely low rod pressure for best performance on lightweight cars 50 psi = only 4 lbs. rod pressure Optional extra-long hose and adjuster cable available for "on-the-fly" cockpit adjustments Stroke: 9" Compressed Length: 14.59" Extended Length: 23.69" Note: If you need a longer hose (4 ft.), please call us at 1-800-979-0122 to order. Dirt Sprint Wing and Non-Wing Gas Shock Chart (Link)
AFCO 16 Series Double Adjustable shocks are the newest and hottest small body on the market. For wing and non-wing Sprint Cars. Has a 1.68" O.D. Threaded Body Extremely low rod pressure for best performance on lightweight cars 50 psi = only 4 lbs. rod pressure Optional extra-long hose and adjuster cable available for "on-the-fly" cockpit adjustments Stroke: 9" Compressed Length: 14.59" Extended Length: 23.69" Note: If you need a longer hose (4 ft.), please call us at 1-800-979-0122 to order.
Shock technology just got smarter with all new AFCO Silver Series Gas Shocks! Double Adjustable Latest Technology, including SMART Valving DURox Chrome Shaft Owner Serviceable Worldwide Service Centers Second to None Technical Support Compressed Length: 14.38" Extended Length: 23.34" Late Model 4-Link Gas Shock Chart (Link)
AFCO Aluminum Body Rebound Adjustable Shocks with a 9" Stroke Compressed Length: 15.18" Extended Length: 24.10"
2.175” OD. 9” Stroke: Compressed Length 15.20” Extended Length 24.20” Includes coilover hardware kit.
AFCO innovation provides racers with more options. The M2 Single adjustable shock brings the race proven advantages of the M2 Mono-Tube Shock to a non-canister single adjustable design. Simply put, AFCO's M2 Single gives your racecar more sensitivity, more adjustment range, more versatility, and more traction! Swiv-Align floating spring seat removes nearly all side forces from the shaft and makes the M2's damping smoother and more consistent than other shocks without any added expense Easy to use, shaft mounted, detented and sealed adjuster knob for quick changes Easy to fill ...
A gas cell Hypershock™ with a chrome plated steel body. This shock will not fade, no matter how long the race. It can be run in any position, including upside down. This is desireable because it reduces unsprung weight by having only the shaft move with the suspension (instead of the shaft standing still and the whole shock body moving). Accepts coil-over mount kits shown on this page. QA1 55 Series (previously Carrera Shocks 31 Series) Compressed Length: 14.5" Extended Length: 23.5" 1-3/8" diameter piston 9/16" hard chrome plated, polished piston ...
AFCO 62 Silver Series Monotube Shock Late Model/Crate Late Model application 4-Link Left Rear Front/Traction Shock Double Adjustable Latest Technology, Including SMART Valving DURox Chrome Shaft Owner Serviceable Worldwide Service Centers Compressed Length: 14.38" Extended Length: 23.34" Late Model 4-Link Gas Shock Chart (Link)
Aluminum threaded large body shock Rebound adjustable Schrader valve/floating piston design for gas pressure Late Model application Compressed Length: 15.40" Extended Length: 23.35" Dirt Sprint Wing and Non-Wing Gas Shock Chart (Link)
