9 Inch Ford Rear End Overhaul Kit

Specs
Sold in Quantity:
Kit
9 Inch Ford Rear End Overhaul Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

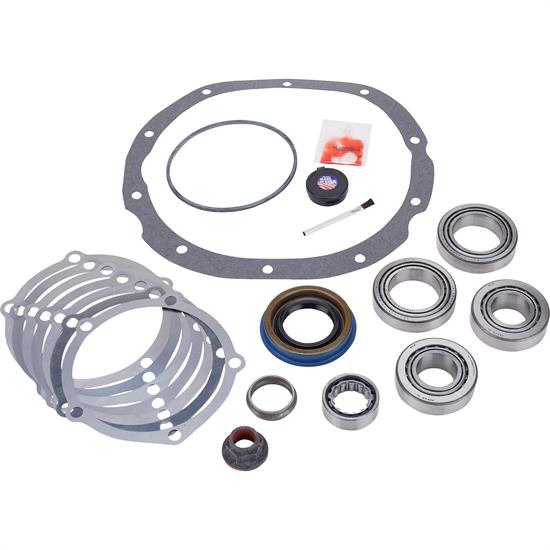

This 9" Ford overhaul kit includes: pinion pilot, pinion shaft, pinion nut, pinion seal, gasket, shims, crush collar, sealant, gear marking grease, brush and Loctite. Ring gear bolts not included.

NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

9" Ford Carrier Bearing Chart (GIF)  - Double check your bearing p/n.

Notes

  • 9190950-28
    • Includes carrier bearing # LM501349
    • 28-spline axles DO NOT guarantee that the LM501349 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly.
  • 9190950-31
    • Includes carrier bearing # LM102949
    • 31-spline axles DO NOT guarantee that the LM102949 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly.
  • 9190950-31S
    • Carrier bearing # LM603049 (CONE) and LM603011 (CUP) TM88048 (CONE)
    • Outer pinion bearing TM88010 (CUP)
    • Large "Daytona" inner pinion bearing  HM89443 (CONE)
    • Race # HM89410 (CUP)
      • LM603049 CONE ID:  1.781"
      • LM603011 CUP OD:  3.063"
      • TM88048 CONE ID:  1.308"
      • TM88010 CUP OD:  2.687"
      • HM89443 CONE ID:  1.308"
      • HM89410 CUP OD:  3.00"

Customer Reviews

Rated 4.8 out of 5 by 9 reviewers.
RATING BREAKDOWN
9 reviews
5 Stars
7
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

JEFF
Verified Purchaser
Verified Reviewer
OMAHA

nice produck for the money

June 29, 2015
set up easy
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Stan the man
Verified Purchaser
Verified Reviewer
Oologah,ok

Excellent parts and great price. Makes my job easier.

June 23, 2015
I have used this product for years and have never heard a complaint from any customer. Having a complete kit like this is the only way to go. If it had the option for ring gear bolts for posi units then I would have everything in one box.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Okie428
Verified Purchaser
Edmond, OK, USA

Good 9" Kit

March 26, 2015
Good kit for a Overhaul or new Gear set install. Pay attention to Your carrier bearing numbers to get the right kit.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chucks210
Lincoln, NE, USA

Nice Kit

June 12, 2014
Nice kit. Used it to rebuild a 9" for demo derby duty. Included everything we needed. Bought the 31-spline kit since we upgraded to a spool at the same time.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

oberle92
Verified Purchaser

very good

May 13, 2014
Had all the parts I needed very nice kit. I would use this kit again very affordable and good parts
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mike65
Long Island, New York, USA

Great item

September 03, 2013
used this kit many times Has all needed parts in one package Price is also a plus
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fatbacktires
Dallas NC

I will buy this again!

September 06, 2012
Had everything needed to do the job, everything fit perfect.
Pros:
  • Lightweight
  • Easy To Install
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

SpeedyC
Verified Purchaser
Girard, KS

I will use again

April 20, 2012
Perfect for gear changes and overhauls. It would be nice if they included a spacer/shim kit rather than the crush sleeve. Well designed kit provides everything you need.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Verified Purchaser
Sugar Hill, GA

Nice kit

September 18, 2010
Quality kit with Koyo bearings (Japan) not cheap Chinese stuff.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Why does the 31s kit come with pinion bearings for a daytona pinion support but only has a short crush sleeve that is unusable in a daytona support? I needed an overhaul kit with 3.063 side bearing od with standard pinion bearings, you don' offer that so I bought the 31s kit and went and and got your daytona aluminum pinion support. The crush collar is too short so i've got to find a spacer kit somewhere.

KS23
September 11, 2014

Why does the 31s kit come with pinion bearings for a daytona pinion support but only has a short crush sleeve that is unusable in a daytona support? I needed an overhaul kit with 3.063 side bearing od with standard pinion bearings, you don' offer that so I bought the 31s kit and went and and got your daytona aluminum pinion support. The crush collar is too short so i've got to find a spacer kit somewhere.

Answers

September 11, 2014
EricM
You will need to use a solid pinion spacer and shims for use with the Daytona pinion support which is part number 9190921.
1 answers

I want to replace the seals and bearings in my 69 mustang mach 1. It has the 9" rear end, so I am assuming this kit will work. I see this comes with a different size carrier bearing. Which one is appropriate for my vehicle? 28, 31 or 31s.

Larry
Fortson, GA
February 13, 2012

I want to replace the seals and bearings in my 69 mustang mach 1. It has the 9" rear end, so I am assuming this kit will work. I see this comes with a different size carrier bearing. Which one is appropriate for my vehicle? 28, 31 or 31s.

Answers

February 15, 2012
John
Part number 9190950 You need to verify the bearing specifications in your housing for kit to order. Normally the 31 or 31s kits fits most applications but below are the bearing numbers and dimensions for match up. * 9190950-28 o Includes carrier bearing # LM501349 o 28-spline axles DO NOT guarantee that the LM501349 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly. * 9190950-31 o Includes carrier bearing # LM102949 o 31-spline axles DO NOT guarantee that the LM102949 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly. * 9190950-31S o Carrier bearing # LM603049 (CONE) and LM603011 (CUP) TM88048 (CONE) o Outer pinion bearing TM88010 (CUP) o Large "Daytona" inner pinion bearing HM89443 (CONE) o Race # HM89410 (CUP) + LM603049 CONE ID: 1.781" + LM603011 CUP OD: 3.063" + TM88048 CONE ID: 1.308" + TM88010 CUP OD: 2.687" + HM89443 CONE ID: 1.308" + HM89410 CUP OD: 3.00"
1 answers

The "s" on the end of the part number, does it mean it's for a spool? I've read the side note about the full spool uses the 31 spline kit, just wondering the difference?

Baton Rouge, LA
August 20, 2011

The "s" on the end of the part number, does it mean it's for a spool? I've read the side note about the full spool uses the 31 spline kit, just wondering the difference?

Answers

August 22, 2011
Jason
The difference is in the size of carrier bearings. The 31S uses bearinf #LM603049 this is 3.063" od. The 31 kit has a bearing #LM102949 that is 2.879" od. All full spools use part #9190950-31
Page 1 of 1
