429-460 Ford Weld-In Motor Mounts

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Sold in Quantity:
Pair
Hole Diameter:
1.50
Mounting Plate Length:
4.875
Mounting Plate Width:
5.50
Garage Sale:
No

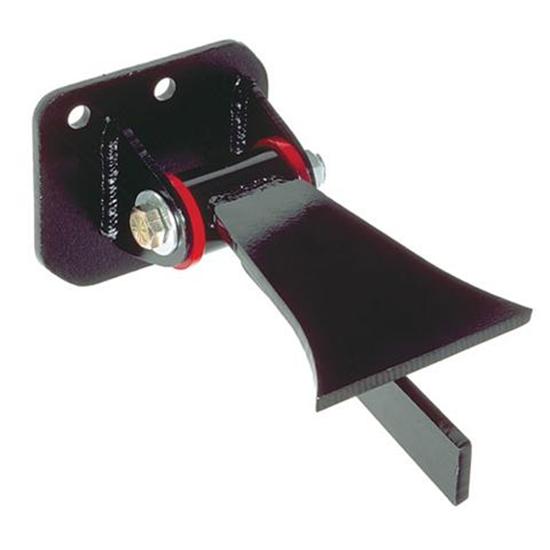

429-460 Ford Weld-In Motor Mounts

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These 429-460 Ford motor mount kits allow you to put that 'little bit different' engine in your project. They have urethane bushings and include both the engine and frame brackets. Frame brackets must be cut to fit and welded to frame.

Specs

  • 3-bolt engine flange measures 4-7/8" x 5-1/2"
  • Tab extends 1-3/4" center of mounting hole
  • Upper bolt holes are 2" center to center and vertical spacing is 3-5/16" center to center
  • Frame mount is 6-1/2" from center of bushing sleeve to end of weld on tab
  • Lower weld on tab extends an additional 1-1/4" further than the top tab
  • Bushing outside diameter is 1-1/2" and bushing length is 3"

Customer Reviews

Rated 4.7 out of 5 by 6 reviewers.
RATING BREAKDOWN
6 reviews
5 Stars
5
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

JohnnyUnitas
Verified Purchaser
Racine, WI, USA

Just what I needed for my T bird. Nice p

July 16, 2014
Bought these on Ebay. Received 3 days later. Whould buy from speedway again
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

buffaloboldt
Saskatchewan, Canada

works awesome!

September 19, 2013
I used this mount to install a 460 in a 54 chevy. Lots of material to work with and it fits great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Josh
Anchorage, Alaska

Not great Not horrible

August 04, 2011
I bought these instead of making my own which may have been a mistake. The product does seem to be well made. However I had a few problems. It comes with all the bolts you need but the bolts they send to attach it to the engine block are too long and bottom out in the block. So if you don't have the original bolts you will have to run to the hardware store. Sadly I had to actually move my engine from the desired location to make these mounts work. Yes they are made to cut and fit however they were too short on one side for my application.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

scott's model t
Verified Purchaser
goshen ohio

very nice product

February 12, 2011
easy to install easily modified to fit custom 2x3 frame
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Animal
Ozark, MO.

First class as always

August 27, 2010
I,d been looking for ways to mount a 460 in my 27 T Deluxe chassis. Had built my own but they were tooooo bulky. I found these mounts to be just what I needed,also used a six inch drop tranny mount, from Speedway of course. Speedy, this A coupe is going to be soooo sweet. I suspect it to be over 80% Speedway parts by the time it's completed. Model A coupe sitting on a Deluxe 27 T frame Powered by a punched out 460. [...] Sincerly, John Custer
Pros:
  • Looks good saved time
  • With limited fitting
  • Perfect part for my needs
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Denny B
Shady Grove PA

460 Motor Mounts

January 22, 2010
I was suprised to find these mounts. These are the only ones I've found for 460 powered Streetrods. I was making my own, then I quit after finding them online surfing. Top Quality, Reasonable price! They're long enough to fit in about any situation "trim to fit"
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

1 answers

What is the best engine mount for a 460 Ford motor to use in a 54 Ford F100? Do you give dimensions on where exactly to put the motor mounts when you weld them to the frame? I just purchased and installed the Mustang II suspension in my 54 and the instructions were spot on for placement. Is this the same for the motor mounts?

CAPogue76
Davenport, FL, USA
April 10, 2013

What is the best engine mount for a 460 Ford motor to use in a 54 Ford F100? Do you give dimensions on where exactly to put the motor mounts when you weld them to the frame? I just purchased and installed the Mustang II suspension in my 54 and the instructions were spot on for placement. Is this the same for the motor mounts?

Answers

April 11, 2013
Jason
Motor mount number 7204503 was designed for a C channel frame and could be modified to work on a Mustang II in your 54 Ford pickup. The frame portion would require the modification for a weld in application. The motor mount location would be upto builder.
1 answers

is this item come as a pair or are they prurchased as individuals?

October 22, 2011

is this item come as a pair or are they prurchased as individuals?

Answers

October 24, 2011
Jason
Part number 7204503 is sold as a pair
1 answers

will this mount hold a 460 big block ford with c6 in a 85 chevy s10 frame thats been bagged? (air ride) The mounts i have now put the block to close to the upper A arms. Looking for a mount that can give me some hight over upper A arms and give it that ol

King-Of-Cars
Sacramento Ca.
May 02, 2011

will this mount hold a 460 big block ford with c6 in a 85 chevy s10 frame thats been bagged? (air ride) The mounts i have now put the block to close to the upper A arms. Looking for a mount that can give me some hight over upper A arms and give it that ol

Answers

May 04, 2011
Craig
These motor mounts are a universal piece and are not made to directly fit any one application. I can give you the dimensions of the motor mount and you can determine if it will work for your particular application. 3-bolt engine flange measures 4-7/8" x 5-1/2" Tab extends 1-3/4" center of mounting hole Upper bolt holes are 2" center to center and vertical spacing is 3-5/16" center to center Frame mount is 6-1/2" from center of bushing sleeve to end of weld on tab Lower weld on tab extends an additional 1-1/4" further than the top tab Bushing outside diameter is 1-1/2" and bushing length is 3"
1 answers

How do I install these motor mounts on a Heidts super ride 2 front suspension ?

pat
Elton , MD
May 02, 2015

How do I install these motor mounts on a Heidts super ride 2 front suspension ?

Answers

May 06, 2015
John
Expert
Motor mount kit number 7204503 is designed to work in a stock C channel frame and with the Mustang II cross member installed it may not work since the IFS is taking it's place. If the Heidts Super Ride goes under the frame and if the frame isn't boxed or even if it is you simply cut to the length you need and weld in place. You will need to modify or remake the frame portion of the mount to fit your needs and we apologize for any confusion.
1 answers

I have a 76 460 from an ltd and want to put it in a 58 f100, will these motor mounts do the job?

Cori
May 15, 2015

I have a 76 460 from an ltd and want to put it in a 58 f100, will these motor mounts do the job?

Answers

May 18, 2015
John
Expert
Mount kit 7204503 will bolt to the block of your 460 and are intended for the frame mount portion to be trimmed to fit between your frame rails. Depending on your 58 frame if it is open in the area of the 460 mounts it is a simple trim to fit and weld to your C channel frame.
1 answers

You have said these work with "c" channel frames, mine is boxed for my 1937 ford. Which 460 motor mounts will work with a boxed 1937 ford passenger car frame with a mustang II ifs crossmember setup? Thanks

1937ford
July 01, 2015

You have said these work with "c" channel frames, mine is boxed for my 1937 ford. Which 460 motor mounts will work with a boxed 1937 ford passenger car frame with a mustang II ifs crossmember setup? Thanks

Answers

July 01, 2015
Eric
Expert
These mounts can work on a boxed frame as well. You will simply cut off the bottom gusset that hangs out past the top flat part of the frame mount.
Page 1 of 1
