Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. Made of forged vanadium steel and real needle bearing joints. 5-5/8" overall length. Overall length is 5-1/2” O.D. at ends is 1.12” O.D. in the middle is 1.476” O.D. at caps is 1.350” O.D. at cap retainer screws is 1.545” Length of center section is 2-3/4” Spline Size (Link) Steering Box/Rack/Spline Chart (Link) Note: GM ...
Don't jeopardize your safety with inferior quality Mustang II power rack U joints. Speedway offers only the finest steering U-joints made by Sweet Manufacturing. Full compliment bearings Forged Vanadium steel yokes and u-joint Highest quality for racing or street Features needle bearing u-joints 3/4"-36 Spline Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link) Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. Full compliment bearings Forged Vanadium steel yokes and u-joint Highest quality for racing or street Features needle bearing u-joints 5/8"-36 Spline Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link) Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. They feature a double D end to make use of the double D shaft. Full compliment bearings Forged Vanadium steel yokes and u-joint Highest quality for racing or street Features needle bearing u-joints 3/4"-36 Spline Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link) Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO ...

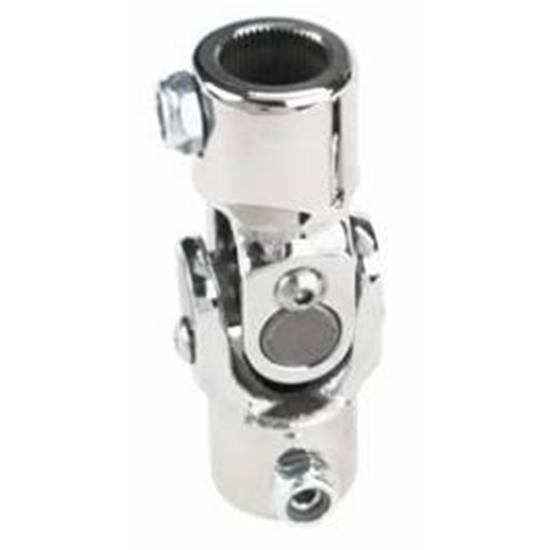

Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. They feature a double D end to make use of the double D shaft. Full compliment bearings Forged Vanadium steel yokes and u-joint Highest quality for racing or street Features needle bearing u-joints 13/16"-36 Spline Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link) Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". ...
These polished stainless steel steering U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. The OD is 1.650" (41.90mm) 3-3/4" in total length Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link)
Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. This Mustang II power rack U joint is made of forged vanadium steel and real needle bearing joints. 5-5/8" overall length. Spline Size (Link) Steering Box/Rack/Spline Chart (Link) Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
This u-joint fits 3/4" 48 spline on one end and 3/4" 36 spline on the other end.Actual photo!NO WARRANTY NO RETURNS ON GARAGE SALE ITEMS

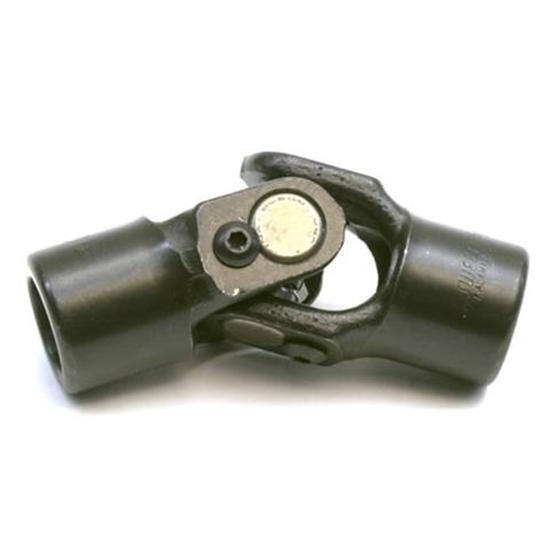

Forged steel 3/4" 36-spline to 3/4" round weld-on steering U-joint. The overall length of this item is 3-3/4". Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link)
Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering u-joints have a 3/4" round weld-on end. Full compliment bearings Forged Vanadium steel yokes and u-joint Highest quality for racing or street Features needle bearing u-joints 13/16"-36 Spline Steering U-Joints and Couplers Application Chart (GIF) Steering Box/Rack/Spline Chart (Link) Spline Size (Link) Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT ...
