3-Bolt Steering Wheel Adapter, GM Applications
Click image to enlarge
Q & A (2)
What's in the Box

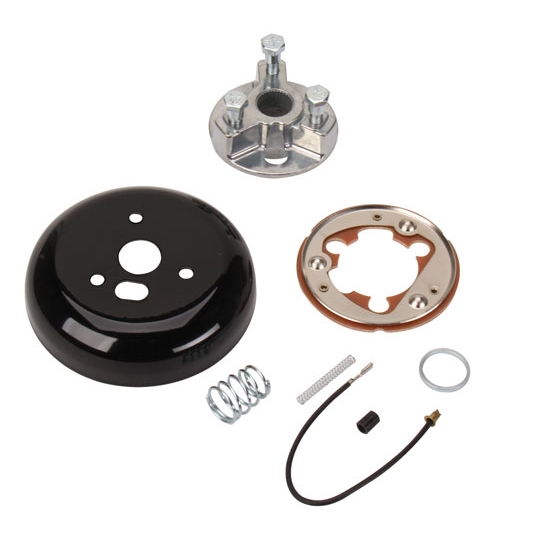

This steering wheel adapter allows you to put an aftermarket 3-bolt steering wheel on a 1969-1994 GM, Ididit or Flaming River non-telescopic steering column. Horn button not included. Includes black metal cover, horn button spring, spacer ring, plunger spring, lead wire and three mounting bolts.
- 2-3/8" I.D. holes for the horn plunger lead wire.
- Standard 3-bolt pattern for custom steering wheels in 1/4" fine thread.
- Horn button isolator plate is 2-15/16" O.D.
Note: When using this adapter, if the column has not previously had a steering wheel mounted, # 910-64049 will also be required.
91032481 Instructions (PDF)
