Street Rod Steering Column Drop Mount, 1-3/4 Inch Hole, 3-1/2 Inch Drop

SAME DAY SHIPPING! Order within the next 6 hours 24 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Polished
Inside Diameter:
1.75
Drop:
3.50
Garage Sale:
No
Street Rod Steering Column Drop Mount, 1-3/4 Inch Hole, 3-1/2 Inch DropStreet Rod Steering Column Drop Mount, 1-3/4 Inch Hole, 3-1/2 Inch Drop
Street Rod Steering Column Drop Mount, 1-3/4 Inch Hole, 3-1/2 Inch Drop

Click image to enlarge

Speeday Motors Logo
X
Street Rod Steering Column Drop Mount, 1-3/4 Inch Hole, 3-1/2 Inch Drop

Details

Reviews

Q & A

What's in the Box

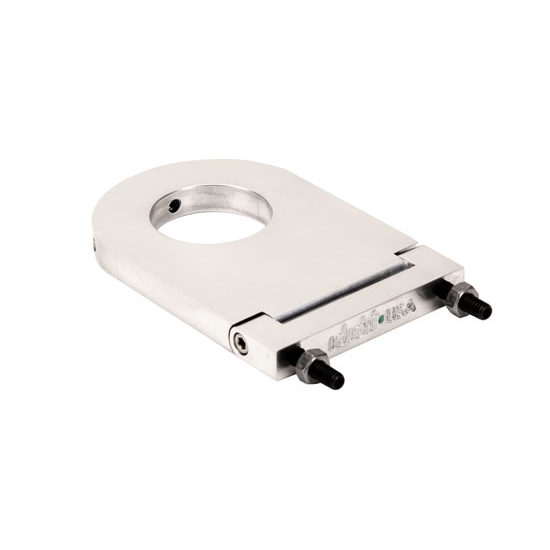

These billet polished aluminum column drops fit Speedway Nostalgia columns, Hot Rod columns, our stainless steel columns, or your custom 1-3/4" O.D. column. Mount hole spacing is 2-7/8". For these swinger style drops, the underdash nuts & bolts are included. Each swinger drop has two screws on either side that when unscrewed will detach the lower half of the mount to slide your column through.  A hinge at the upper end allows multiple choices of mounting angles.

  • 1-3/4 Inch diameter hole
  • 3-1/2 Inch drop
  • Mount hole spacing is 2-7/8".
  • Two screws on either side will detach to slide your column through
  • Polished aluminum construction
  • Nuts & bolts are included

Note: Column drop lengths are measured from the centerline of the column to the column drop mount surface.
