Western Chassis 821014 1982-2002 S10 Dropped Rear Leaf Springs, 4 Inch

SAME DAY SHIPPING! Order within the next 5 hours 9 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Height:
2.50
Color:
Black
Sold in Quantity:
Pair
Finish:
Painted
Number of Leafs:
3
Spring Height (Underside):
4.00
Length Eye to Eye:
53.13
MFG. Part #:
821014
Spring Eye I.D.:
0.560
Garage Sale:
No
Leaf Spring Eye Type:
Berlin Eye
Spring Location:
Rear

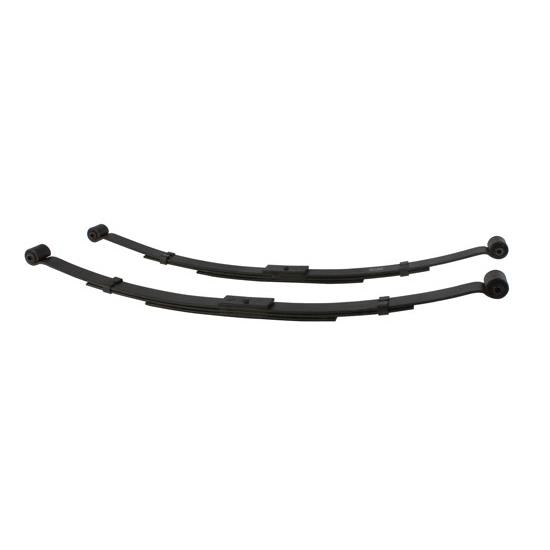

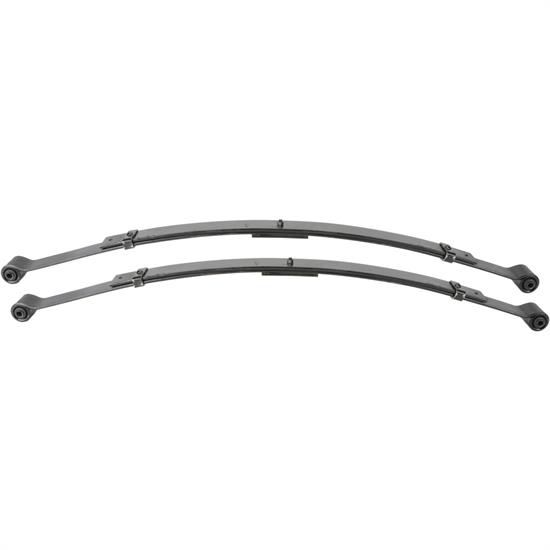

Western Chassis 821014 1982-2002 S10 Dropped Rear Leaf Springs, 4 Inch

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

  • 3 leaf assembly
  • Designed for a smooth ride
  • 4” lowering height
  • Complete with OEM style “Silent Block” bushings
  • Quick and easy install

Application

Applicable only to the 2 wheel drive pickup chassis application as this will not work with the 2 wheel drive S10/S15 Blazer chassis.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What am I missing? When I mounted a pair of your 4" low leaf springs on my early S10 chassis with 2" lowering blocks the rear spring shackle rests against the frame and does not allow for travel, with the lowering blocks removed it only gives about 1/2" of clearence. I am also using your 4" to 6" rear drop shock absorbers. Neither set up affords a "smooth" ride. Help please...

Grumpy
Clarksville, AR 72830, USA
October 28, 2012

What am I missing? When I mounted a pair of your 4" low leaf springs on my early S10 chassis with 2" lowering blocks the rear spring shackle rests against the frame and does not allow for travel, with the lowering blocks removed it only gives about 1/2" of clearence. I am also using your 4" to 6" rear drop shock absorbers. Neither set up affords a "smooth" ride. Help please...

Answers

October 29, 2012
Jason
The shackles should not move enough to allow them to bottom out on the frame rail. If this happens the spring length is incorrect or you have a very heavy load in the vehicle. If you are referring to the housing to the frame when a 6 inch drop is desired you need to “C” notch the frame using kit number 91752118. If this has already been done and the length of the spring is the concerning factor let us know and we will gladly verify the spring length offered for the S-10 to make sure you received the correct springs.
