Western Chassis 821013 1982-2002 S10 Dropped Rear Leaf Springs, 3 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Number of Leafs:
3
Color:
Black
Leaf Spring Eye Type:
Berlin Eye
Spring Location:
Rear
MFG. Part #:
821013
Garage Sale:
No
Overall Width:
2.50
Spring Height (Underside):
4.130
Length Eye to Eye:
53.00
Drop:
3.00
Spring Eye I.D.:
0.570

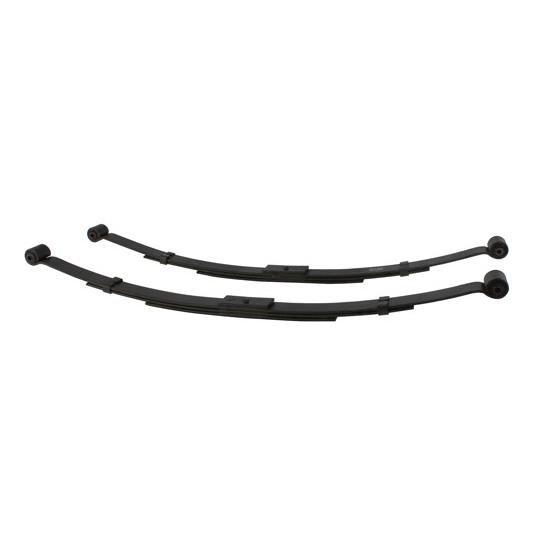

Western Chassis 821013 1982-2002 S10 Dropped Rear Leaf Springs, 3 Inch

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

  • 3 leaf assembly
  • Designed for a smooth ride
  • 3” lowering height
  • Complete with OEM style “Silent Block” bushings
  • Quick and easy install

Application

Applicable only to the 2 wheel drive pickup chassis as it will not work with the 2 wheel drive S10/S15 Blazer chassis.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

looking into the lowered leaf springs,lowered shocks, and lowered coil springs for an s10 truck. Are there any drawbacks to installing a complete lowering system? Thank you.

December 05, 2011

looking into the lowered leaf springs,lowered shocks, and lowered coil springs for an s10 truck. Are there any drawbacks to installing a complete lowering system? Thank you.

Answers

December 06, 2011
John
Part number 91782113+ The spring rate normally increases to enable supporting the same amount of weight so a firmer ride is the end result. Shock length needs to match ride height to avoid bottoming out the shock and resulted shock damage. Load carrying diminishes with lowered vehicles and to avoid bottoming out on the frame you may have to C notch the frame with part number 91752118.
1 answers

Why won't these 3 inch drop leaf springs work on the 2WD Blazer?

K-mack
Eatonville Washington
July 08, 2015

Why won't these 3 inch drop leaf springs work on the 2WD Blazer?

Answers

July 08, 2015
Eric
Expert
The S10 Blazer has a different width and heavier duty spring than the pickups.
