1982-04 Chevy S-10 Pickup Drop Spindles

SAME DAY SHIPPING! Order within the next 9 hours 25 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Pair
Drop:
2.00
Taper:
10
Garage Sale:
No

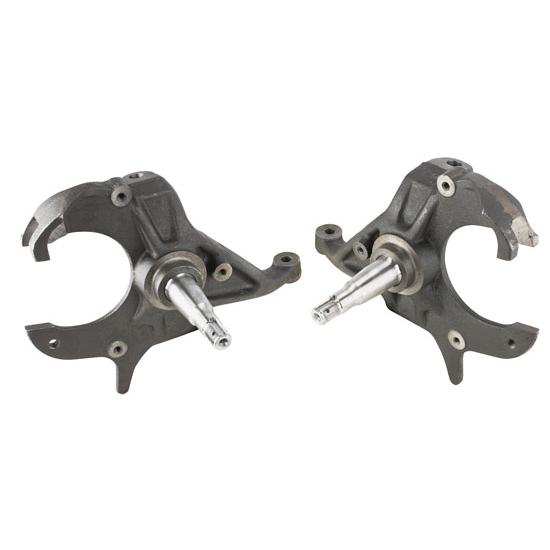

1982-04 Chevy S-10 Pickup Drop Spindles

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

More and more people are turning to the Chevy S-10 pickup chassis as a building block for their hot rod. But it seems in most applications the front sits too high and doesn't quite look right. These 2" drop spindles fit the '82-'04 S-10 pickup two wheel drive front suspension and accept the original rotors and calipers.

Note:  This spindle utilizes a taper for the tie rod end that differs from the S10 spindle application and will require the purchase and use of a 1964-70 GM outer tie rod end # 910-32232

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Fluffy
Verified Purchaser
Oklahoma

fits really nice

December 16, 2011
Looks nicely made. went together smooth. only thing i would change is to move the steering knuckles inward an inch or so. help wheel clearance. Nice product.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mo @ LA Rides
Verified Purchaser
Lepanto Ar.

drop spindles for my s-10

October 16, 2010
easy to install, good fit, got the right look i was looking for.
Pros:
  • Installed myself
  • QUALITY PRODUCT
  • Did the job
  • Great Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 8 answers

1 answers

Will these fit on a 1984 Camaro stock front suspension?

Bman
December 17, 2014

Will these fit on a 1984 Camaro stock front suspension?

Answers

December 17, 2014
EricM
No these spindles will not fit your 1984 Camaro. Sorry we do not offer spindles for your application.
1 answers

will these work with stock 14 inch s10 steelies?

tyjohn
May 08, 2014

will these work with stock 14 inch s10 steelies?

Answers

May 09, 2014
EricM
Yes these dropped spindles will accept the stock wheels. If your 14” wheels came off a standard disc brake S10 then they would fit.
1 answers

Dual piston? Will these fit a 04 Blazer with dual piston calipers?

Switchback
PA
January 11, 2014

Dual piston? Will these fit a 04 Blazer with dual piston calipers?

Answers

January 13, 2014
EricM
These spindles are only for the two wheel drive S10/S15 pickup and up thru 97 on the Blazer and Jimmy 2 wheel drive. Sorry I do not have the correct drop spindles for your 2004 Blazer.
1 answers

2" Drop Spindle ? Hello when using these 2" drop spindles will my stock shocks on my 1991 S-10 still work? Thank You

Hawkeye
Knoxville, IA 50138, USA
November 24, 2013

2" Drop Spindle ? Hello when using these 2" drop spindles will my stock shocks on my 1991 S-10 still work? Thank You

Answers

November 25, 2013
EricM
Yes your stock shocks will work fine when using these drop spindles.
1 answers

what is the dimensions and the ball joint taper? What is the dimensional specs as far as from upper to lower ball joint and what taper are the upper and lower ball joints needed for the spindles?

Tatertodd
June 27, 2013

what is the dimensions and the ball joint taper? What is the dimensional specs as far as from upper to lower ball joint and what taper are the upper and lower ball joints needed for the spindles?

Answers

June 28, 2013
Jason
The S10 spindles number 91034915 are 7 19/32” from top to bottom where the ball joints go in. The taper is standard GM taper of 10 degrees as compared to Ford and Mopar at 7 degrees.
1 answers

i want no it is real the drop spindle push the wheels outside about 1/2" thank s

serge
montreal quebec canada
May 29, 2011

i want no it is real the drop spindle push the wheels outside about 1/2" thank s

Answers

May 30, 2011
Tim
Hello, and thank you for your interest in this set of spindles. These spindles will not change the track width on your S-10. They simply change the spindle location by 2 inches vertically.
1 answers

Will these fit a '79 Chevy Caprice front-end?

Riverton, Wyoming
May 21, 2011

Will these fit a '79 Chevy Caprice front-end?

Answers

June 24, 2011
John
These spindles are specific to the ’82-04 S10 pickup and may work on some of the midsize metric chassis cars such as the Monte Carlo. They will NOT work on the full size GM cars and for that application you may want to research Bell Tech for the dropped spindles for your application.
1 answers

Are these made of ductile iron?

tsarge
Vermont
January 04, 2011

Are these made of ductile iron?

Answers

January 06, 2011
Ken
The S-10 drop spindles are made of 2 components. The spindle stub is a machined, high-grade steel part. The upright and caliper bracket portion is a cast steel component. This combination yields a strong, light, economical component.
Page 1 of 1
