1970-81 Camaro Upper Racing Control A-Arm

Specs
Sold in Quantity:
Each
Overall Length:
-
Mounting Bolt Center to Center:
7.75
Control Arm Style:
Tubular

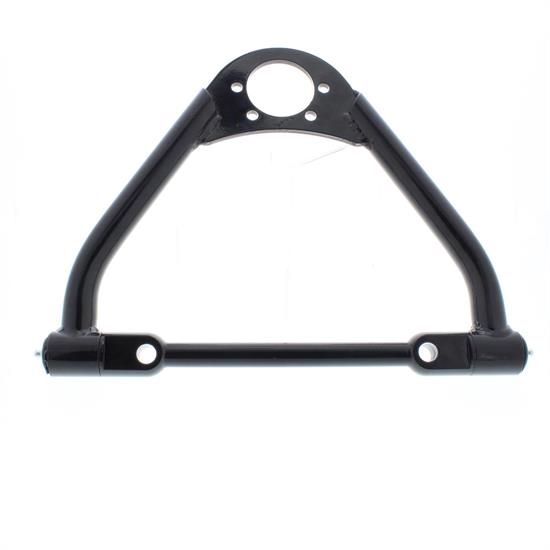

1970-81 Camaro Upper Racing Control A-Arm

Click image to enlarge

Details

Reviews (18)

Q & A (16)

What's in the Box

Info

This upper control arm for 1970-1981 Camaro is designed to be used with the stock mount. Available in 8", 8-1/4", 8-1/2", 8-3/4", 9", 9-1/4", 9-1/2". This control arm requires the use of a K6024-style ball joint, which is equivalent a 1963-’71 Chevy pickup style upper ball joint. It will have a 7 degree tapered stud and therefore, the stock Camaro spindle must be reamed to fit the pickup ball joint.

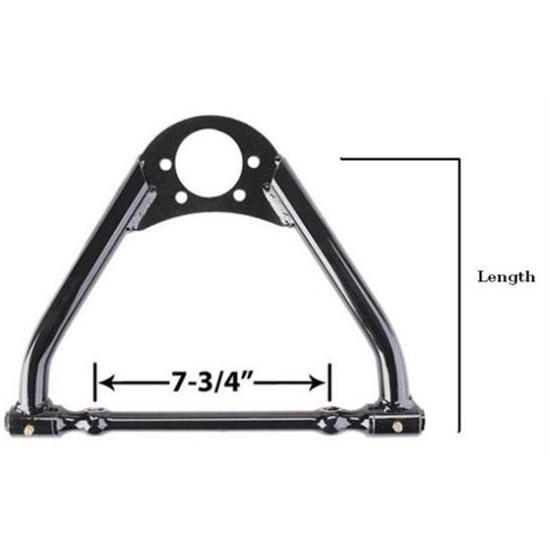

Cross shaft mount bolts center on center. Measures 7-3/4". The arms are symmetrical.

Note: This control arm does not use a stock Camaro ball joint, (all) of the ball joints that we offer require reaming stock spindle.

Note: Our "length" reference refers to the distance from the center of the ball joint to the centerline of the cross shaft. The "stock" length of a Camaro upper A-arm is 9-1/4".



Customer Reviews

Rated 4.3 out of 5 by 18 reviewers.
RATING BREAKDOWN
18 reviews
5 Stars
9
4 Stars
7
3 Stars
1
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Brenton
Verified Purchaser
Verified Reviewer
Wa

Could be stronger

July 18, 2016
These are nice for tuning in camber, eliminated all my shims. I just wish they were built heavier for street stock racing. I've bent a few up with only light contact with other cars that the stock one never would have bent.
Pros:
  • Camber Tuning
  • Stock Mounting
Cons:
  • Bends Easy When Hit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Racer Joe
Verified Purchaser
Eustis Florida

Those parts seem to be working just fine we ran on them twic

July 13, 2016
We use the part on a street stock asphalt car circle track
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Steve's Hot Rod Heaven
Verified Reviewer
Lincoln, Nebraska

Awesome Control Arm Saves A Lot Of Weight

April 17, 2016
Let's face it, the lighter the car, the faster it goes. The 910-34397 Tubular Upper Control Arm is a huge Bang For The Buck, the price is great, and they will save you 4 Pounds per side over Stock Upper Control Arms. They are available in 7 different lengths, for Various Front Suspension needs. They are for Race Applications, and do use a Heavy Duty, Larger Ball Joint, so if you're using Factory Stock Spindles, you will need to have them reamed to the proper taper.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

79Z28Dan
Verified Purchaser
Verified Reviewer
Starke, FL

Great Price Good Qualith

April 13, 2016
I am using this on a street application. The car is not finished yet but the fit was right on the money.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Brenton
Verified Reviewer
Shelton, WA

Good, but not perfect

February 14, 2016
These are a great option for my dirt street stock. Allows me to tune in the camber how I want. My only complaint after going through a few of these, is that the tubing is not strong enough. The bend a little too easy for my liking.
Pros:
  • Perfect Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Trever
Verified Purchaser
Greeley, co

Nice for the price.

January 07, 2016
Nice product, fast shipping although came scratched. Ball joints are larger so you need to buy an expensive remear.
Pros:
  • Good price
  • Nice Fit
Cons:
  • Ball Joints Are Not Stock
  • Small Scratches
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mac
Verified Purchaser
Russellville, AR

Perfect fit

December 20, 2015
Great fit and great price. I use them on my drag car.
Pros:
  • Good price
Cons:
  • Don't Make Lower Arms
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jerry
Verified Purchaser
Cooper, Tx

Good buy

October 15, 2015
Easy installation.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dawg28
Verified Purchaser
Oakville, WA

great effective and affordable product

September 30, 2015
Bought this A-arm to run on my '79 camaro dirt street stock race car. It's a great replacement to the oem a-arm and gives you the ability to create camber without a bunch of shims and leaves room for the headers to be mounted without taking the a-arm bolts loose. It's affordable and easier to find than oem. Only wish they made them available in longer lengths for the driver side.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

SB
Verified Purchaser
Verified Reviewer
Houston,tx

Good quality parts

September 12, 2015
Put these parts on a 50 chevy fleetline with a camaro clip. Fit perfect. Very happy with the quality and the customer service is excellent as usual. The only problem was they were on back order and it took a few weeks to get them. All in all, I couldn't be happier.
Pros:
  • Fit Perfect
  • High Quality
Cons:
  • Back Order
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

16 questions : 16 answers

1 answers

Where is the metal on metal pivot point? Near the ball or on the open end of the arm where it connects to the car? I am installing these on a 1971 Firebird

jeremyskis98
Pasco, WA, USA
March 09, 2015

Where is the metal on metal pivot point? Near the ball or on the open end of the arm where it connects to the car? I am installing these on a 1971 Firebird

Answers

March 09, 2015
EricM
The metal on metal pivot point is where the tubular portion pivots on the cross shaft of the control arm. There is a grease zerk at this location.
1 answers

What is the stock length of a 78 Camaro upper A-arm?

foxmathews
Ga
November 28, 2014

What is the stock length of a 78 Camaro upper A-arm?

Answers

November 28, 2014
EricM
The stock Camaro control arm length is 9 1/4"
1 answers

will these fit a 75 elcamino

MetalBobJaggedPants
7th level of heck
July 22, 2014

will these fit a 75 elcamino

Answers

July 23, 2014
EricM
Yes this will fit a 75 El Camino also. The ball joint is not the same as the stock one however and will require you to ream the spindle.
1 answers

Upper control arm street application How well will these upper control arms work on a street application? I'm building a 1981 Camaro both for street uses and an occasional paved circle track.

Donny4X
Golden, MO 65658, USA
June 06, 2014

Upper control arm street application How well will these upper control arms work on a street application? I'm building a 1981 Camaro both for street uses and an occasional paved circle track.

Answers

June 09, 2014
EricM
When used on a street car that sees some miles these will wear out quickly due to the pivot point being a steel on steel connection. There are no bushings to slow down the wear.
1 answers

Can I mount the ball joint under the a arm for more angle?

Quinno
January 29, 2014

Can I mount the ball joint under the a arm for more angle?

Answers

January 29, 2014
EricM
You can bolt the ball joint to the bottom side of the plate but you will not gain any control arm angle. The angle that you see will be slightly more but the only angle that will affect the suspension geometry is the angle from the pivot point of the ball joint to the center of the cross shaft of the control arm. The only way to get more angle and actually affect your roll center is to use a taller ball joint stud or move the control arm mount lower on the frame.
1 answers

Can these be used in a street application on a 1976 Nova?

metoo
March 03, 2013

Can these be used in a street application on a 1976 Nova?

Answers

March 05, 2013
Jason
This 1970-81 camaro a arm will bolt to the frame of your 76 Nova, however we do not recommend it for street use. It does not use the stock ball joint like your 76 Nova has. The ball joint that this a arm is designed for will require you to ream the taper in you spindle to fit the larger ball joint. Also these a arms are a steel on steel pivot and you will notice that they are somewhat noisy and transfer a lot of vibration into the car as compared to a typical street tubular control arm. Also due to the fact that they are steel on steel they will wear out and need to be replaced fairly frequently.
1 answers

with this A-arm am I limited to the chevy truck ball joint? Is this A-arm holding up on asphalt circle track? I run super stock class and we are being aloud to use stock tubular replacement upper A-Arms. I am running a 70 camaro. along with these A-arms I

land o lakes florida
August 11, 2011

with this A-arm am I limited to the chevy truck ball joint? Is this A-arm holding up on asphalt circle track? I run super stock class and we are being aloud to use stock tubular replacement upper A-Arms. I am running a 70 camaro. along with these A-arms I

Answers

August 12, 2011
Mike
These arms do hold up, but of course in a wreck or wall hit they will bend like anything else. We use a K6024 style ball joint that you have to ream your spindle with a 7 degree reamer to make fit correct.
1 answers

will this work on prostreet with big block that will lift front wheels off the ground do you think it would bend or crack under the weight thanks mel

mel
maryland
July 12, 2011

will this work on prostreet with big block that will lift front wheels off the ground do you think it would bend or crack under the weight thanks mel

Answers

July 13, 2011
Jason
We have never tested in your application but these are used on dirt circle track cars with no issues. The only concern in your application would be if front end slams down with weight of motor may bend or break part.
1 answers

can these be used on a 83' monte carlo

bigfish
newton nc
April 22, 2011

can these be used on a 83' monte carlo

Answers

April 26, 2011
Mike
This control arm is specific to the UNI-BODY Camaro car, we do keep a control arm Specific to your brand of car the G-BODY, I will leave you a part number to look at. 91034393
1 answers

Do I have to use the truck ball joint or can I use the stock camaro ball joint

Eric
Exeter, NH
July 23, 2015

Do I have to use the truck ball joint or can I use the stock camaro ball joint

Answers

July 23, 2015
Eric
Expert
This control arm will not accept the stock Camaro ball joint. The pickup ball joint will need to be used and your spindle reamed to fit it.
