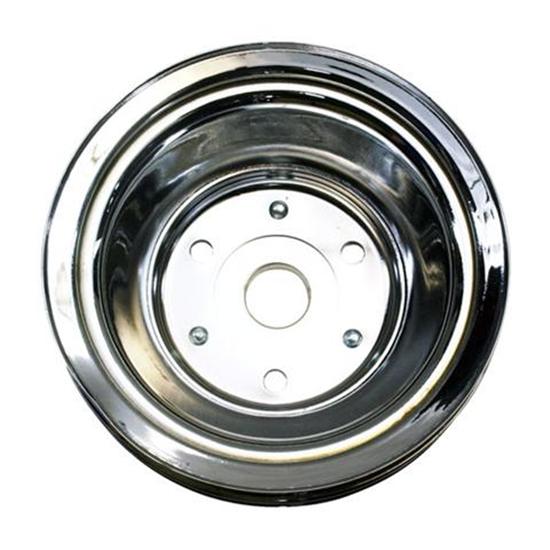

1969-85 Small Block Chevy Triple Groove Lower Pulley, Long Water Pump

Price:
$44.99
EA
In Stock
Item #:
91015429
Item Details:
Lower, 7-3/4"
1969-85 Small Block Chevy Triple Groove Lower Pulley, Long Water Pump
Click image to enlarge Click image to enlarge
  • 1969-85 Small Block Chevy Triple Groove Lower Pulley, Long Water Pump
  • 1969-85 Small Block Chevy Triple Groove Lower Pulley, Long Water Pump
No video at this time.


These lower pulleys for 1969-85 long water pumps feature a triple groove with a beautiful chrome finish.  They will work with 283-350 V8 small block Chevy engines.

  • Lower pulley
  • 1969-85 283-350 V8 small block Chevy engine
  • Long water pumps
  • Triple groove
  • 7-3/4" Diameter
  • Chrome plated finish



  • 91015429
    Overall Diameter
    7.750" (7 3/4")
    Mounted Length
    2.700"
    Inside Diameter
    1.120"
    Bolt Hole Pattern
    3 on 2.75
    Groove Count
    3
    Belt Width
    0.400"
    Belt Type
    V-Belt
    Material Type
    Steel
    Finish
    Chrome
    Sold in Quantity
    Each
    Notes
    Mounted length is from the face of the harmonic balancer towards the front of the vehicle.
