1968-81 GM TH350-TH400 Performance Torque Converter-2700-3000 Stall

Specs
Material Type:
Steel
Weight:
20.70
Sold in Quantity:
Each
Finish:
Painted
Diameter:
10.00
Hardware Included:
No
Torque Converter Bolt Circle:
10.75"
Notes
Use 3/8-16" bolts (not included).

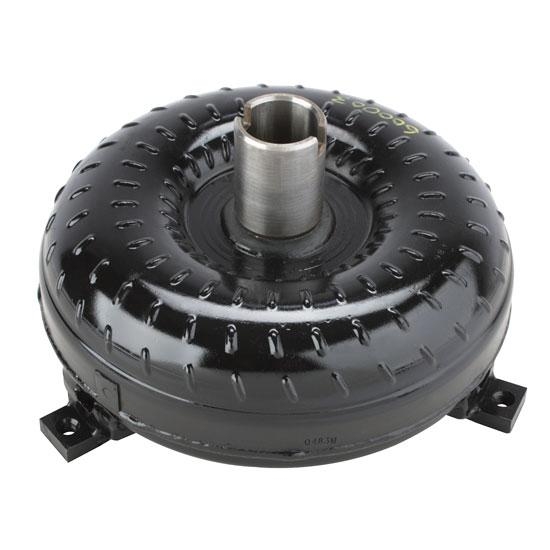

1968-81 GM TH350-TH400 Performance Torque Converter-2700-3000 Stall

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Races are won or lost at the starting line, so make sure you come out ahead with a High Performance Turbo 350-Turbo 400 Torque Converter. Whether you are looking for a street, strip, racing, or just plain heavy duty converter, these units will deliver lasting performance in your GM TH350 or TH400. With features like welded internals, oversized bearings, and hardened hubs, you can rest assured that these torque converters are of the highest quality possible. Made in the U.S.A.

  • For Turbo 350 and Turbo 400 transmission application
  • 2700-3000 stall - 10" diameter
  • 1968-'81 GM - 10-3/4" bolt circle

All stall ranges will vary depending on the engine setup, vehicle weight, and gear ratios.

Note: These converters will work with TH400 transmissions only if a dual bolt pattern flywheel is used.

Instructions (PDF)

To learn about how torque converters work and what to consider when purchasing one, check out our tech article. Choosing the Right Torque Converter.

Notes

  1. All advertised stall ranges will vary depending on your engine's setup and the weight of your vehicle. If your car is heavier than the recommendation, the stall speed will be higher. If the car is lighter, stall speed will be at a lower RPM.
  • Hardened Hub
    • Increased durability through the allowance of tighter tolerances and clean fit with transmission seals
  • Welded Impeller
    • Stronger pump fins to maintain stall speed over the life of the converter
  • Heavy-Duty Stators
    • Heat treated fins, sprag and race designed to efficiently handle high power loads
    • Stator fins are formed, not cut - cut stators can cause severe slippage
    • Rapidly dissipates heat - more power to the wheels
  • Welded Turbines
    • Pre-stressed before welding - more rigid construction
    • Heat treated splines
  • Aluminum Spacers
    • Incorporates aircraft quality aluminum spacers which handle higher loads than fiber spacers found in standard converters
  • Oversized Bearings
    • High strength stamped bearings absorb shock and extreme abuse better than standard waffle bearings
  • High Tech Welds
    • Positive-charged, military grade MIG welds for complete fusion of the metal

Item Details

Mildly modified S/B or B/B cars with high rise dual plane intake with 300-400 ft lbs torque, weighing 2900-3400 lbs, cam adv lift about .500" with 3.55-3.73 gears
These make use of 3/8-16" bolts.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

young79z
Verified Purchaser
Product Rating

converter

July 07, 2014
Quick service / delivery. Product worked / fit perfect.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jimm1
Verified Purchaser
ohio
Product Rating

works great so far

April 11, 2015
This converter is working very well so far, I haven't had any issue, I'm running a sbc 350 at about 500hp. I will be going to the track soon. So far good converter , no complaints.. I drive on the street quite a bit and I'm running a 3.42 gear without any issues..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
109601

Product Q&A

4 questions : 4 answers

1 answers

what are the spacers for?

turbo350
July 29, 2013

what are the spacers for?

Answers

July 30, 2013
Jason
After the transmission bolts are tight, check to see if the converter can turn freely. Push the converter into the transmission as far as possible. Using a ruler check the distance between the converter pad and the flywheel. Pull converter forward a minimum of 1/8", maximum of 3/16". Using flat washers remove any additional space between the converter and flywheel. This converter does not come with any spacers.
1 answers

My son has put a Chevy S/B in a 1964 Oldsmobile Cutlass. He's still going to use the Oldsmobile TH350 that was added to the car. The engine has an mid to uppper range Comp cam. 280 Duration, Duration @ .050 lift 230, Valve lift: .48 and Lobe Lift: .32. So

Steve
Wichita Falls, TX
March 30, 2011

My son has put a Chevy S/B in a 1964 Oldsmobile Cutlass. He's still going to use the Oldsmobile TH350 that was added to the car. The engine has an mid to uppper range Comp cam. 280 Duration, Duration @ .050 lift 230, Valve lift: .48 and Lobe Lift: .32. So

Answers

April 04, 2011
Bill
This Torque Converter p/n 109601, features a stall speed of about 2700 to 3000 in vehicles weighing about 2900-3400lbs and would work great in your Chevy powered Oldsmobile with the Comp Cams 280H grind cam. However, advertised stall ranges will vary depending on your engine's setup and the weight of your vehicle. If your car is heavier than the recommendation, the stall speed will be higher. If the car is lighter, stall speed will be at a lower RPM. This torque converter fits the TH350 or TH400 with dual bolt pattern flywheel only.
1 answers

I am in need of a new converter and do alot of intown driving as well as highway then there is the occasional trip to the track so I was looking at the 2700-3000 stall converter for my mild built sb 350 my question is since this is a 2700-3000 stall will

February 19, 2011

I am in need of a new converter and do alot of intown driving as well as highway then there is the occasional trip to the track so I was looking at the 2700-3000 stall converter for my mild built sb 350 my question is since this is a 2700-3000 stall will

Answers

February 23, 2011
Waymon
Thank you for your interest in our, 2700-3000 Stall TH350 Converter Item #: 109601. As with all street and occasional strip vehicles the owner will have to compromise on their wishes. No the engine will not have to turn 2700-3000 rpm when driving in town. But there will be some amount of slippage in the converter, causing added heat generated by the transmission. We highly suggest that you purchase the, HEAVY DUTY TRANSMISSION COOLER, Item #: 91023105, and mount it in front of the radiator to keep things cool when you drive in traffic. If your cam call for a 3000 stall converter it is because, if you purchase a converter with less stall, it will bog down the engine resulting in poor gas mileage and very poor throttle response. In other words you spent a lot of money and the car wont get out of its own way.
1 answers

hello, i was wondering if this converter is a 10" in diameter? thank you

Buena park, CA
February 08, 2012

hello, i was wondering if this converter is a 10" in diameter? thank you

Answers

February 09, 2012
Jason
Part number 109601 is a 10" diameter with a 10-1/2" bolt circle
Page 1 of 1
