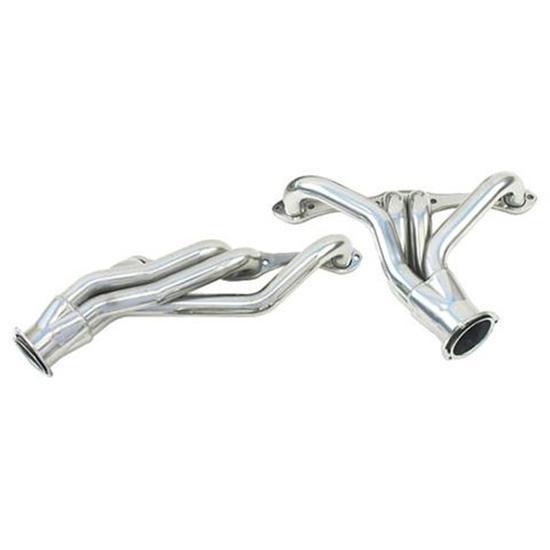

1967-1987 Small Block Chevy Shorty Headers, Manual Trans, AHC Coated

Price:$349.99
1967-87 S/B Chevy Shorty Headers
Price:
$349.99
ST
In Stock
Item #:
9300109H
Item Details:
AHC Coated
1967-1987 Small Block Chevy Shorty Headers, Manual Trans, AHC Coated
Click image to enlarge Click image to enlarge
Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)



These S/B Chevy headers are a shorty design that give maximum ground clearance and work with floor-shift manual transmissions only. Features 1-5/8" primary tubes and 3" collectors. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing.

Available with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resists rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures.

Headers come with installation hardware, collector reducers, gaskets and instructions.

  • 1968-87 Camaro, Chevelle, Malibu and El Camino
  • Must use non-shell style motor mounts
  • Manual Transmissions Only

Header Dimensions Chart (JPEG)

  • 9300109H
    Tube O.D.
    1.630"
    Collector Diameter
    3.000"
    Collector Length
    4.000"
    Flange Style
    Round Port
    Flange Thickness
    0.310"
    Port Height
    1.680"
    Port Width
    1.370"
    Drivers Side Dimension A
    4.100"
    Drivers Side Dimension B
    13.630"
    Drivers Side Dimension C
    18.380"
    Passenger Side Dimension A
    5.880"
    Passenger Side Dimension B
    10.200"
    Passenger Side Dimension C
    25.630"
    Hardware Included
    Yes
    Gasket(s) Included
    Yes
    Material Type
    Steel
    Finish
    AHC Coated
    Sold in Quantity
    Pair
  1. Fits D-Port cylinder heads including ZZ4 crate engine
  2. Will not fit with Saginaw Close Ratio 825 Steering Box
  3. Does not fit 67-69 Camaro with A/C
  4. Will fit most angle plug heads including factory Chevrolet “Bow-Tie” heads
  5. Requires removal or modification of locking steering columns if equipped
  6. Installation requires left side A/C bracket; 1979-Later vehicles with short compressors can use the stock bracket
  7. Must use non-shell type motor mounts

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300®® F.

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles
