1965-91 GM TH400 Performance Torque Converter, 2200-2600 Stall

Specs
Diameter:
12.0
Torque Converter Bolt Circle:
11.5"

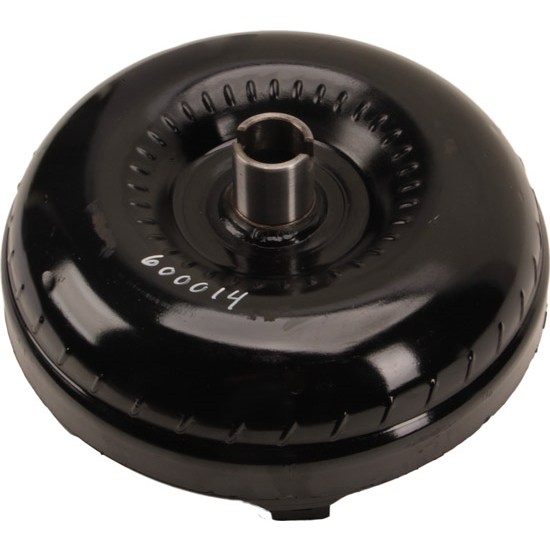

1965-91 GM TH400 Performance Torque Converter, 2200-2600 Stall

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Races are won or lost at the starting line, so make sure you come out ahead with a High Performance Turbo 400 Torque Converter. Whether you are looking for a street, strip, racing, or just plain heavy duty converter, these units will deliver lasting performance in your GM TH400 (with 11-1/2" bolt circle). With features like welded internals, oversized bearings, and hardened hubs, you can rest assured that these torque converters are of the highest quality possible.

  • 2200-2600 stall - 12" diameter
  • 1965-'91 GM Turbo 400 - 11-1/2" bolt circle

All stall ranges will vary depending on the engine setup, vehicle weight, and gear ratios.

High stall converters are designed for S/B or B/B cars with performance camshafts and high ratio rear end gears (3.55-3.73 minimum).

Made in the U.S.A.

To learn about how torque converters work and what to consider when purchasing one, check out our tech article. Choosing the Right Torque Converter.

Notes

  1. All advertised stall ranges will vary depending on your engine's setup and the weight of your vehicle. If your car is heavier than the recommendation, the stall speed will be higher. If the car is lighter, stall speed will be at a lower RPM.

Specs

  • Hardened Hub
    • Increased durability through the allowance of tighter tolerances and clean fit with transmission seals
  • Welded Impeller
    • Stronger pump fins to maintain stall speed over the life of the converter
  • Heavy-Duty Stators
    • Heat treated fins, sprag and race designed to efficiently handle high power loads
    • Stator fins are formed, not cut - cut stators can cause severe slippage
    • Rapidly dissipates heat - more power to the wheels
  • Welded Turbines
    • Pre-stressed before welding - more rigid construction
    • Heat treated splines
  • Aluminum Spacers
    • Incorporates aircraft quality aluminum spacers which handle higher loads than fiber spacers found in standard converters
  • Oversized Bearings
    • High strength stamped bearings absorb shock and extreme abuse better than standard waffle bearings
  • High Tech Welds
    • Positive-charged, military grade MIG welds for complete fusion of the metal

Item Details

Near stock mildly modified S/B or B/B cars, minimum 300 ft.lbs. torque, weighing 3200-3800 lbs., 12" diameter

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

Question? I have a 454 big block, mild cam, head work, nothing to fancy, will this Torque converter hold this power?

1 answers
Travisg1
April 01, 2015

Question? I have a 454 big block, mild cam, head work, nothing to fancy, will this Torque converter hold this power?

Answers

April 02, 2015
EricM
Yes this torque converter will work fine for a mild street driven big block engine.

will this work with my th350? I have a th350 that Im mating to my 454 engine. My flywheel has a 11.5 bolt circle because I had a 4l80e attached. Im looking to drop down to my t350 so it fits better in my 69 camaro and need a converter that will mate the two. Th350 - 11.5" bolt cirle flywheel.

1 answers
imderrickjed
IL
February 18, 2015

will this work with my th350? I have a th350 that Im mating to my 454 engine. My flywheel has a 11.5 bolt circle because I had a 4l80e attached. Im looking to drop down to my t350 so it fits better in my 69 camaro and need a converter that will mate the two. Th350 - 11.5" bolt cirle flywheel.

Answers

February 18, 2015
EricM
Yes this torque converter will work in a TH350 transmission and allow you to use the large bolt pattern flexplate.

is this converter smaller than a stock one ?

1 answers
hadley
Altamont,il.62411
November 23, 2014

is this converter smaller than a stock one ?

Answers

November 24, 2014
EricM
This is a 12" converter which is the same size as a stock converter.

Will this converter work on a fixed pitch th-400?

1 answers
BigDoggy1
Houston, TX, USA
February 21, 2013

Will this converter work on a fixed pitch th-400?

Answers

February 22, 2013
Jason
Part number 109614 is a 2200-2600 stall torque converter for the fixed pitch transmission and is a fixed pitch converter. If your transmission has a replaceable filter element then you have the more common and desirable fixed pitch version. The variable pitch had a washable filter with attached neck and these were from 1965-mid 67 and not the most desirable version. The fixed version was available on a limited basis later in that time frame and from then on. The fixed version also had the VIN stamped on the case. TH400’s had three different tail shaft lengths and two different output shafts and neither was specific to a year or model. For clarification the listing should read 65-91 fixed pitch converter applications.

Will the pt#109614 fit a dual pattern flex-plate on a Buick 350 engine with a th-400 cadillac transmission ? If it does what size converter bolts do I order with it?

1 answers
Big Doggy
Houston,Texas
March 13, 2012

Will the pt#109614 fit a dual pattern flex-plate on a Buick 350 engine with a th-400 cadillac transmission ? If it does what size converter bolts do I order with it?

Answers

March 15, 2012
John
This torque converter has an 11 ½” bolt circle. Compare this to your flex plate to verify fit.
Page 1 of 1
