1965-1991 GM 525 Manual Steering Box w/ 3/4-30 Input Spline

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Width:
4.50
Overall Length:
11.13
Sold in Quantity:
Each
Finish:
Painted
Input Shaft Length:
3.81
Input Shaft Diameter:
.75
Input Shaft Spline Count:
30
Turns Lock to Lock:
6.25
Garage Sale:
No
Notes
Top mount hole center to front of box=1.88", lower front mount hole center to front of box=2.50", lower rear mount hole center to front of box=5.38", lower mount hole to hole center=2.81".
1965-1991 GM 525 Manual Steering Box w/ 3/4-30 Input Spline
1965-1991 GM 525 Manual Steering Box w/ 3/4-30 Input Spline
1965-1991 GM 525 Manual Steering Box w/ 3/4-30 Input Spline
1965-1991 GM 525 Manual Steering Box w/ 3/4-30 Input Spline

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

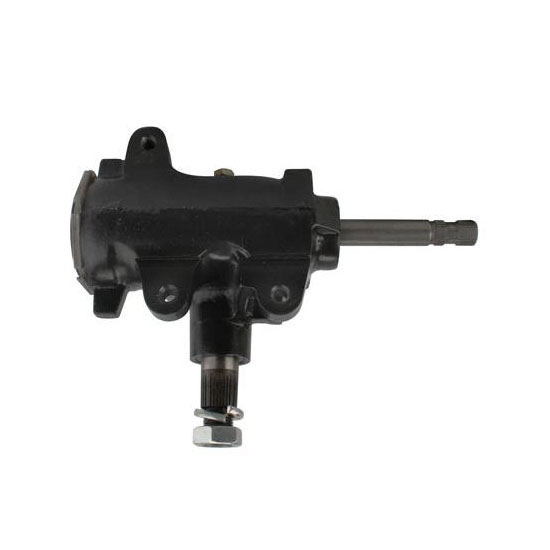

This Saginaw manual steering box fits many GM applications from 1965-1991 and probably many more. It accepts either our universal pitman arm (702-2940) or your stock GM arm (small style, like our 910-32552). Box has a 25:1 ratio (6.25 turns lock-to-lock) with a 3-13/16" long input shaft with 3/4" 30-splines.

  • Input shaft is 3/4"-30 spline
  • 6.25 turns lock to lock
  • 25:1 ratio
  • If you turn the input clockwise, the output also turns clockwise.
  • Stock specifications on this gear refer to it as 6 rounds lock to lock for a 24:1 ratio.
  • 36 Spline
  • 1.058 Diameter Top of Splines
  • 1.100 Diameter Middle of Splines
  • 1.124 Diameter Bottom of Splines

Note: Steering box is not adjusted at the facotry and therefore, it is necessary that the steering box be adjusted upon installation per the instructions as provided on the PDF instruction sheet.

1965-1991 GM Manual Steering Box Installation Instructions (PDF)

Notes

  1. This box can fit a lot of GM cars, plus it can work in a variety of street rod applications. When mounted behind the axle with the pitman arm forward, it steers like a Vega box. In many GM cars, it is mounted in front of the front suspension, with the pitman arm to the rear. Works well on vehicles weighing over 2500 lbs.

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Frank the car guy Moore
Verified Purchaser
Alva florida

Great new part

June 13, 2015
fast shipping great price cannot wait to install it and shed some extra pounds from my street strip car
Pros:
  • Cannot Wait To Install It
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

robin63
Alden, NY 14004, USA

Needed to replace 1st one, but new one g

September 29, 2013
I ordered/installed this product over a year ago. I had some play in the steering. Tried a couple things to tighten and loosen the play. When that failed, I called Speedway customer service, they sent me a shipping label so I could ship it back for FREE and they shipped me a new one, no further charges. That was awesome of Speedway. The new installation works just great. Im 100% satisfied now.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 9 answers

2 answers

Do you know if this is a direct bolt in on a 1991 S10? Truck currently has an OE power gearbox. Thanks

rjz1901
September 11, 2014

Do you know if this is a direct bolt in on a 1991 S10? Truck currently has an OE power gearbox. Thanks

Answers

January 31, 2015
Roper69
Fits most Chevys but need there pitman arm to make it work!
September 11, 2014
EricM
No this manual steering box is not a direct bolt on for an S10. It will actually bolt to the frame but the output shaft on this steering box has a smaller diameter spline than your stock power steering box has. A different pitman arm would be needed. Sorry we do not offer the correct pitman arm to install this on your S10
1 answers

manual steer conversion 1966 Impala I have a 1966 Impala with P/steering & would like to convert to manual steering, is the 525 steering box a bolt on for this application ? If not, please advise if you have product to make this conversion.

SLWSR
May 22, 2014

manual steer conversion 1966 Impala I have a 1966 Impala with P/steering & would like to convert to manual steering, is the 525 steering box a bolt on for this application ? If not, please advise if you have product to make this conversion.

Answers

May 22, 2014
EricM
The 525 box fits almost all the 65-91 applications but there were some variables. The input shaft is ¾” x 30 spline and the output is 36 spline. Spline count is computed by counting half of the shaft without the master spline or flat and multiplying times 2. There were some with 36 spline and if your joint from your column is 36 spline then replacement of the joint would be needed.
1 answers

Do you carry the rag joint for this steering box ? or location and part No.

Hawaiian50
Las vegas
May 06, 2013

Do you carry the rag joint for this steering box ? or location and part No.

Answers

May 06, 2013
Jason
The GM 525 manual steering box has a 3/4"-30 input shaft. Speedway offers GM style rag joint part #91032410 or 1967-68 Camaro style rag joint part #4464331.
1 answers

Hi, what is the ratio ? Thank you

SS720HP
Las Vegas Nv
April 05, 2012

Hi, what is the ratio ? Thank you

Answers

April 06, 2012
John
This box has a 25 to 1 ratio
1 answers

What ratio is this steering box?

Pete
Grand Rapids, MN
July 23, 2012

What ratio is this steering box?

Answers

July 27, 2012
John
This 525 box has a 25 to 1 ratio and features 6.25 turns lock to lock
1 answers

I like to install this box in a 1977 z 28. Is their a manual pit man arm avaiable to do this. Any help

May 13, 2011

I like to install this box in a 1977 z 28. Is their a manual pit man arm avaiable to do this. Any help

Answers

May 18, 2011
John
This p/n is a GM 525 manual steering box and works on many applications from 1965-1991and several other hot rod applications. This box has a 25:1 ratio and available for order. You questioned the availability of a manual pitman arm for your 1977 Z28 and currently we do not have these in stock. GM used a couple of different lengths to achieve different steering ratio compatibility and the pitman arm and idler arm need to be in sync for proper steering geometry. We do offer the standard 91032552 pitman arm which is 6 ¼” from center to center for comparison to your idler arm. If a custom application is in the works we also have a universal under part number 7022940 which is 7” from center to center of the holes.
1 answers

I have a 46 ford that i would like to use this box in. Could you give me the dimensions of the box? I need this information to be sure it will fit my application before I order it.

MSasso
Cleveland, OH
March 20, 2011

I have a 46 ford that i would like to use this box in. Could you give me the dimensions of the box? I need this information to be sure it will fit my application before I order it.

Answers

March 24, 2011
Pat
This box from end of impute shaft is approx 11” and from the pitman arm shaft to opposite end is approx 8 ½ “ the box itself is approx 7”x6” FYI:This box can fit a lot of GM cars, plus it can work in a variety of street rod applications. When mounted behind the axle, with the pitman arm forward, it steers like a Vega box. In many GM cars, it is mounted in front of the front suspension, with the pitman arm to the rear. Here are a few more measurements for this box. The input shaft is 3/4"-30 spline, lock-to-lock is 6.25 turns. This box can use our street-rod pitman arm 702 2940 or OEM style 910 32552. The output shaft on this box measures 1.058" at the bottom end, 1.100" in the middle of the splines, and 1.124 at the top end of the splines.
1 answers

Can this replace the power steering box in my 1989 Trans Am? Do I need a different idler/pitman for this? Just want a good manual box and get rid of the power steering.

Mike
United States
June 26, 2015

Can this replace the power steering box in my 1989 Trans Am? Do I need a different idler/pitman for this? Just want a good manual box and get rid of the power steering.

Answers

June 29, 2015
Eric
Expert
This will bolt onto your frame but the output shaft spline is a smaller OD than your power steering box has. Sorry we do not have the correct pitman arm for your application. That might be a tough to find item since a manual steering box was never used on a 1989 Trans Am or similar vehicle. The input shaft of this manual steering box is 3/4" - 30 spline and your rag joint could be changed if your current box is a 13/16" - 36 spline, however many of the later model power steering boxes were 3/4" - 30 spline as well.
Page 1 of 1
