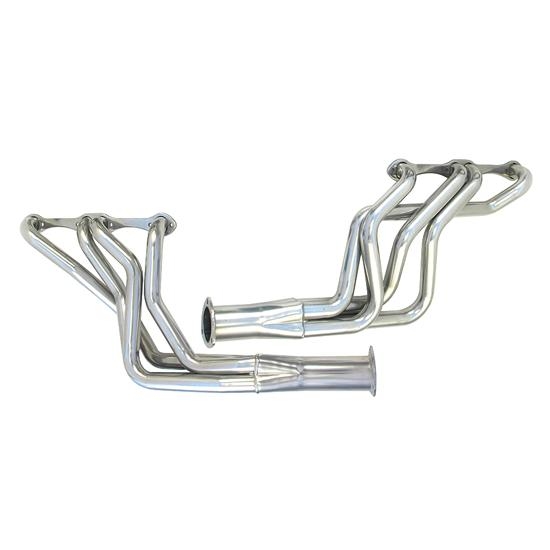

1965-1989 Small Block Chevy Long Tube Headers, AHC Coated

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
AHC Coated
Tube O.D.:
1.63
Port Height:
1.70
Port Width:
1.41
Flange Thickness:
.30
Flange Style:
Round Port
Collector Diameter :
3.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
7.15
Drivers Side Dimension B:
16.88
Drivers Side Dimension C:
38.00
Passenger Side Dimension A:
5.10
Passenger Side Dimension B:
16.88
Passenger Side Dimension C:
37.00
Collector Length:
8.25
Garage Sale:
No
Header Tube Type:
Long Tube
Notes
Reducers are 3" to 2.50" They are 5.00" long.
1965-1989 Small Block Chevy Long Tube Headers, AHC Coated
1965-1989 Small Block Chevy Long Tube Headers, AHC Coated
Product Video
1965-1989 Small Block Chevy Long Tube Headers, AHC Coated

Click image to enlarge

Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

These long tube headers work with both automatic or manual transmissions in 1964-1989 Chevrolet chassis. Features 1-5/8" primary tubes, 3" collectors, and fits angled or straight plug S/B Chevy oval exhaust port heads. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing. These headers are a chassis header and are meant to go inside of the frame rails on the 1965-1989 Chevrolet chassis.

Available with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resists rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures.

Headers come with installation hardware, collector reducers, gaskets and instructions.

Header Dimensions Chart (JPEG)

Item Details

AHC Coated

Application

Applications include, but not limited to:

  • 1965-1989 Impala, Caprice, Bel Air, Biscayne
  • 1967-1981 Camaro (except 1967-69 with factory A/C)
  • 1964-1987 Chevelle, Malibu, El Camino
  • 1970-1987 Monte Carlo
  • 1968-1979 Nova

Notes

  1. Fits D-Port cylinder heads including ZZ4 crate engines
  2. Does not fit 67-69 Camaro with A/C
  3. Will fit most angle plug heads including factory Chevrolet “Bow-Tie” heads
  4. Requires removal or modification of locking steering columns if equipped
  5. Installation requires left side A/C bracket; later vehicles with short compressors can use the stock bracket
  6. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering
  7. These headers are a chassis header and are meant to go inside of the frame rails on the 1965-1989 Chevrolet chassis.

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300Ëš F.

Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

buzzard55
Verified Purchaser

product i ordered was perfect.

September 30, 2014
Service was outstanding. My order was shipped immediately and i recieved it in 3 days. Very pleased with this company. I will be ordering again.
Pros:
  • excellent service
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ABunker
Verified Purchaser
Redding, CA.

Nice looking set

February 08, 2013
I contacted the service dept. with a question on these headers and it was suggested that I use these for added ground clearance.I needed them for a truck and these were for a car. It also said some modifications may be needed. They were right as nothing fit in the compartment of my truck. Well I made the changes needed and YES they give excellent ground clearance after redesigning the motor mounts and some welding. Not a good idea if you don't have the expertise, knowledge and equipment to make the needed modifications. Yes I am impressed with the fit and especially the added ground clearance as my truck is slammed to the ground. Thanks for the great advise and warning SOME MODIFICATION WILL BE NEEDED.
Pros:
  • love the hidden look
  • perfect fit now
  • expert advise from you guys.
Cons:
  • lot's of extra work for the different application.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Michelle
Verified Purchaser
Burlington, IA

Awesome headers

April 03, 2012
My old headers hung down and would drag over my curb into my driveway, these are tucked up close and the collectors are rounded, so I don't think I will have that problem anymore. I had a hard time finding headers to fit with my 350 manual transmission and power steering - these were perfect and look nice too!
Pros:
  • Hugs close
  • Looks good
  • Fit perfectly
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

1 answers

Will they fix brodix track 1 heads angle plug on a 72 nova?

Bruce4227
December 22, 2014

Will they fix brodix track 1 heads angle plug on a 72 nova?

Answers

December 23, 2014
EricM
Yes these will fit Brodix Track 1 heads in a 1972 Nova.
1 answers

What is the tube Thickness?

Cain
July 28, 2014

What is the tube Thickness?

Answers

July 30, 2014
Travisp
The tube thickness is .058.
1 answers

Fit this header a 67 impala 350 cui with oem power steering box, dropped spindels and air baggs ?

1967impala
Berne, Switzerland
October 27, 2013

Fit this header a 67 impala 350 cui with oem power steering box, dropped spindels and air baggs ?

Answers

October 28, 2013
EricM
Using header number 9300110H on a 67 Impala with dropped spindles and air ride will likely limit your driving to very smooth surfaces because of lack of ground clearance and when air bags are deflated the headers will likely be on the ground before the frame rails. For your configuration the Mid Length headers would be suggested under part number 9300109H.
1 answers

Will these headers work on an 1988 camaro with a standard transmission?

July 24, 2011

Will these headers work on an 1988 camaro with a standard transmission?

Answers

July 26, 2011
John
THESE HEADERS FIT 67-81 CAMARO (EXCEPT 67-69 W FACTORY AIR) 64-87 CHEVELLE/MALIBU 70-87 MONTE CARLO 68-79 NOVA 65-89 CHEVY FULL-SIZE THESE HEADERS FIT MOST CARS WITH AUTOMATIC TRANS AND MOST MANUAL TRANS WITH A FLOOR SHIFT. THEY FIT MOST ANGLE PLUG HEADS, AND THEY WILL WORK ON MOST HEADS WITH D-SHAPED EXHAUST PORTS.
1 answers

are the headers tuned? equal tube length?

67Chris
Antioch, CA, USA
October 15, 2012

are the headers tuned? equal tube length?

Answers

October 16, 2012
Jason
These headers are not exact matching tube lengths. For exact measurements contact Pertronix and reference part #H8047-1
1 answers

87 vette tuned port inj

Mike
Palmdale ca
May 19, 2015

87 vette tuned port inj

Answers

May 19, 2015
Eric
Expert
These headers will not fit your Corvette. Sorry we do not offer headers that fit your application.
Page 1 of 1
