1964-88 GM 800 Power Steering Box, 13/16 Inch 36-Spline Input

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Painted
Input Shaft Spline Count:
36
Output Shaft Spline Count:
32 and 4 master
Turns Lock to Lock:
3.25
Overall Height:
5.797
Overall Width:
8.833
Overall Length:
12.017
Input Shaft Length:
1.163
Input Shaft Diameter:
0.805
Output Shaft Length:
2.34
Output Shaft Diameter:
1.210
Notes
Used in GM mid-size cars from 1964-88. Uses -6 AN adapters from 16mm and 18mm O-ring. This is GM "800" box, NOT a "605".

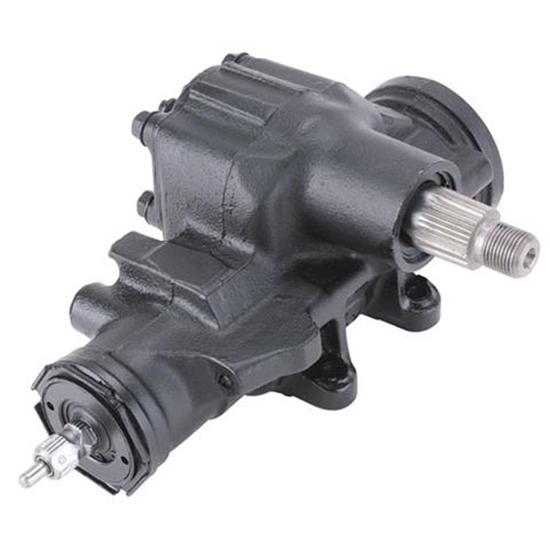

1964-88 GM 800 Power Steering Box, 13/16 Inch 36-Spline Input

Click image to enlarge

Details

Reviews (1)

Q & A (9)

What's in the Box

Info

Remanufactured GM 800 Series power steering boxes have a 16:1 ratio and were used in midsize GM cars from 1964-1988. Painted black and include -6 AN fittings to make it easier to fabricate hoses if needed. Pitman arm not included. No core return is required.

Note: Not compatible with OEM 45° flare fittings.

Application

  • 1965-70 Chevy Full-size
  • 1971-76 Chevy Full-size
  • 1967-69 Camaro/Firebird
  • 1970-81 Camaro/Firebird
  • 1964-67 Chevelle/Malibu/A-Body
  • 1968-72 Chevelle/Malibu/A-Body
  • 1973-77 Chevelle/Malibu/A-Body
  • 1968-74 Nova/X-Body
  • 1975-79 Nova/X-Body
  • 1978-81 Malibu/A-Body
  • 1982-88 Monte Carlo/G-Body
