1955-57 Chevy Power Steering Conversion Kit

1955-57 Chevy Power Steering Conversion Kit

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

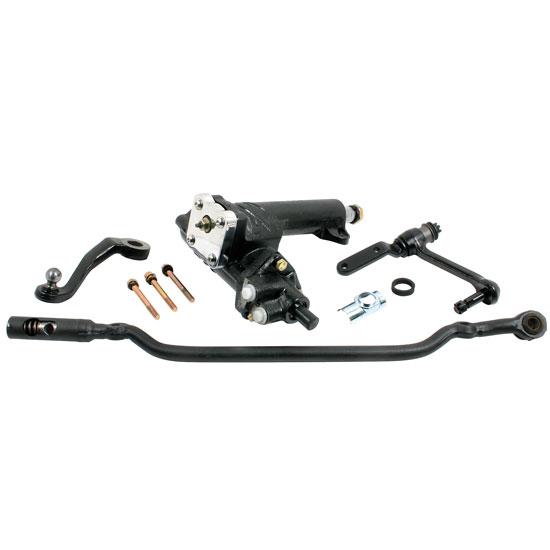

Included in this kit is a new 500 series power steering box, new centerlink, new pitman and idler arm. Modification of the original steering column is required. Use 910-32460 (1955-56) or 910-32462 (1957) to convert the stock column for use with this kit. This is a straight bolt-on conversion when using our Ididit columns.

The top splines on the steering box are 3/4"-30.

910-32570 Instructions (PDF)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

57Lover
Twin Falls, ID, USA
Product Rating

Awesom kit.

September 27, 2013
This kit has a lot of the components needed to freshen up the steering in one easy kit.
Pros:
  • has everything needed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91032570

Product Q&A

3 questions : 3 answers

1 answers

Will this pwr stearing kit work if I'm using the side motor mounts ? Also what stearing column and coupler should I buy ? Power stearing kit 91032570 Side motor mounts 7204175 Ready to paint column,tilt,auto trans,column shift.

hotrodholiday
November 16, 2013

Will this pwr stearing kit work if I'm using the side motor mounts ? Also what stearing column and coupler should I buy ? Power stearing kit 91032570 Side motor mounts 7204175 Ready to paint column,tilt,auto trans,column shift.

Answers

November 18, 2013
EricM
When using this power steering kit the side mounts part number 7204175 or 91018055 along with a rear transmission cross member number 91628910 work excellent together and clear the power steering kit with the V8 pitman arm. Ididit column part numbers 4451255, 4461455 or 4461257 will work with the cross over and also are offered in chrome as just a few of the examples. Tilt columns use 1” double D and in those cases a U-joint number 91032393 or rag joint number 4465231 will be needed. If you get a column with a shifter then we offer a rag joint number 4463431 to mate to the ¾ x 36 on the column. All of this would be a direct bolt in and top it with the steering wheel of choice.
1 answers

How many hoses need, 500/600 series box power steering conversion kit.(1957 chevy belair)

manny
miami,fla
September 22, 2011

How many hoses need, 500/600 series box power steering conversion kit.(1957 chevy belair)

Answers

September 23, 2011
Zach
Speedway part number 91032570. That power steering conversion would use 2 power steering hoses if you are using a factory style GM power steering pump. One pressure line, and one return line. Our part number 91032509 would work with that kit.
1 answers

Does the whole column need to be replaced when installing this kit? I have a 57 belair with a small block in it, I saw that it says you have to use a coupler but doesn't say anything about the column in the instructions

shop guy
May 12, 2015

Does the whole column need to be replaced when installing this kit? I have a 57 belair with a small block in it, I saw that it says you have to use a coupler but doesn't say anything about the column in the instructions

Answers

May 13, 2015
John
Expert
On your 57 if all original the inner column shaft goes into the gearbox and has the gear made on the end of it. When using kit number 91032570 the simplest fix is to use kit number 91032462 for the column conversion and then the rag joint number 91032416. Other options would be to use a U-joint in place of the rag joint and alter and modify the existing column to simulate the column kit 91032462.
Page 1 of 1

You may also be interested in:

1955-1957 Chevy Power Steering Box
(Part #91032505)


This new 500 Series power steering box for 1955-1957 Chevy cars is just the ticket to update your ride. Uses rotary valve technology to give you a superior road feel and driver feedback eliminating leaky, sloppy steering! The 500 Series is truly the best of its kind. It is the only box on the market today manufactured with a one piece housing (no welding), all new parts, uses original pitman arm, and has a 14:1 ratio.



  • 3/4"-30 input spline
  • Steering ratio is 14:1
  • Easy replacement for GM 605 box
  • Input shaft is 3/4”-30 spline (the same as the 605 box)
  • Sector shaft is 1” 36-4 tapered spline, the same as the original 1955-64 pitman shaft
  • Pressure fitting is 7/16" tube (11/16"-18 inverted flare port)
  • Return fitting is 3/8" tube (5/8"-18 inverted flare port)



910-32505 Instructions (PDF)

1955-56 Chevy Power Steering Column Conversion
(Part #91032460)


This kit allows you to run your original automatic column with a GM 500, 600, or 605 series conversion power steering box. Features an improved shift lever design and added clearance at the firewall

Includes new tube, shaft, and floor plate. Accepts 3/4" DD rag joint.

1957 Chevy Power Steering Column Conversion
(Part #91032462)


This kit allows you to run your original automatic column with a GM 500, 600, or 605 series conversion power steering box. Features an improved shift lever design and added clearance at the firewall.

Includes new tube, shaft, and floor plate. Accepts 3/4" DD rag joint.

This column is 3 1/2" shorter than stock. The overall housing length from the top of the turn signal housing down to the end of the column housing is 29-1/8".

Steering Rag Joint, 3/4 Inch-30 Spline x 1 Inch DD
(Part #4465231)


These rage joints make it easier to put an Ididit column in your '55-'57 Chevy car when using an aftermarket steering box.

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)



Sweet Mfg U-Joint, 3/4-30 Spline to 3/4 In DD, Small GM P/S 1978-Up
(Part #91032293)


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints are needle bearing and have 3/4"-30 spline.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
  • 3/4"-30 Spline

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

1955-64 Chevy Power Steering Hose Kit
(Part #91032509)


Rubber power steering hose kit for 500, 600, & 605 series power steering boxes. Our power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. Return hose will normally need to be cut to length.

  • 11/16"-18 inverted flare fine (pressure fitting)
  • 5/8"-18 inverted flare fine (return fitting)
Note:  Power Steering Hose Kit for Small Blocks Only
