1955-57 Chevy Dropped Spindle Kit for GM Midsize Calipers

Price:
$249.99
KT
In Stock
Item #:
91034923
Item Details:
Brakes NOT included - use kit 91031995
Open Kit Components
- Selection of individual components may be necessary for kit purchase.

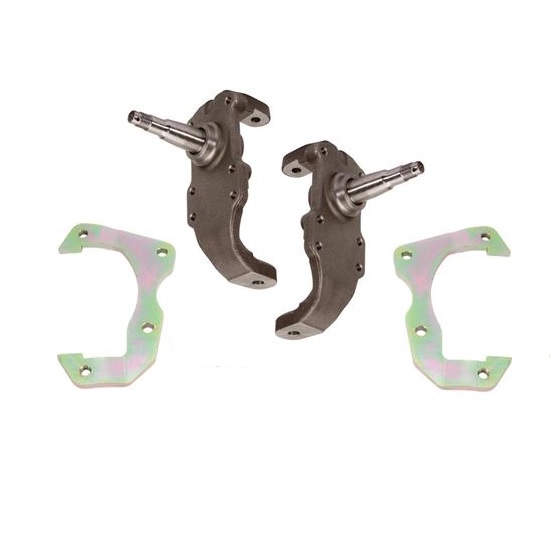

1955-57 Chevy Dropped Spindle Kit for GM Midsize Calipers
Click image to enlarge Click image to enlarge
No video at this time.


Dropped spindles will not only enhance the rake of your Tri-Five Chevy, they will also improve handling due to the lower roll center. These spindles are designed like the original only they have 2” of drop built in. Plus, dropped spindles maintain factory steering & suspension geometry so original steering arms can be used.

The optional disc brake kit features 10 ½” GM vented cast iron rotors and 1969-77 GM single piston calipers. Brake kit sold separately.

  • 2" drop
  • Completes both sides
  • Maintains factory steering & suspension geometry
  • Includes midsize caliper bracket & bolts

Note: These spindles cannot be used with stock drums or brake conversions for stock spindles.

910-34923 Instructions (PDF)

  1. Track width is increased over stock O/E front end width by 3/4" overall or 3/8" per side.
