1955-57 Chevy Dropped Spindle Kit for GM Midsize Calipers

SAME DAY SHIPPING! Order within the next 7 hours 25 minutes and receive same day shipping

Specs
Sold in Quantity:
Kit
Drop:
2.00
Garage Sale:
No
Notes

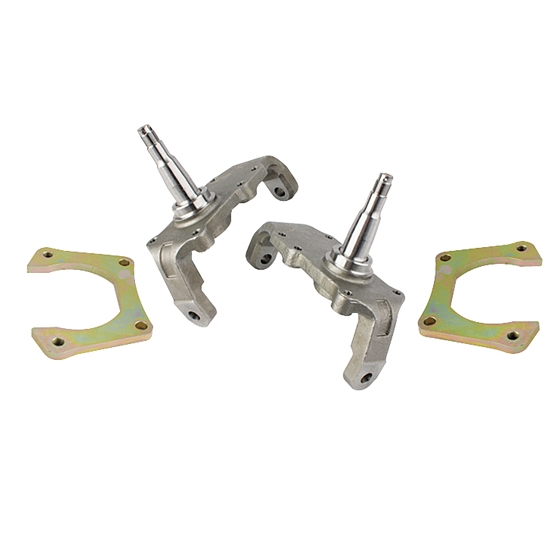

Includes spindles, hardware, and caliper brackets.
1955-57 Chevy Dropped Spindle Kit for GM Midsize Calipers
1955-57 Chevy Dropped Spindle Kit for GM Midsize Calipers

Click image to enlarge

Speeday Motors Logo
X
1955-57 Chevy Dropped Spindle Kit for GM Midsize Calipers

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Dropped spindles will not only enhance the rake of your Tri-Five Chevy, they will also improve handling due to the lower roll center. These spindles are designed like the original only they have 2” of drop built in. Plus, dropped spindles maintain factory steering & suspension geometry so original steering arms can be used.

The optional disc brake kit features 10 ½” GM vented cast iron rotors and 1969-77 GM single piston calipers. Brake kit sold separately.

  • 2" drop
  • Completes both sides
  • Maintains factory steering & suspension geometry
  • Includes midsize caliper bracket & bolts

Note: These spindles cannot be used with stock drums or brake conversions for stock spindles.

910-34923 Instructions (PDF)

Notes

  1. Track width is increased over stock O/E front end width by 3/4" overall or 3/8" per side.

Item Details

Brakes NOT included - use kit 91031995
