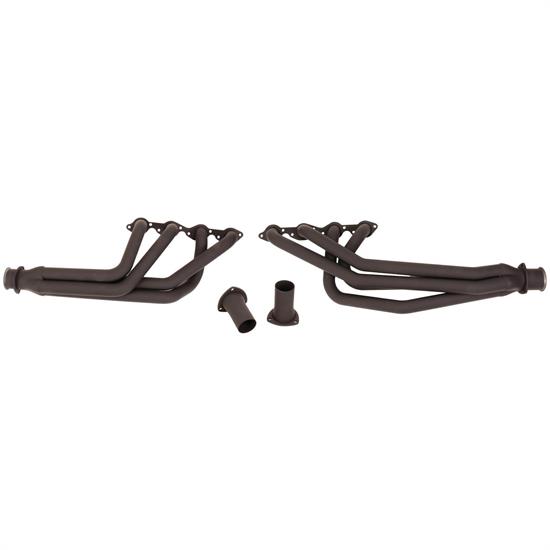

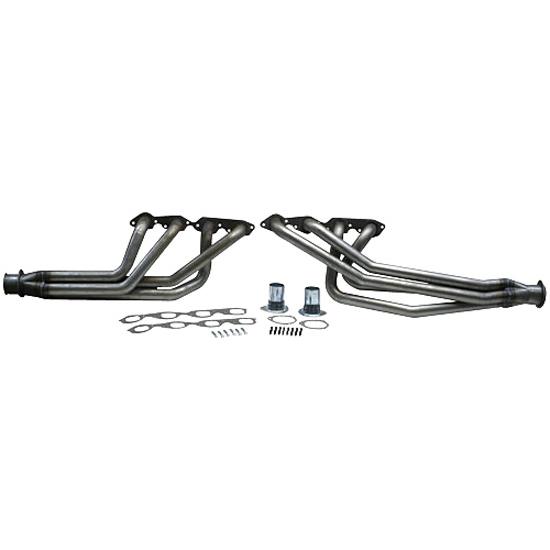

1955-57 Big Block Chevy 396-502 Chassis Headers, Plain Steel

SAME DAY SHIPPING! Order within the next 6 hours 53 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Natural
Tube O.D.:
1.88
Port Height:
1.93
Port Width:
1.93
Flange Thickness:
.38
Flange Style:
Square Port
Collector Diameter :
3.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
10.10
Drivers Side Dimension B:
13.00
Drivers Side Dimension C:
35.38
Passenger Side Dimension A:
9.90
Passenger Side Dimension B:
14.35
Passenger Side Dimension C:
41.13
Collector Length:
5.75
Garage Sale:
No
Header Tube Type:
Chassis
Notes
Includes a pair of reducers (3.00" to 2.50")
1955-57 Big Block Chevy 396-502 Chassis Headers, Plain Steel1955-57 Big Block Chevy 396-502 Chassis Headers, Plain Steel
1955-57 Big Block Chevy 396-502 Chassis Headers, Plain Steel

Click image to enlarge

Speeday Motors Logo
X
1955-57 Big Block Chevy 396-502 Chassis Headers, Plain Steel

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Classic Chevy owners will love these 396-502 big block V8 chassis headers for 1955-1957 cars. They have 34"-36" primary tubes for lots of power, but they're tucked close to the body for maximum ground clearance. Requires aftermarket side engine mounts and a rear trans crossmember (rather than stock bellhousing mounts).

  • Mid-length design offers maximum ground clearance, even if car is lowered 4"
  • Works with automatic transmissions only
  • Designed to work with stock steering or 605 power steering box
  • Original bellhousing frame mounts must be removed
  • Will NOT work if engine is set forward more than 3/4" for firewall/HEI distributor clearance
  • Will NOT fit tall-deck (truck) blocks
  • Header Dimensions (GIF)

Note: These headers will not work with manual transmissions due to clutch linkage issues.

Application

  1. Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with TCI engine mount kit PN 725-7005-80 and with the equivalent Danchuk mounts.
  2. Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  3. Works with A/C, P/B, P/S, and A/T (both column and floor shifters).
