1955-57 Big Block Chevy 396-502 Chassis Headers, Black Steel

SAME DAY SHIPPING! Order within the next 15 hours 37 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.88
Port Height:
1.93
Port Width:
1.93
Flange Thickness:
.38
Flange Style:
Square Port
Collector Diameter :
3.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
10.10
Drivers Side Dimension B:
13.00
Drivers Side Dimension C:
35.38
Passenger Side Dimension A:
9.90
Passenger Side Dimension B:
14.35
Passenger Side Dimension C:
41.13
Collector Length:
5.75
Garage Sale:
No
Header Tube Type:
Chassis
Notes
Includes a pair of reducers (3.00" to 2.50")

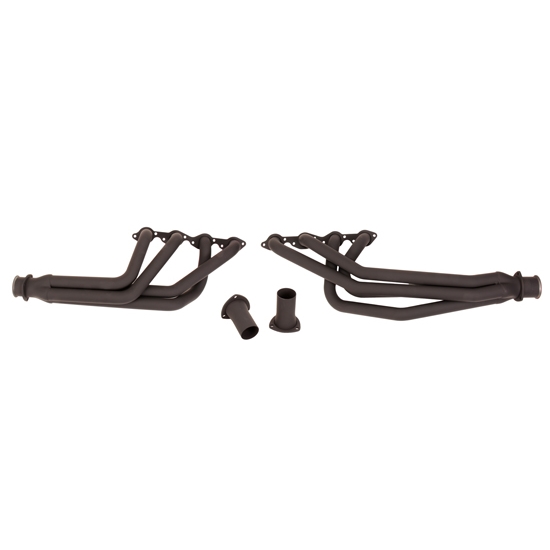

1955-57 Big Block Chevy 396-502 Chassis Headers, Black Steel
1955-57 Big Block Chevy 396-502 Chassis Headers, Black Steel
1955-57 Big Block Chevy 396-502 Chassis Headers, Black Steel

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Classic Chevy owners will love these 396-502 big block V8 chassis headers for 1955-1957 cars. They have 34"-36" primary tubes for lots of power, but they're tucked close to the body for maximum ground clearance. Requires aftermarket side engine mounts and a rear trans crossmember (rather than stock bellhousing mounts).

  • Mid-length design offers maximum ground clearance, even if car is lowered 4"
  • Works with automatic transmissions only
  • Designed to work with stock steering or 605 power steering box
  • Original bellhousing frame mounts must be removed
  • Will NOT work if engine is set forward more than 3/4" for firewall/HEI distributor clearance
  • Will NOT fit tall-deck (truck) blocks
  • Header Dimensions (GIF)

Note: These headers will not work with manual transmissions due to clutch linkage issues.

Application

  1. Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with TCI engine mount kit PN 725-7005-80 and with the equivalent Danchuk mounts.
  2. Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  3. Works with A/C, P/B, P/S, and A/T (both column and floor shifters).

Customer Reviews

Rated 2.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
0
3 Stars
1
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Wall-E-noah tall-E
Canal Fulton,Oh

Will fit with some modifications

May 30, 2015
RH header fits with 2 minor mods,front tube indent by upper a arm,very rear tube indent for frame clearance,Great starter clearance.LH headers needs 3 mods,2nd tube indent on inside by block boss,3rd tube indent for steering box,4th tube cut and bend to clear oil filter.Great ground clearance.My engine was 3/4 forward. Had to remove gear box to install left header.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

baldspoony
OKC

Doesn't fit

February 28, 2015
These look to be high quality construction. Too bad they won't fit between the stock suspension, won't clear the a-frames and sits against the gearbox pushing the engine 1 1/2' to the right.
Pros:
  • Good Quality
Cons:
  • Won't fit
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

This customer was issued a return label for a refund or an exchange. We apologize for any inconvenience and are happy to help in any way that we can!
Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

what part of the clutch linkage do they hit?

35fordman
Ogden, UT, USA
November 23, 2014

what part of the clutch linkage do they hit?

Answers

November 24, 2014
EricM
The primary tubes will pass directly through the area that the Z bar and clutch fork is located.
1 answers

Will they fit,if the motor is mors than 3/4 inch forward? If not. Why? I installed a 454 1 inch forward. What is going to hit?

pcp41143
CA
February 14, 2014

Will they fit,if the motor is mors than 3/4 inch forward? If not. Why? I installed a 454 1 inch forward. What is going to hit?

Answers

February 17, 2014
EricM
These headers will not have clearance if moved forward more than 3/4 “. Steering linkage and then also the chassis will have mount interference if a big block is positioned more than ¾” forward.
1 answers

will these headers fit a 366bbc in a 1956 chevy with pwr steering? After installing the engine, there is only an inch and 1/2 clearance between the 3rd exhaust whole on the drivers side and the original steering box. Your cooperation will be appreciated.

Ralph
Peoria, Az
May 06, 2011

will these headers fit a 366bbc in a 1956 chevy with pwr steering? After installing the engine, there is only an inch and 1/2 clearance between the 3rd exhaust whole on the drivers side and the original steering box. Your cooperation will be appreciated.

Answers

May 09, 2011
Wyatt
These headers are designed for 396-502 B/B Chevys and will not fit the tall-deck truck blocks (if that is what your 366 is out of). It will work with both original steering and aftermarket 605 power steering.
Page 1 of 1
