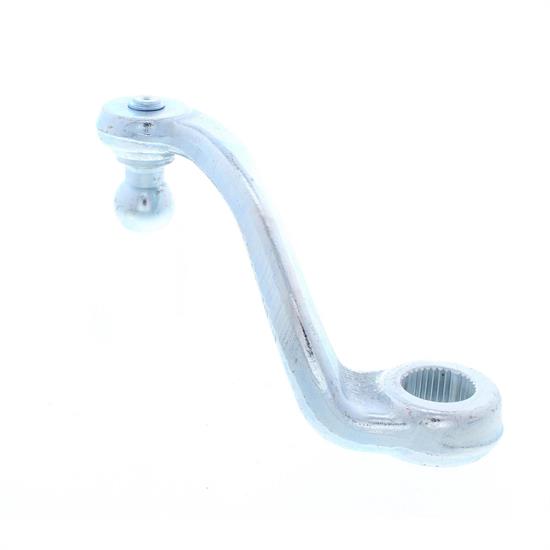

1955-1957 Chevy Manual Steering Pitman Arm

1955-1957 Chevy Manual Steering Pitman Arm

Click image to enlarge

Details

Reviews (4)

Q & A (2)

What's in the Box

Info

This 1955-1957 Chevy passenger car pitman arm is a direct replacement for original manual steering box arms (GM part # 3719487). Can also be used with GM 500 series power steering conversion boxes.

Specs

  • Round ball stud is 1" O.D.
  • Lazy S shape with 2-1/2" side step
  • Approx. 2" of drop to top of ball
  • 4 master splines
  • I.D. for splined shaft 1.071 to 1.082

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

boomer bob
Verified Purchaser
Verified Reviewer
malvern ar

great item at great price

October 19, 2016
very good item great price
Pros:
  • Good Part
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

rob
Verified Purchaser
Verified Reviewer
winnemucca, nv

would buy again

May 24, 2015
This fixed my header interference problem on my Sanderson bb56 and old pitman arm I even gave Sanderson this part number great product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jr777
Verified Purchaser

Pitman arm 1956 chevy

September 03, 2014
The price was very good and received my purchased. Two days later after placing my order. They were very knowledgeable about they were selling. It has worked out very well for me.
Pros:
  • Very helpful
Cons:
  • NON
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

57Tim
Verified Purchaser
Cameron Wi

Perfect, fit right where the old one was

May 12, 2012
Reasonable price and ultra fast shipping.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 4 answers

3 answers

Is this for a v8 car or 6cyl? Wondering because only the v8 arm will work with my mid leanth headers. Thank you

leadsled57
ohio
March 15, 2011

Is this for a v8 car or 6cyl? Wondering because only the v8 arm will work with my mid leanth headers. Thank you

Answers

September 04, 2014
Jr777
This for a v8 1956 chevy. Don't think this will work on 1957. 6 cyl and v8 has a different pitman arm. Putting on power steering. Needs to be a v8 pitman arm. Mine was 6cyl
August 07, 2013
bobblue55
Hello!I just installed one of these manual piman arms on my 1955 chevy belair 2dr sedan,i have a small block chevy with those same mid length,3/4 headers,and it gives much more right turning capacity.Where as before,I was limited,on right turns,the pitman arm hit the header.-----------HOPE THIS HELPS Bob
March 18, 2011
Jeremy O
This is for a V8.
1 answers

Will this fit your Vega style hot rod boxes?

Nick
Lake County, CA
October 14, 2015

Will this fit your Vega style hot rod boxes?

Answers

October 20, 2015
John
Expert
We apologize but this Tri-5 pitman arm has 4 master splines and a slightly different size and will not work on the Vega box. We do offer a dropped pitman arm for the Vega if that would be of interest under number 91632052.
