1955-1956 Chevy Car Heater Core

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Core Thickness:
2.5
Core Width:
7.25
Core Height:
10
1955-1956 Chevy Car Heater Core
1955-1956 Chevy Car Heater Core
1955-1956 Chevy Car Heater Core

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

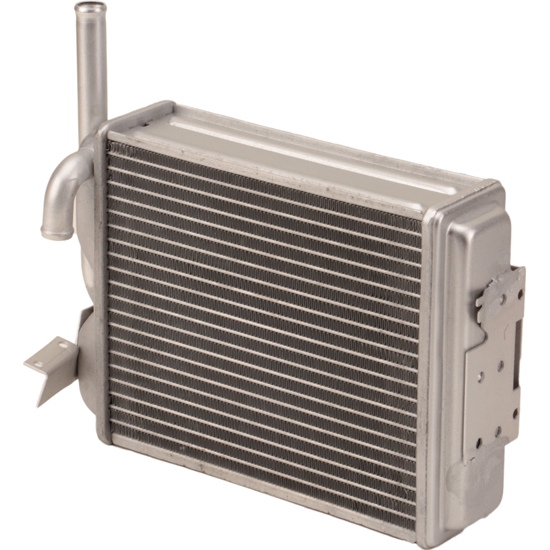

These are a 100% new, factory replacement Tri-Five heater core. Not a marginal recore like others sell. For '55-'56 Chevrolet cars without factory air conditioning. We also recommend the mounting plate, which is normally rusted beyond use.

Note: General Motors produced two different style heater cores for these vehicles. The heater cores we carry are a reproduction of the "deluxe" model, not the "standard."

Specs

Length of main core and tanks is 10", Inlet tube adds an additional 1/2" to overall length and so does one mount bracket.  Width is 7 1/4" and thickness is 2 1/2". Inlet and outlet are both on the same end and pointing in opposite directions parallel to the core.  One extends 2" past the core where the other makes a 90 degree turn ending mid way to the width.  Both inlet and outlet are for 5/8" hose.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Ron
Verified Purchaser
Oceanside, Ca.

high quality and good fit

June 30, 2011
it fit in the housing without any modifications, It contained a sheet of paper explaining the plug in place of the now obsolete temperature bulb.
Pros:
  • Good Quality
  • Actually fits in housing
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

i have a 56 4 door 210 model. do you know if it takes "standard heater core" or "deluxe heater core" thank you

September 12, 2011

i have a 56 4 door 210 model. do you know if it takes "standard heater core" or "deluxe heater core" thank you

Answers

September 13, 2011
John
Deciding between the standard and deluxe on the heater core for the 1955-56 is sometimes difficult and in many cases has been previously changed to something readily available. The one we offer is the Deluxe and the inlet and outlet point in opposite directions. This would be one specification to check that would help verify fit. Another is comparison to these specifications. Length of main core and tanks is 10", Inlet tube adds an additional 1/2" to overall length and so does one mount bracket. Width is 7 1/4" and thickness is 2 1/2". Inlet and outlet are both on the same end and pointing in opposite directions parallel to the core. One extends 2" past the core where the other makes a 90 degree turn ending mid way to the width. Both inlet and outlet are for 5/8" hose.
Page 1 of 1
