Quick Time RM-8059 1949-53 Flathead to T-5/TKO/TR3550 Bellhousing

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
MFG. Part #:
RM-8059
Hardware Included:
Yes
SFI Rated:
Yes
Garage Sale:
No
Overall Height:
6.93
Weight:
23.00
Notes
Fits '49-'53 engines with a 112 tooth flywheel. Requires starter 91067465/91067470. Includes various pivots for Ford clutch release arms, including a Mustang-style arm using a "pull" cable.

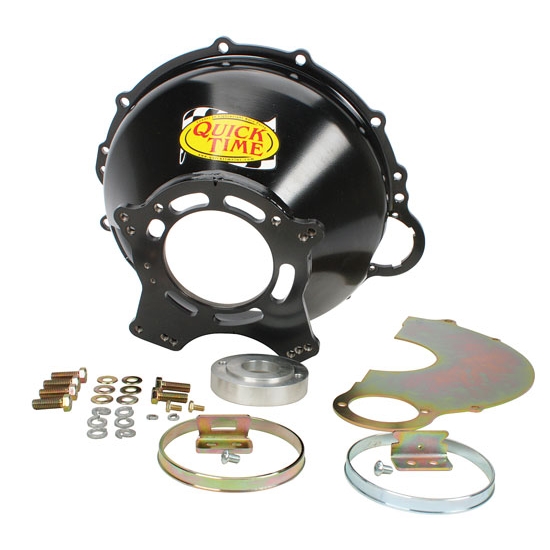

Quick Time RM-8059 1949-53 Flathead to T-5/TKO/TR3550 Bellhousing
Quick Time RM-8059 1949-53 Flathead to T-5/TKO/TR3550 Bellhousing
Quick Time RM-8059 1949-53 Flathead to T-5/TKO/TR3550 Bellhousing

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These strong, lightweight steel bellhousings are just the ticket for installing a Mustang T5, Tremec TKO 500/600, or TR3550 manual transmission behind your 1949-53 Ford Flathead V8 engine. The compact design allows the bellhousing to fit in tight quarters and will accommodate up to a 10-1/2" clutch. Set up to use a clutch fork and release bearing, but can also be used with hydraulic release bearings.

NOTE: Must be used with Speedway starter 91067465 (standard block) or Powermaster 91067475 (French block).

T-5 and Adapter Tech Tips (Link)

Application

  • 1949-1953 Ford 8BA Flathead V8
  • 1949-1953 Mercury 8CM Flathead V8

Notes

  1. Includes two adapter rings for bearing collars and aluminum adapter to allow starter bolt up.
  2. Trans bore = 4.850"/4.910"
  3. Universal shifter fork brackets for diaphragm or cable operated linkage. Supplied with pivots for several Ford clutch release arms, including a pivot ball for a Mustang-style arm using a "pull" cable.
  4. Pivot ball, shifter brackets, full engine plate and grade 8 bolts included.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

blueracer
Verified Purchaser
Searsboro, IA 50242, USA

this product has great features

March 08, 2015
I am just mocking everthing together for now but so far everything bolts up.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

can i use this with a S-10 t5 trans? what 10.5 inch clutch have you recommend? what fly wheel have you recommend with the 10.5 inch clutch? do you have a hydraulic clutch kit for this?

matt
michigan
October 30, 2015

can i use this with a S-10 t5 trans? what 10.5 inch clutch have you recommend? what fly wheel have you recommend with the 10.5 inch clutch? do you have a hydraulic clutch kit for this?

Answers

November 03, 2015
Eric
Expert
Bell housing 91027031 is made to accept the Ford T5 and will not work with the S10 T5. We apologize but do not carry the correct bell housing but we offer a complete kit with the Tremec 5 speed in various configurations as long as you can furnish the 3" bell housing used on the 48 and up pickups and 49-53 Mercs and the base kit is 91028908. We can also put the kit together with adapter number 91628914 where a customer could use a diaphragm pressure plate and hydraulic throw out bearing.
Page 1 of 1
