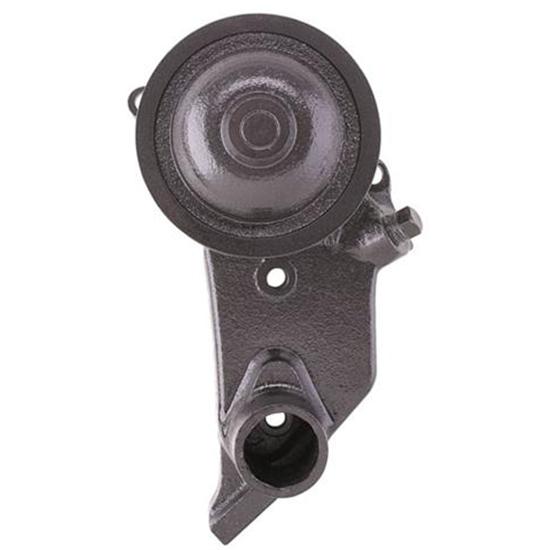

1949-53 Flathead Car Water Pump with Wide Belt

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Groove Count:
1
Water Pump Style:
Short
Water Pump Type:
Mechanical
MFG. Part #:
-
Gasket(s) Included:
Yes
Shaft Diameter:
0.63
Mounted Length:
4.88
Hose ID:
1.75
Belt Width:
0.63
Pulley Diameter:
4.34
Notes
2.88" from engine side of pulley to mounting flange.
1949-53 Flathead Car Water Pump with Wide Belt

Click image to enlarge

Details

Reviews (4)

Q & A (2)

What's in the Box

Info

Original Flathead water pumps have always suffered from unreliable bronze bushings and carbon seals. They almost always leaked and even Ford manuals warned mechanics not to tighten fan belts too tight. The excess slack allowed belts to slip and lose contact with the generator and water pump pulleys, causing more cooling and power problems.

Speedways completely new water pumps feature severe-duty roller and ball bearings, close tolerances and modular impellers to provide maximum flow and reduce cavitation. They also have modern ceramic seals on a heavy duty 5/8" shaft, making the assembly exceptionally strong and more efficient. Gaskets included.

1949-1953 Flathead Water Pump Instructions (PDF)

Item Details

Gaskets Included

Specs


Warranties

Note: Any attempt to press off the pulley and replace it voids all warranty on the pump.

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

diamonddan
Verified Purchaser
New Baltimore, MI

Quality product........

January 28, 2015
Speedway's 1949 Ford Flathead V-8 water pump mount holes matched up perfect. After installation there were no leaks. Pulley quality is heavy duty with correct width to accommodate the wide v-belt. 5/8" in use. The water pump casting appeared perfect / just like original, however, had a plug hole in the casting was not on original pump. This didn't matter because tapered plug was provided and installed #no leak#...........
Pros:
  • good quality gasket
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

49shoo
Verified Purchaser
El Paso, TX, USA

Great

June 06, 2013
installed without any problems or leaks. flows better then original
Full Size Image

Was this review helpful? 0 0

flathead overhaul
Verified Purchaser
kissimmee, fla

high flow with lots of go!

November 06, 2010
awsome company
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fleetline Keith
DeBary, Fl.

Nice product.

May 29, 2010
Purchased to replace the pump on my 49 Ford flathead. Fit perfect with no alterations and no leaks.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

French flathead Hello, I have a French Simca flathead 4.2 L or 255cu. these are the correct water pumps? The engine comes in a 1930 Model A Thx

vsbfocus
November 29, 2013

French flathead Hello, I have a French Simca flathead 4.2 L or 255cu. these are the correct water pumps? The engine comes in a 1930 Model A Thx

Answers

November 29, 2013
EricM
That looks like a different water pump than we’ve seen before. It must be unique to the military application that they used these engines for. This water pump you are looking at would be a stock replacement for a 49-53 Ford Flathead, and that means it does not have the correct motor mount provisions for a Model A. If it were me, I would try pump part number 91015592 instead. That is a 49-53 style pump, but has the early style motor mount provision, and still uses the wider 5/8” belt. The only thing I’m not sure of is the lower pulley, that may or may not have the correct offset. You might have to get a 49-53 style car pulley to make that pump work.
1 answers

do I have to oil these pumps? the original pumps have to be oiled. Do these new ones require the same

Irak
Carthage, NC, USA
March 12, 2013

do I have to oil these pumps? the original pumps have to be oiled. Do these new ones require the same

Answers

March 12, 2013
Jason
Original Flathead water pumps had unreliable bronze bushings that required frequent oiling. Speedway pumps number 91015594 have ball bearings and do not require oiling or maintenance.
Page 1 of 1
