1949-1954 Chevy Frame Adapters

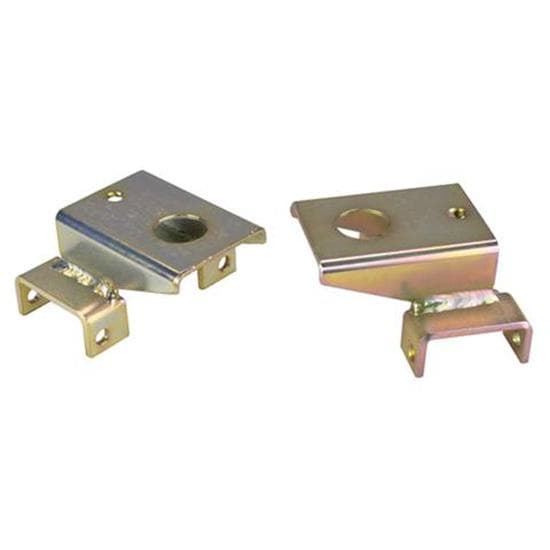

1949-1954 Chevy Frame Adapters

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (2)

Q & A (8)

What's in the Box

Info

Specially designed frame adapters allow professional installation of most Chevy V8 engines into 1949-1954 Chevy passenger car frames. Designed for use with engine mounts and cushion kit found on this page.

Engine Mounting Illustration (GIF)

Customer Reviews

Rated 3.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

nicklas1
Zelienople, PA, USA

well fitted, outstanding finish

August 27, 2014
great fitment.... would only ask that info was provided as to adapter is bolted to frame rail or only welded on.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Harrisfire
Verified Purchaser
Brownsville, TX

Decent start

May 06, 2011
Fit the frame ok, obviously will need some modification if you're using anything other than a small block chevy with their cradle mounts. Easy to modify to fit my needs (after a little reworking they work just fine with a 500 ci Cadillac motor). May be a little too low for retaining the stock steering components.
Pros:
  • Works with cushion kit
  • Easy to modify
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 9 answers

2 answers

Are these compatible with 49-54 chevy with a mustang II installed?

50chevyrat
Illinois, USA
October 21, 2014

Are these compatible with 49-54 chevy with a mustang II installed?

Answers

November 07, 2014
BJC32
Depends on motor mount
October 21, 2014
EricM
Modifications to this bracket may be required to mount a small block in your 1950 that already has a Mustang II suspension.
1 answers

Will this motor mount accomodate a 350 V8 Chevy engine into my 1954 Chevy Pickup, 3100 series with the 235 Straight six ? Can you also lead me to info about the 350 matching up to my original 4 speed factory transmission ??

Bob
Ohio
January 10, 2011

Will this motor mount accomodate a 350 V8 Chevy engine into my 1954 Chevy Pickup, 3100 series with the 235 Straight six ? Can you also lead me to info about the 350 matching up to my original 4 speed factory transmission ??

Answers

January 12, 2011
John
You inquired about using our motor mount number 1353273 on your Chevy pickup and these are actually the frame mounts for the 49-54 chevy car. They are designed to be used with the front cradle mount on the motor under part number: 1356023 and cushion kit number: 7209314. You could still use the last two items and fabricate the frame mounts as needed. Another option would be part number: 91018040 which would require matching the brackets to your frame and welding or also part number: 91018031 which you notch and alter to match up with your frame, weld in place and use either the stock side engine mounts or an optional polyurethane mount. One more option would be kit number: 7204771 for the later pickups and you would need to modify these to work with your narrower frame. Just one of many ways to approach the project.
1 answers

i would like to no if these mounts will fit a 1950 chevy pickup and cross members trans and engine and mounts

mike
lynbrook ny 11563
April 01, 2011

i would like to no if these mounts will fit a 1950 chevy pickup and cross members trans and engine and mounts

Answers

April 06, 2011
Clark
These mounts will not fit a '50 Chevy pickup. Our 720-4771 could be modified for this application, or 916-18012 + mount cushions 910-18012 should work as well. The transmission mount crossmember 916-28904 + cushion 910-18016 should be a pretty good bet as well.
1 answers

what brackets do I use for a 51 pontiac cheiftain small block conversion?

June 28, 2011

what brackets do I use for a 51 pontiac cheiftain small block conversion?

Answers

June 29, 2011
John
These frame adapters when used in conjunction with the appropriate engine mount and the bolt through cushion kit number 7209314 allow swapping motors into your 1949-54 Chevy car. Currently we don’t offer frame mounts for other manufacturers vehicles of similar years but if using on a GM vehicle these would be a good starting point but will require some modification.
1 answers

Where should mount be installed on frame? Measurement from a reference point. Thanks

Kustomer
April 18, 2015

Where should mount be installed on frame? Measurement from a reference point. Thanks

Answers

April 21, 2015
John
Expert
We apologize but mounting location of adapters for the 49-54 Chevy cars to accept a big or small block are not available and up to the builder to mount in the location front to rear that fits their fit needs.
1 answers

Is this strong enough for a healthy big block?

Sawzall Steve
Alvarado, TX
October 18, 2015

Is this strong enough for a healthy big block?

Answers

October 20, 2015
Eric
Expert
These frame adapters were designed with an average street car engine in mind. If you are dealing with a 700 hp big block then you may want to strengthen them up a bit.
1 answers

Can you provide the width measurement between the frame side of the mounting ears please.

tim
topeka ks
March 04, 2016

Can you provide the width measurement between the frame side of the mounting ears please.

Answers

March 08, 2016
Eric
Expert
The frame cradle is 2 1/4" wide on the inside to fit over the frame rails.
1 answers

Will these bolt on to stock engine mount towers on 53 bel air? I have 235 currently, and I will be installing a 350 5.7 v8

Johnny
Las Vegas nv
October 04, 2016

Will these bolt on to stock engine mount towers on 53 bel air? I have 235 currently, and I will be installing a 350 5.7 v8

Answers

October 05, 2016
John
Expert
These frame mounts fit over the frame rails on your 49-54 Chevy passenger cars and do not bolt to the factory 6 cylinder mounts. Then use engine mount number 1356023 for your 350 and cushion kit 7209314.
Page 1 of 1
