1949-1953 Ford/Mercury Frame Adapters

Specs
Sold in Quantity:
Pair
MFG. Part #:
135-3294

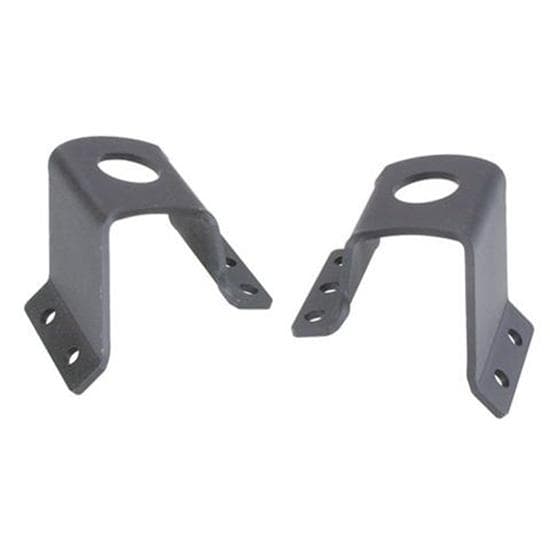

1949-1953 Ford/Mercury Frame Adapters

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (0)

Q & A (5)

What's in the Box

Info

Specially designed frame adapters allow professional installation of most every engine into 1949-1953 Ford/Mercury passenger car frames. Designed for use with engine mounts and cushion kit found on this page.

Engine Mounting Illustration (GIF)



135-3294 Instructions (PDF)

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

Will these motor mounts work vintage engines? I am looking to install either and Ford 312 y-block, SBF or BBF in my '53 Mercury Coupe and would like to know if these will work with the installation.

TromperVince
Los Angeles
September 06, 2013

Will these motor mounts work vintage engines? I am looking to install either and Ford 312 y-block, SBF or BBF in my '53 Mercury Coupe and would like to know if these will work with the installation.

Answers

September 09, 2013
Jason
Frame mounts number 1353294 are designed to bolt to the original 49-53 Mercury frames and used in conjunction with bolt thru cushion kit number 7209314. For the engine side we offer 1353764 for the small block Ford V8 but apologize for not having the engine mounts for the 312 or the big block Ford.
1 answers

I am wondering if these would work for bolting in a carbed 4.6 into my 1953 Ford Customline?

Don73
April 06, 2015

I am wondering if these would work for bolting in a carbed 4.6 into my 1953 Ford Customline?

Answers

April 07, 2015
EricM
Frame adapters number 1353294 can be used in your 53 Customline in conjunction with cushion kit number 7209314 but we apologize we do not carry the engine mounts for the 4.6. An example for the 302 or 5 liter engine is part number 1353764 bu that will not fit your 4.6 engine. You may need to fabricate or modify an engine bracket to use with these frame adapters.
1 answers

im using these mounts on a 351 Windsor which shouldn't make a difference from 302. what oil pan is recommended to use with these mounts?

gonzo
fremont nebraska
July 05, 2015

im using these mounts on a 351 Windsor which shouldn't make a difference from 302. what oil pan is recommended to use with these mounts?

Answers

July 06, 2015
Craig
Expert
You would want to check your specific application but most time you would need to use a rear sump oil pan to clear the cross member.
1 answers

will this work with installing a 350 SBC into a 49 ford coupe? is this a direct bolt into the frame cross member?

John
Hendersonville, NC
April 12, 2016

will this work with installing a 350 SBC into a 49 ford coupe? is this a direct bolt into the frame cross member?

Answers

April 13, 2016
John
Expert
Frame adapters number 1353294 would be used in conjunction with engine mount number 1356023 and cushion kit number 7209314 when installing a small block Chevy V8 in a 49-53 Ford or Mercury.
1 answers

I am installing a sbf (302) in my 1952 ford ranch wagon. Would this setup work better along with the motor mounts and cushion kit, or should I go with the universal sbf with weld tabs to frame? In addition, if I was to buy both kits, can I return whichever one I decide against? Any help is appreciated. I have a stock frame with no modifications.

Don
Yuma, Az
August 15, 2016

I am installing a sbf (302) in my 1952 ford ranch wagon. Would this setup work better along with the motor mounts and cushion kit, or should I go with the universal sbf with weld tabs to frame? In addition, if I was to buy both kits, can I return whichever one I decide against? Any help is appreciated. I have a stock frame with no modifications.

Answers

August 17, 2016
John
Expert
These frame mounts require engine stands number 1353764 and cushion kit 7209314. Depending on what other accessories you plan on for your engine such as A/C, etc. the engine stands use holes in the head for mounting. To free up the front of the engines we would recommend 91018045. Either can be returned if like new, resellable condition, with the original packaging.
