Outer Tie Rod End, 11/16-18 LH

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Thread Length:
2.13
Stud Length:
1.75
Stud Diameter:
0.63
Shank Length:
2.42
Shank Diameter:
0.68
Degree of Taper:
7 degree
Thread Pitch:
11/16-18
Threads:
LH Male
Garage Sale:
No
Notes
1" from center of threaded shaft to the bottom of the taper. Includes boot, castle nut, and cotter pin.

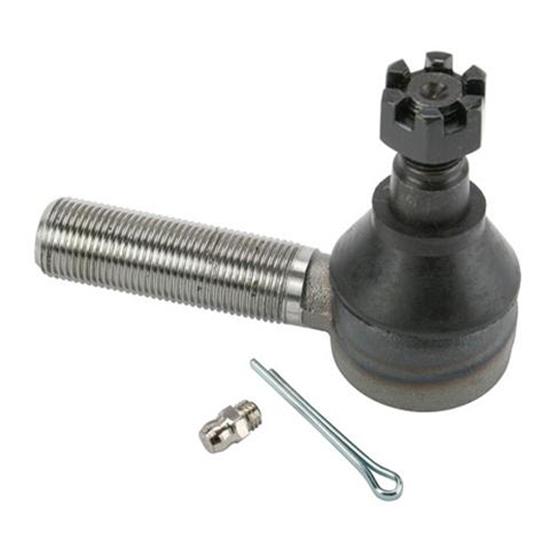

Outer Tie Rod End, 11/16-18 LH
Outer Tie Rod End, 11/16-18 LH
Outer Tie Rod End, 11/16-18 LH

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Replace those sloppy worn out tie rods with our new replacements. Original equipment on 1948-1964 Ford half-ton pickups, but these can be used on many other applications other than Ford trucks. Not for use with flat steering arms. Use only with Ford type steering arms with a tapered hole. Not normally used with Chevy spindles.

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Case1934
Verified Purchaser
CA
Product Rating

Great Price

September 19, 2014
Very nice and great price, Even comes with the grease dust cover, Other places charge for that, Very well made, Will buy again,
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

23tbucket777
Verified Purchaser
Oregon, USA
Product Rating

tie rod kit

August 10, 2014
Bought the tie rod kit for my t bucket, and it was nice chrome, fit perfect functioned well . Good price, would recommend
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

hambone
Verified Purchaser
Colorado Springs, CO, USA
Product Rating

good product

May 25, 2014
As always speedways shipping was lightening fast! These tie rod ends seem to be a good quatily product. They installed easy, no defects and you sure can't beat the price!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

does part number 91002909 have standard thread?

1 answers
June 13, 2011

does part number 91002909 have standard thread?

Answers

June 14, 2011
Jason
Yes, 91002909 is 11/16-18 right hand thread

can you tell me the size of the taper and the size of the threads for the nut.

1 answers
stu
creston b.c. canada
January 24, 2012

can you tell me the size of the taper and the size of the threads for the nut.

Answers

January 26, 2012
QC
The castle nut are 1/2"-20 and the taper is .62" at the large end and .57" at the small end.

is this tie rod end 11/16" in diameter with a 18 left hand thread count?

1 answers
rodder bill
durango colo.
May 24, 2011

is this tie rod end 11/16" in diameter with a 18 left hand thread count?

Answers

May 25, 2011
Jason
Yes, 11/16-18 left hand thread
Page 1 of 1
