1948-52 Ford F1 Forged Upper Shock Mounts, 5-1/2 Inch

Specs
Material Type:
Steel
Overall Length:
6.50
Sold in Quantity:
Pair
Finish:
Zinc
Thread Length:
1
Shank Length:
1.25
Shank Diameter:
.625
Center to Center:
2.13
Garage Sale:
No
Notes
Measures 5.50" from the centerline of the shock stud to the center of the closest bolt hole. The inside flange to outside of bend is 1.375".

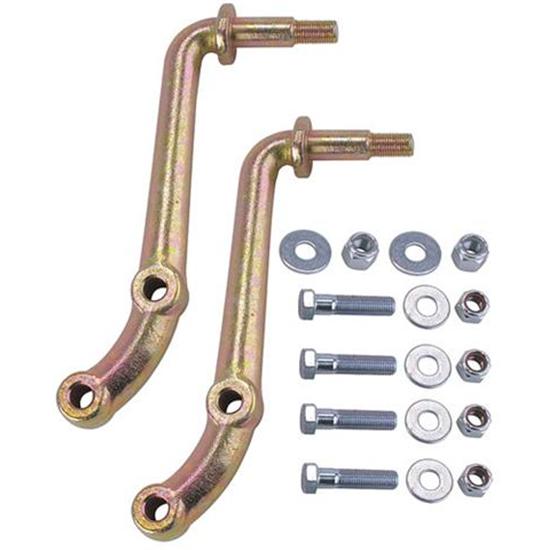

1948-52 Ford F1 Forged Upper Shock Mounts, 5-1/2 Inch

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

After more than fifty years of use, the original upper shock mounts on the front of your vintage Ford pickup are likely worn out, damaged or missing. These forged steel upper shock mounts are reproductions of those used on 1948-1952 Ford F1 trucks, but are also adaptable to other beam-axle hot rods. The F1 shock mounts were popular on early-style hot rods where an upgrade to telescoping shocks over lever shocks was desired.

Forged from the finest steel, these zinc-plated mounts are available in 5-1/2" or 6-1/2" lengths (measured from the centerline of the stud to the center of the top bolt hole) and accept shocks with 5/8" I.D. bushings. Hardware is included.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Papa Taylor
Verified Purchaser
Oak Harbor, WA
Product Rating

Shock mount

August 21, 2012
These are nice. I will buy the same again maybe?
Pros:
  • Easy To Install
  • Nice piece
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

strength I have a tbucket chassis with an o8 5.7 HEMI, would these, or p/n 91036006 (stainless) be strong enough to support the front with coil overs mounted?

1 answers
onitav
mississippi
November 15, 2012

strength I have a tbucket chassis with an o8 5.7 HEMI, would these, or p/n 91036006 (stainless) be strong enough to support the front with coil overs mounted?

Answers

November 16, 2012
Jason
These shock mounts would not be recommended for your application. Even when used on the 48-52 Ford pickups they did not support the weight of the truck. Part number 715150 is an example of what we use for shock mounts on our T bucket but we regret that we do not offer a coil over mount as you need. We would deter from suggesting a basic shock mount for front end support using coil overs without reinforcement as needed.

1-distance from end of threads, 2- distance of shock mount surface to flange, to to the FAR SIDE OF THE 90 DEGREE BEND thank you!!!

1 answers
July 04, 2011

1-distance from end of threads, 2- distance of shock mount surface to flange, to to the FAR SIDE OF THE 90 DEGREE BEND thank you!!!

Answers

July 06, 2011
QC
Thread Length: 1" Mount Surface (between flange and threads): 1.25" Inside flange to outside of bed: 1.375
Page 1 of 1

You may also be interested in:

Stainless Steel HighBoy Front Shock Mounts
(Part #91036006)
                        These stainless steel upper front shock mounts measure 4" from the top bolt hole to the centerline of the stud.  Mounting bolts are spaced at 2-5/16" on center.

Shocks bushing and stainless steel hardware is included.
Front Shock Mounts
(Part #91636001)
                        Bolt-on for early frames, heliarc welded steel. Perfect for shocks! 5" tall, 1⁄2" I.D. shock boss. Sold as a pair.

Speedway Shock Towers
(Part #91636501)


These upper shock mounts are 10-1/2" from the bottom edge to the centerline of the shock hole. The shock hole is tapered from both directions and will either require our 535-AK35 shock stud kit, or be drilled out to 5/8".

These mounts are a cut-to-fit item and require welding and fabrication skills.

Stainless Steel Upper Front Shock Bracket, Unpolished
(Part #91636004)


These trick & classy stainless steel brackets feature hidden mount bolt holes.

1948-52 Ford F1 Forged Upper Shock Mounts, 6-1/2 Inch
(Part #91036009)


After more than fifty years of use, the original upper shock mounts on the front of your vintage Ford pickup are likely worn out, damaged or missing. These forged steel upper shock mounts are reproductions of those used on 1948-1952 Ford F1 trucks, but are also adaptable to other beam-axle hot rods. The F1 shock mounts we popular on early-style hot rods where an upgrade to telescoping shocks over lever shocks was desired.

Forged from the finest steel, these zinc-plated mounts are 6-1/2" long (measured from the centerline of the stud to the center of the top bolt hole) and accept shocks with 5/8" I.D. bushings. Hardware is included. Mount bolt spacing is 2-1/8" on center.
