1948-1956 Ford Half Ton Deluxe Disc Brake Kit, 5 x 4-1/2 Inch

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
11.00
Caliper Finish:
Natural
Rotor Construction:
Vented
Caliper Pistons:
Single
Rotor Location:
Front
Rotor Shape:
Round
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Drilled:
No
Slotted:
No
Stud Length:
1.00
Stud Diameter:
.50
Rotor Thickness:
1.00
Notes
Includes rotors, calipers, bearings and seals, hardware, caliper brackets, brake pads, and brake hoses.
1948-1956 Ford Half Ton Deluxe Disc Brake Kit, 5 x 4-1/2 Inch
1948-1956 Ford Half Ton Deluxe Disc Brake Kit, 5 x 4-1/2 Inch
VIDEO
1948-1956 Ford Half Ton Deluxe Disc Brake Kit, 5 x 4-1/2 Inch

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (15)

Q & A (15)

What's in the Box

Info

These kits allow you to put front disc brakes on your 1948-56 Ford F100 1/2 ton pickup trucks. No spindle modifications are required - this is a bolt-on kit. This F100 disc brake conversion kit uses '76-'81 Dodge Aspen brake rotors (or Chrysler equivalent) and '70-'77 Camaro brake calipers (or GM equivalent) on stock '48-'56 Ford half ton pickup truck spindles. Rotors have a 5 on 4-1/2" Ford bolt pattern.

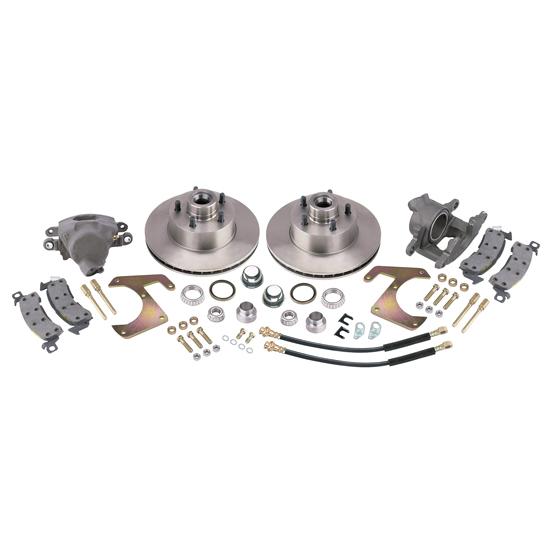

Kit Includes:

  • Vented cast iron rotors
  • GM single piston iron calipers (7/16"-20 inlets)
  • Brake pads
  • Caliper slide bolts
  • Rubber brake lines
  • Steel caliper brackets
  • Hardware
  • New bearing and seal adapters
  • Seals
  • Inner bearing cones
  • Outer bearing cones
  • Spacers
  • Dust caps

Customer Reviews

Rated 4.9 out of 5 by 15 reviewers.
RATING BREAKDOWN
15 reviews
5 Stars
13
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Mr.F100
Verified Purchaser
Verified Reviewer
Lucerne, CA.

Great kit at an affordable price

November 14, 2016
Very satisfied and I would recommend this kit for anyone. I have been in the restoration business for over 43 years and it just keeps getting better with Speedway Motors!
Pros:
  • Quality Parts
  • 100s Of Dollars Less
  • Easy Installation
  • Illustrated Instructions
  • Everything You Need For C
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Don Howlett
Verified Purchaser
Canada

Disc Brake Kit

October 21, 2016
Great to deal with and everything fit very well.Will be ordering again soon for my build.Thankyou for the great service
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Flathead
Verified Purchaser
Verified Reviewer
Cartersville GA

Easy bolt on kit

September 06, 2016
Fits 1949 Ford F3 bolt on.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim
Verified Purchaser
Verified Reviewer
La Mesa ca

I just think this is the best parts

July 31, 2016
I just love this online service for buying my hotrod parts thay do so much to help the parts always nicely shipped all there too . You have a good team there . Thanks to all who do the work to make it work .
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Verified Purchaser
Verified Reviewer
Owego NY

Awesome Deal,everyone should add disc brakes for all hotrods

June 27, 2016
easy installation,,,great price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Verified Purchaser
Mcdonald, Pa.

Excellent keep up the good work

October 25, 2015
Great
Pros:
  • God Prices
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chris
Verified Purchaser
Verified Reviewer
Cincinnati, ohio

Great part,works like it should.

October 15, 2015
Fit my 1950 Ford f1 with on modifications
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

greg
Verified Purchaser
kelowna bc

that was easy

September 28, 2015
that's better than fixing the old drum brakes. better selection of wheels to with the bolt pattern i chose.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Plasma Pete
Verified Purchaser
Verified Reviewer
Mnt. Home Arkansas

Uber Cool Product as well as great packaging

August 10, 2015
I make old junk go fast and live again , and these are the kind of parts that make this possible , Kodos to the Speedway Team !
Pros:
  • Quality Parts No Rust
  • Boxed Up Well
  • No Damaged Goods
  • Shipping Was Fast
Cons:
  • None that I can see
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

rustyrail
Verified Purchaser
northern Kansas

Good kit, could be better

July 27, 2015
Well made kit in appearance and fit. Needs instructions for beginners as kit parts were scattered through my entire order. Mounting bolts need to be 1/2" shorter for better appearance. Also needs a note that king pin retainer/steering stop will have to be modified to get proper steering cut. This needs to be done before vehicle is driven, to be safe.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

15 questions : 18 answers

1 answers

will this kit work on a 52 f3 I got a 52 f3 and would like to put drop front axle on it would this brake kit work with factory f3 spindles

Lilg
October 26, 2014

will this kit work on a 52 f3 I got a 52 f3 and would like to put drop front axle on it would this brake kit work with factory f3 spindles

Answers

October 28, 2014
EricM
According to our research the F1, F2, and F3 spindles will all accept this brake kit.
1 answers

What is the shipping weigth ? also the weigth of the lowered front axle fore the ford f1 1949. Thanks.

Arjan
April 25, 2014

What is the shipping weigth ? also the weigth of the lowered front axle fore the ford f1 1949. Thanks.

Answers

April 25, 2014
EricM
This brake kit weighs approximately 87 pounds. Drop axle number 9104852 which is for 48 to 52 Ford F1 weighs 45 pounds.
3 answers

What is the distance from the center of the rotor to the outside of the caliper when it is mounted? I need to know if the 14" rims on my truck now will fit with this kit?

tommysly
Appleton, WI, USA
March 30, 2014

What is the distance from the center of the rotor to the outside of the caliper when it is mounted? I need to know if the 14" rims on my truck now will fit with this kit?

Answers

July 02, 2015
Eric
Expert
You need to allow 7 1/8 from center of rotor to outside of caliper and most 14" wheels will not clear.
April 01, 2014
EricM
You need to allow 7 1/8 from center of rotor to outside of caliper and most 14” wheels will not clear.
May 07, 2014
buddha54
without knowing what 14 inch rims you have,i will say that stock ford 14 inch rims(from a early 70s torino/mustang)fit .
1 answers

On the 4.5" bolt circle rotors, what is the hub diameter? I am looking to match the hub diameter on a set of wheels, standard Ford hub size of 70.4 mm.

jbontke
Fayetteville, NC, USA
March 09, 2014

On the 4.5" bolt circle rotors, what is the hub diameter? I am looking to match the hub diameter on a set of wheels, standard Ford hub size of 70.4 mm.

Answers

March 11, 2014
EricM
The center hub measures 2.797" OD or 71.04 mm.
1 answers

will this kit fit a 1947 ford 1/2 ton truck? I have a 1947 ford truck with original suspension,will this kit bolt on to it.

47fordtruck
St. Thomas, ON, Canada
October 22, 2013

will this kit fit a 1947 ford 1/2 ton truck? I have a 1947 ford truck with original suspension,will this kit bolt on to it.

Answers

October 22, 2013
Jason
No, in 1948 Ford changed out the front spindles, the front spindles on a 47 ½ ton pickup was the same as the passenger car. Speedway offers brake kit part #910-31940 (Ford pattern) or 910-31941 (GM pattern).
1 answers

will this kit work on a F2 3/4 ton? thanks

Big01dog
Mount Airy, GA, USA
August 31, 2013

will this kit work on a F2 3/4 ton? thanks

Answers

September 03, 2013
Jason
The brake kit number 91031914 is for the half ton only and not applicable to the F2 spindles.
1 answers

I purchased your 1955 F100 front drum brake conversion bearing kit for my Ford spindles. In the past, I purchased your 1955 F100 front drum brake conversion bearing kit for my Ford spindles. If I wanted to convert over to disc brakes now, would this kit work without any mods and is it everything I would need?

30Rat
Woodland Hills, Calif.
November 19, 2012

I purchased your 1955 F100 front drum brake conversion bearing kit for my Ford spindles. In the past, I purchased your 1955 F100 front drum brake conversion bearing kit for my Ford spindles. If I wanted to convert over to disc brakes now, would this kit work without any mods and is it everything I would need?

Answers

November 20, 2012
Jason
This brake kit is for the 1948-56 Ford half ton pickup and will NOT work on the early 37-48 Ford passenger spindles. If you used the F1 front kit for brakes on your 37-48 Ford passenger car or pickup spindles then you would need a brake kit for those spindles such as number 91031945 or 91031940 offering the Ford 4 1/2 bolt pattern and also available with the Chevy bolt pattern.
1 answers

Will the original wheels clear the calipers or do you have to get new wheels.

January 03, 2012

Will the original wheels clear the calipers or do you have to get new wheels.

Answers

January 09, 2012
John
Rotor diameter is not the only factor for wheel fit verification. The 4 ½ and 4 ¾ rotors are 11” whereas the 5 ½ pattern are 11 ¾”. If you lay a 12 ruler on the inside of your wheel and measure down to the bolt surface where it will bolt onto the hub anything over ¾” will require spacing the wheel out from the hub/rotor in order to achieve caliper clearance.
1 answers

I've been looking into getting this conversion and was just curious if the braking system requires a portioning valve of some sorts or brake booster built in to the system or some sort of dual reservoir? Just cause I've been told and read that disk brakes

backwoodsford
October 13, 2011

I've been looking into getting this conversion and was just curious if the braking system requires a portioning valve of some sorts or brake booster built in to the system or some sort of dual reservoir? Just cause I've been told and read that disk brakes

Answers

October 14, 2011
John
Part number 91031914 Disc brake do require more fluid than drum brakes and also more pressure to the calipers. You will need to install a proportioning valve such as part number 91031353 in the line going to the rear brakes to cut down the pressure and eliminate rear wheel lock up on hard braking and allow for all four wheels offering even stopping power. An additional and recommended option would be a dual reservoir master cylinder for the safety benefit offered. If opting for this the large reservoir is always plumbed to the front disc brakes. Without a booster a 1” bore is largest recommended and is similar to your existing master cylinder dimensions. Pedal travel and pedal pressure requirement will increase slightly when going to front disc brakes as compared to four wheel drum.
2 answers

Will this disc brake kit be strong enough for a 1956 ford f800 firetruck brake conversion? What would work for that?

Fyretruck
Jacksonville, FL
May 08, 2011

Will this disc brake kit be strong enough for a 1956 ford f800 firetruck brake conversion? What would work for that?

Answers

May 14, 2011
Marteck
Your truck has a much larger bolt pattern for the backing plate. Plus the spindle and brakes are both much larger. Ford put disc brakes with king pin spindles on big trucks from about 1980 on. Ford used the same diameter king pins on the 1/2 and 3/4 trucks for many many years so the big trucks could follow the same pattern just larger. Just go to Napa ask for a kit and compare the diameter of your 56 spindle to a newer F7 or 800 spindle in a kit. Have fun.
May 14, 2011
Jack
This kit is for 1/2 ton pickups therefore it would not fit your application, and would not have sufficient brake area for a vehicle of that weight and size.
