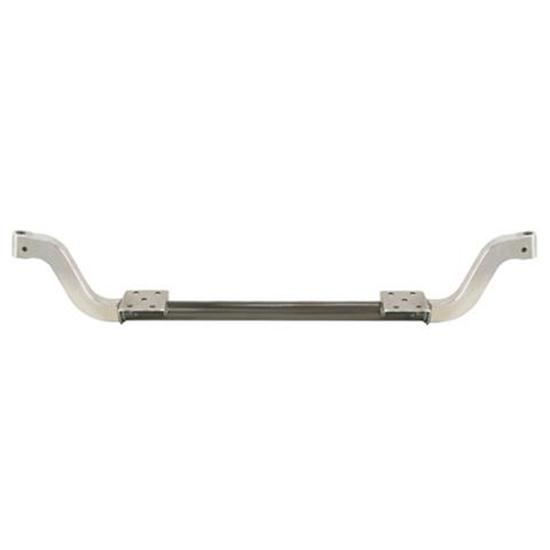

1947-54 Chevy/GMC Pickup Dropped Axle

SAME DAY SHIPPING! Order within the next 9 hours 46 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Drop:
3.00
Perch Centers:
26.75
Garage Sale:
No
King Pin Centers:
50.5
Spindle Type:
Chevy
1947-54 Chevy/GMC Pickup Dropped Axle
1947-54 Chevy/GMC Pickup Dropped Axle
1947-54 Chevy/GMC Pickup Dropped Axle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Our 3" dropped axle for your classic '47-'54 Chevy half-ton pick-up will get the front end down where you want it. The center portion of the axle is made of 2" DOM tubing while the ends are CNC milled for solid steel. These axles give you 3" of drop.

The Chevy axles require the steering arm to be modified to accept rod ends or tie rods. U-bolts sold separately.

  • King pin to king pin centers = 50.5"
  • 6" drop measured from spring pad to spindle boss center
  • Axle accepts a 1-3/4" wide spring
  • Spring pad center-to-center = 26.75"
  • Center to center of u-bolt holes is 2.30" side to side
  • Center to center of u-bolt holes front to rear is 3.195"
  • Spring pad width is 29.072" center to center of the outer U-bolt holes
  • Axle Kingpin Boss Height:  2-7/16" (2.438")
  • Axle will provide a camber reading of -1.5 degrees

Application

  • King pin to king pin centers = 50.5"
  • 6" drop measured from spring pad to spindle boss center
  • Axle accepts a 1-3/4" wide spring
  • Spring pad center-to-center = 26.75"
  • Center to center of u-bolt holes is 2.30" side to side
  • Center to center of u-bolt holes front to rear is 3.195"
  • Spring pad width is 29.072" center to center of the outer U-bolt holes
  • Axle Kingpin Boss Height:  2-7/16" (2.438")

Notes

  1. Due to differences in OEM manufacturing, kingpin bearings measuring ½” thick will NOT work with this axle. If you have this size bearing, you will also need to order our Kingpin Kit 910-32130. The thrust bearing in this kit measures .225" thick. Also included is a .315" spacer (if needed). Normal shims and a shim kit are also included.

Specs

  • King pin to king pin centers = 50.5"
  • 6" drop measured from spring pad to spindle boss center
  • Axle accepts a 1-3/4" wide spring
  • Spring pad center-to-center = 26.75"
  • Center to center of u-bolt holes is 2.30" side to side
  • Center to center of u-bolt holes front to rear is 3.195"
  • Spring pad width is 29.072" center to center of the outer U-bolt holes
  • Axle Kingpin Boss Height:  2-7/16" (2.438")

Customer Reviews

This product has no reviews.

Product Q&A

12 questions : 12 answers

1 answers

Hi will this fit a 45 chevy 1/2 got told 42-55 take that same axle thanks

Samschev
New Zealand
February 05, 2015

Hi will this fit a 45 chevy 1/2 got told 42-55 take that same axle thanks

Answers

February 05, 2015
EricM
To use axle number 9104754 on your '45 Chevy we suggest you first measure your perch centers for the leaf springs and compare to the 26.75" center to center on this axle. Also this axle is 50.5" kingpin center to kingpin center as another comparison. There is controversy on the spindles being the same as far as camber angle built into the axle and the spindles but if you are confident the spindles are interchangeable and the dimensions are correct then it could be used.
1 answers

would i replace the original springs or leave them I am using a 1951 chevy truck frame with modifyed El camino rear suspention with 3" drop springs. I need to drop the front end approx. 3-4". I want to use this axle withe the disc brake kit and the power steering conversion but use a manuel steering box. the bodie is a 1927 buick coupe which will have a removable top. what are your thoughts or sugestions?

chevyredo
Houma La.
May 08, 2014

would i replace the original springs or leave them I am using a 1951 chevy truck frame with modifyed El camino rear suspention with 3" drop springs. I need to drop the front end approx. 3-4". I want to use this axle withe the disc brake kit and the power steering conversion but use a manuel steering box. the bodie is a 1927 buick coupe which will have a removable top. what are your thoughts or sugestions?

Answers

May 08, 2014
EricM
This axle will work fine to drop your 51 Chevy pickup frame 3" and will use the stock springs. We suggest replacing the kingpins during installation using kit 91032130. Disc brake kit 91031916 will work well along with drop axle.
1 answers

I have a 41 chevy half ton will this axle fit?

truck
March 14, 2013

I have a 41 chevy half ton will this axle fit?

Answers

March 14, 2013
Jason
This axle will not work on the earlier years because of spring pad location and axle width. Our website has a list of dimensions for comparison under the “Specs” tab on the main page for comparison to your axle needs. If wanting a dropped axle on your ’41 you may want to consider part number 91035115 or 91035117 along with a pair of spring pads number 91635009 and the U-bolts. This axle would take the 49-54 passenger car spindles we offer under part number 91032100 and the coordinating brake kits.
1 answers

Will this axle work on a 37 pickup truck?

Sunnfjordingen
January 04, 2013

Will this axle work on a 37 pickup truck?

Answers

January 04, 2013
Jason
This axle will not work on the earlier years because of spring pad location and axle width. Our website has a list of dimensions for comparison under the “Specs” tab on the main page for comparison to your axle needs. If wanting a dropped axle on your ’37 you may want to consider part number 91035115 or 91035117 along with a pair of spring pads number 91635009 and the U-bolts. This axle would take the 49-54 passenger car spindles we offer under part number 91032100 and the coordinating brake kits.
1 answers

will 3/4 ton spindles work with this axle?

norwood, mo.
September 17, 2011

will 3/4 ton spindles work with this axle?

Answers

September 19, 2011
John
These axles are specific to the ½ Ton 1947-54 Chevy and GMC pickups using the .867 diameter king pins. During these years there was a difference in king pin boss height and we suggest ordering our king pin set number 91032130 that utilizes a thinner thrust bearing and also includes the necessary spacers and shims for ease of assembly. You many want to get an accurate dimension of your king pins for possible use. The axle boss geometry is approximately 7 ¼ degree of lean inward of the king pins.
1 answers

will this axle fit a 1931 chevy truck?

July 01, 2011

will this axle fit a 1931 chevy truck?

Answers

July 06, 2011
John
These dropped axles are direct fit to the 1947-54 Chevy half ton pickups and will not work with the earlier years. Width, king pin diameter, and camber angle built into the axle ends is different. If wanting a dropped axle on the earlier 1931 Chevy pickup you may want to consider a plain dropped tube axle such as our part number 91035115 which is 4” drop or also a 6” drop is available under part number 91035117. The original spindles will NOT work on these axles and you would also need to purchase our Chevy spindles under part number 91032100 and the appropriate disc brake kit to make it a complete assembly. The axles are bare and for mounting to the parallel leaf springs in your truck you would also need the spring pads number 91635009, U-bolts, and any related hardware.
1 answers

will it work on my 55 1/2

tampa fl
December 08, 2011

will it work on my 55 1/2

Answers

December 08, 2011
Zach
Speedway part number 9104754. I'm sorry to say that I do not know if it will work on your pickup. I can only go by the year range they are biult for, which is 1947 to 1954. The kingpin inclination angle, axle boss height, width of the axle, etc may vary from what your original axle is.
1 answers

i have a 65 chevy van with a straight axle.will this product work for me van?

February 17, 2011

i have a 65 chevy van with a straight axle.will this product work for me van?

Answers

February 21, 2011
Waymon
This axle is manufactured for the 1947-1954 Chevy and GMC pickup, and will not work for you application.
1 answers

Is this compatible with a 1955 first series 1/2 ton pick up (it looks like a 1954 five window)?

Creekside
May 01, 2015

Is this compatible with a 1955 first series 1/2 ton pick up (it looks like a 1954 five window)?

Answers

May 05, 2015
John
Expert
Many customers prefer to use the lowered springs as compared to the axle that runs negative camber. The easy way to tell if you have the first series is by the spring width. The 47-54 use 1.75" wide springs and the 55-59 use a 2" wide front spring. Plus lowering the truck 3" the 580441 for the 47-54 or the 580445 for the 55-59 gives a way better ride than the stock multi-leaf springs and they come with new U-bolts.
1 answers

Do you have means of determining which of your axles would be best suited to a 1949 International kb-1 pickup?

Steve
Southern Idaho
June 06, 2015

Do you have means of determining which of your axles would be best suited to a 1949 International kb-1 pickup?

Answers

June 08, 2015
Steve
Expert
I'm sorry, I don't know if that axle will fit your International. The dimensions for this axle are listed below so that you can compare to that of your kb-1 pickup. We have a universal axle kit in several hub to hub measurements. King pin to king pin centers = 50.5" 6" drop measured from spring pad to spindle boss center Axle accepts a 1-3/4" wide spring Spring pad center-to-center = 26.75" Center to center of u-bolt holes is 2.30" side to side Center to center of u-bolt holes front to rear is 3.195" Spring pad width is 29.072" center to center of the outer U-bolt holes Axle Kingpin Boss Height: 2-7/16" (2.438") Axle will provide a camber reading of -1.5 degrees King pin to king pin centers = 50.5" 6" drop measured from spring pad to spindle boss center Axle accepts a 1-3/4" wide spring Spring pad center-to-center = 26.75" Center to center of u-bolt holes is 2.30" side to side Center to center of u-bolt holes front to rear is 3.195" Spring pad width is 29.072" center to center of the outer U-bolt holes Axle Kingpin Boss Height: 2-7/16" (2.438")
