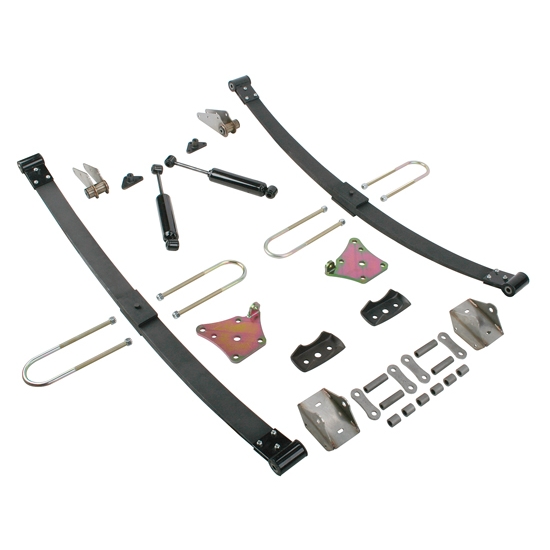

1942-48 Ford Composite Leaf Spring Rear Suspension Kit

1942-48 Ford Composite Leaf Spring Rear Suspension Kit

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Give your 1942-48 fat-fendered Ford state-of-the-art ride and handling with the Speedway composite leaf rear suspension kit. Composite springs are the new wave of performance spring material. They are lighter than steel, respond faster, last up to 5 times longer, and will not rust or corrode like traditional leaf springs. The monoleaf design also ensures noise- and friction-free performance, while providing the softest, smoothest ride imaginable.

Kits include a pair of springs, stainless steel mounting brackets, gas-charged shock absorbers, and hardware. Order optional bolt-on rear sway bar 91643500 for increased handling control.

  • Monoleaf design is free of interleaf friction & squeaks
  • Springs will not corrode and are paintable
  • Stainless brackets can be polished
  • Brackets add much needed reinforcement to rear of frame
  • Spring rates matched to application
  • Smooth ride
  • Gas charged shocks

Instructions (PDF)



Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

Dimensions, spring rate and instructions? Hello, Is it possible to get the instructions and any available information on dimensions of springs and spring rate? Thank You!

1 answers
KustomKevin
February 23, 2015

Dimensions, spring rate and instructions? Hello, Is it possible to get the instructions and any available information on dimensions of springs and spring rate? Thank You!

Answers

February 25, 2015
EricM
The springs in this kit are 260 pound spring rate. You can view the instructions for this kit here: http://static.speedwaymotors.com/pdf/91049942pdf.pdf Spring measurements are as follows: 47" long center to center 18" long front segment (center of front bushing to centering pin) 2 1/4" wide spring 5 9/16" arch to bottom of spring 3 3/4" arch to top of spring 1/2" centering pin 2 3/4" wide bushings 1/2" ID hole in bushings

Will these work with the stock axle?

1 answers
46sedan
May 27, 2014

Will these work with the stock axle?

Answers

May 29, 2014
EricM
The axle pads that will require welding to the housing are for 3” axle tubes and you will need to shim as needed when welding to your axle tubes. Otherwise the rest of the kit should work according to the instructions.
