Deluxe 1942-48 Ford King Pin Set

SAME DAY SHIPPING! Order within the next 13 hours 30 minutes and receive same day shipping

Free Shipping Free Shipping
Deluxe 1942-48 Ford King Pin Set

Click image to enlarge

Please note the following about this product:

  • This item is sold as a set.

Details

Reviews (8)

Q & A (8)

What's in the Box

Info

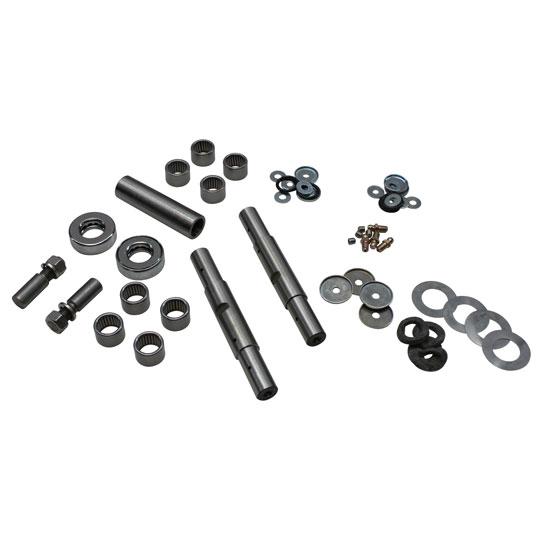

Speedway deluxe king pins are a great improvement over stock-style king pins. They replace the original brass king pin bushings with precision needle bearings that provide superior strength, better lubrication and easier steering. They're simple to install and are an easy, cost-effective way to upgrade your 1942-1948 Ford suspension, as well as tubular or I-beam street rod axles using 1942-48 Ford spindles.

Spindle Identification Chart (GIF)

910-32116 Instructions (PDF)

Customer Reviews

Rated 4.5 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
5
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Gene
Verified Purchaser
Marietta ga

Grease zert

March 04, 2016
The grease fittings are wrong I contacted tech support with no help
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Gene, we're sorry to hear that you had problems with the grease zerks in this kit. We've contacted you directly for more details on what you've found, and look forward to working with you to resolve any other outstanding concerns.
Papo
Verified Purchaser
Kyle, TX, USA

Great product, well made components, all

September 07, 2014
Great product, well made components, all necessary parts included. I think an improvement would be to utilize one longer needle bearing in the top spindle bore and one longer needle bearing in the lower spindle bore rather than the two small needle bearings in each spindle boss. Also, to prevent the possibility of the bearing assembly getting loose in the bore why not use the original grease fitting holes to install a set screw that would lock the bearing outer race in place.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Johnnie
Verified Purchaser
Burleson, Texas

Easy Steering

August 06, 2012
This product was easy to install with good instructions and a suppied tool. The 28 Ford pickup steers like it has power assist at all speeds. Best upgrade I have ever seen.
Pros:
  • Easy To Install
  • Improves Handling
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Johnnie
Verified Purchaser
Burleson, Texas

Easy Steering

August 06, 2012
This product was easy to install with good instructions and a suppied tool. The 28 Ford pickup steers like it has power assist at all speeds. Best upgrade I have ever seen.
Pros:
  • Easy To Install
  • Improves Handling
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Midwest Rod
Verified Purchaser
Missouri

GREAT fit and EASY install!

May 05, 2012
Be truthful with yourself before buying the stock bushing kit.....can you do it 100% by yourself? If not, GET THIS KIT! After wrestling with stock bushings, I pitched that kit and got this one. Incredible. Save yourself a mess of time and fiddling and buy this the first go-round.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Scott
Verified Purchaser
Silt, Colorado

Great alternative to bushed kingpins

September 09, 2011
This is a great alternative to traditional bushed kingpins. Easy to install at home with no special tools, saving time and money compared to machine shop honing. Fully greasable, better functioning.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

teamcow
Verified Purchaser
topeka, ks

Deluxe King Pin Kit

March 30, 2011
A excellent kit that is very easy to install.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bottle
Verified Purchaser
Belvidere Ill

Good Stuff

November 21, 2010
It fit great and work well
Pros:
  • Improves Handling
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 8 answers

1 answers

will this kit fit a 47 ford 1/2 ton pickup or is it just for cars ?

macgyver
Connecticut, USA
November 26, 2014

will this kit fit a 47 ford 1/2 ton pickup or is it just for cars ?

Answers

November 28, 2014
EricM
This king pin kit will also fit the 42-52 Ford half ton pickups.
1 answers

I need king pin bushings for a 1" dia king pin. Can you furnish these? My bushings measure about 1" id x 1.115" od x 1 3/8" long

Kurtis
May 17, 2014

I need king pin bushings for a 1" dia king pin. Can you furnish these? My bushings measure about 1" id x 1.115" od x 1 3/8" long

Answers

May 19, 2014
Travisp
King pin kits such as 91032116 is designed to fit in a 42-48 Ford passenger spindles boss and axle boss of .813. The spindles themselves have a boss of approximately 15/16” to compensate for the needle bearing cage or the extra dimension created by the bushings. If using the original bushings they will require reaming to mate to the kingpin size.
1 answers

This product says it will fit up to a 48 ford truck. Will then it also fit 48-52 F-1?

eddieP
Clarksville TN
September 16, 2012

This product says it will fit up to a 48 ford truck. Will then it also fit 48-52 F-1?

Answers

September 17, 2012
John
This kit will also fit the 48-52 F-1 half ton pickups.
1 answers

what is the dia. and length of this king pin. mine is 6" long and 1" dia.

September 09, 2011

what is the dia. and length of this king pin. mine is 6" long and 1" dia.

Answers

September 12, 2011
Jason
This king pin is .813" in diameter and 6" long
1 answers

Will this kit fit a 1950 ford 1/2 ton pick up?

Ken
Katy,tx
January 31, 2011

Will this kit fit a 1950 ford 1/2 ton pick up?

Answers

February 07, 2011
Waymon
The 1942-1948 FORD DELUXE KING PIN KIT, Item #: 91032116. will not work for you. You need the 1948-52 Ford Half-Ton Pickup Kingpins, Item #: 91032124. This kit will work perfectly on your 1950 Ford 1/2 ton pickup truck.
1 answers

What are the O.D., I.D. and length of the bushings?

Rick
Troy, MI
August 20, 2015

What are the O.D., I.D. and length of the bushings?

Answers

August 21, 2015
Andy
Expert
The needle bearings in this kit measure 0.941" OD. They fit to a shaft OD of 0.686". The length is .620".
1 answers

Do I need to modify my stock axle or spindle to fit this kingpin set outside of removing the stock worn out bushings? wondering if it requires any machine work to the bores that would add to the overall cost. 1947 Ford Sedan

Adam
Des Moines, IA
January 26, 2016

Do I need to modify my stock axle or spindle to fit this kingpin set outside of removing the stock worn out bushings? wondering if it requires any machine work to the bores that would add to the overall cost. 1947 Ford Sedan

Answers

January 26, 2016
Zach
Expert
The only machine work will entail reaming the bushings. This is a standard procedure that is part of fitting new king pins to old spindles.
1 answers

On one side i have just a little bit of movement. they are new aftermarket spindles i bought here and the axle is original. what do i do to get rid of the small amount of play?

tlamott
April 10, 2016

On one side i have just a little bit of movement. they are new aftermarket spindles i bought here and the axle is original. what do i do to get rid of the small amount of play?

Answers

April 11, 2016
John
Expert
The wedge pin or bolt as referred to should take play from the axle but if not the wear in the axle itself is extreme. In the spindles we offer the round faced 37-41 style under number 91032104 as an example and these spindles would take the part number 91032115. Part number 91032116 which is in question would be for the 42-48 but 1/2" too long at 6" instead of 5 1/2". If still in question let us know and we can furnish dimensions.
