1942-1948 Ford Car Tail Lights

Specs
Sold in Quantity:
Each
Lens Color:
Red
Bulb Type:
1157
Gasket(s) Included:
No
Overall Height:
2.750
Overall Width:
5.125
Overall Thickness:
.750
Voltage:
12
Notes
Housing measures 2.5" x 1.75" on back side. Our 1.75" LED bulbs will NOT fit this taillight.
1942-1948 Ford Car Tail Lights
1942-1948 Ford Car Tail Lights
1942-1948 Ford Car Tail Lights
1942-1948 Ford Car Tail Lights

Click image to enlarge

Details

Reviews (4)

Q & A (5)

What's in the Box

Info

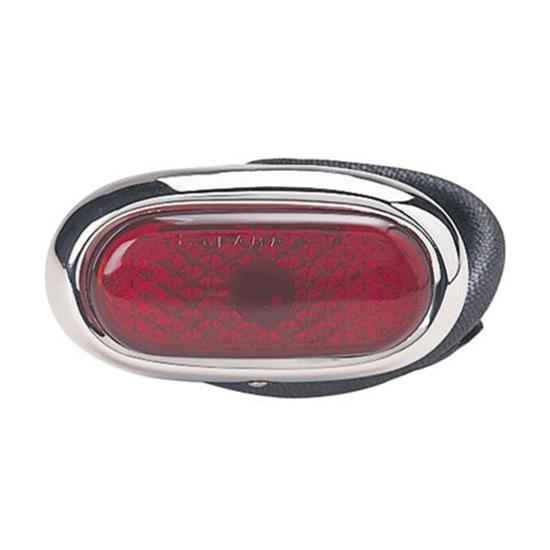

Duplicate of original 1942-1948 Ford passenger car taillights with polished stainless steel housings complete with red glass lens. Uses a single 1157 dual filament bulb (included). Mounting gasket NOT included.

  • Highly polished stainless steel housing & rim
  • Cloth braided wire loom
  • 12 volt bulb
  • Red glass lens

Item Details

Mount gasket not included.

Customer Reviews

Rated 4.5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Filo
Verified Purchaser
Verified Reviewer
Lyon, FRANCE

perfect

October 07, 2015
this product is perfect for my application
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

vette
Verified Purchaser
cowtown, Texas

excellent quality, I would buy again

August 12, 2015
Wish you could buy with blue dots, mounting hardware should be included.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tim
Verified Purchaser
Verified Reviewer
Iowa

Great product,ached picture perfectly

May 26, 2015
Matched perfectly, had an issue but Speedway took care of problem with no questions, impressed with the help and service.
Pros:
  • Matched Original Perfectl
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

flatout
Verified Purchaser
central coast california

Appears to be high quality and will look

March 08, 2015
Great looking and well made, wiring is very nice. Overall a very good product, much better than the 39 ford lights I bought a few months ago for another project so I was quite pleased with these lights. as always Speedway comes through with great products.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 9 answers

2 answers

will these lights be able to have stops, directional and parks

brooks
February 19, 2013

will these lights be able to have stops, directional and parks

Answers

March 09, 2015
flatout
It appears it will work for all three...haven't installed them yet
February 20, 2013
Jason
The 1942-48 tail lights number 91137019 feature a dual filament 1157 style bulb with one filament serving for the tail lights/park lights and the other brighter filament function is for stop/turn signal use. This is common on most vehicles with a single dual filament bulb on both sides at the rear.
2 answers

hi, is the price for each (1) or a pair?

cleve
chiang mai, thailand
December 30, 2010

hi, is the price for each (1) or a pair?

Answers

March 09, 2015
flatout
sa wadi............the price is for each light....the gasket set is for 2 gaskets but are sold separately and I recommend buying them for the proper fit.
January 03, 2011
Betsy
This is the price for each individual taillight.
2 answers

Can this tail light be mounted on a flat surface?

November 02, 2011

Can this tail light be mounted on a flat surface?

Answers

March 09, 2015
flatout
yes
November 03, 2011
John
Part # 91137019 This tail light will mount to a flat surface but there needs to be an opening in the surface to accommodate the housing which has dimensions of 2 ½” wide by 1 ¾” tall and also sufficient area behind the panel for the depth of the housing which is 2 ¾” deep. These lights originally mounted on the fender extension on the 1942-48 Ford cars. If looking for a surface mount you may want to consider part number 91137003.
2 answers

Is this ground through the housing? Which wire is for the turn signals and which is for the tail light? I'm using this light on a 23 Model T mounted in the turtle deck so I'm rewiring the whole car.

Harv
Central Pa.
July 27, 2015

Is this ground through the housing? Which wire is for the turn signals and which is for the tail light? I'm using this light on a 23 Model T mounted in the turtle deck so I'm rewiring the whole car.

Answers

October 15, 2016
bofg
Just installed these lights today, they are supposed to ground through the housing but couldn't get mine to work, had to drill out the rivet on one side of the housing and attach a wire with a sheet metal screw through the hole where the rivet was located and run it to ground.. also the green wire was for stop and the black for tail lights...
July 28, 2015
Zach
Expert
Yes these are case grounded, green should be your running lamp and black is the stop lamp. We recommend checking them first to make sure.
1 answers

Hi. Can anyone tell me the approximate length and width? I would be using these for a custom,the depth is unimportant. THANKS

keith in michigan
michigan
July 02, 2016

Hi. Can anyone tell me the approximate length and width? I would be using these for a custom,the depth is unimportant. THANKS

Answers

July 05, 2016
Charles
Expert
This tail light is 5.125" long, 2.75" tall, and .75" thick.
Page 1 of 1
