1941-1948 Chevy Tail Light Assembly

Specs
Material Type:
Steel
Sold in Quantity:
Each
Lens Color:
Red
Bezel Finish:
Stainless
Bulb Type:
1157
Gasket(s) Included:
Yes
Overall Height:
-
Overall Width:
5.9
Overall Thickness:
2.95
Center to Center:
-
Mounted Height:
.679
Voltage:
12
MFG. Part #:
C4003L
Overall Length:
5.889
Notes
Requires a 3.44" x 1.69" mount hole.
1941-1948 Chevy Tail Light Assembly
1941-1948 Chevy Tail Light Assembly
1941-1948 Chevy Tail Light Assembly
1941-1948 Chevy Tail Light Assembly
1941-1948 Chevy Tail Light Assembly

Click image to enlarge

Details

Reviews (13)

Q & A (7)

What's in the Box

Info

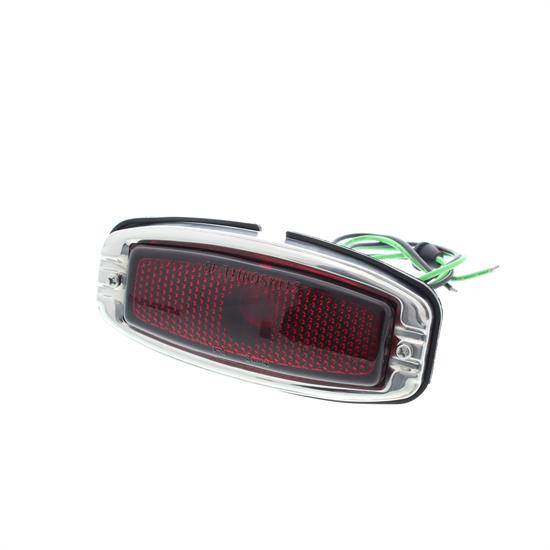

High quality, true replica of the 1941-1948 Chevy passenger car tail light assembly. Polished stainless steel rim, red glass lens, steel housing. 12 volt.




Customer Reviews

Rated 4.8 out of 5 by 13 reviewers.
RATING BREAKDOWN
13 reviews
5 Stars
10
4 Stars
3
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Gray tub
Verified Purchaser
Illinois

Tail light assembly,41 chev

February 06, 2016
Used it for a third brake light, on my '28 tub. Works great people really notice! Even local patrol who commented positively!
Full Size Image

Was this review helpful? 0 0

backwoods
Verified Purchaser
palermo ny

Nice part.... Made overseas..

February 08, 2015
Made overseas... Wish it said so online... Nice part
Pros:
  • NICE PART
Cons:
  • made overseas
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mw2158
Verified Purchaser
Il

Nice p[roduct

October 11, 2014
These are great lights, the body of the light is good heavy material with quality chrome plating. Even the rubber gasket is a good pliable material that will actually create a seal when installed. I opted to purchase a set of "blue dot" lens" so I can switch for a different appearance on my truck.
Pros:
  • Quality
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

RhodeMstr66
Verified Purchaser
Oakdale, CA

Right vs. Left?

October 05, 2014
Boxes are marked left and right but lights are not marked and I can see no difference comparing them side by side.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dales38
Verified Purchaser
Crofton, NE 68730, USA

Top quality tail light assembly

July 26, 2013
I was very impressed with the tail light assembly quality.
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Decoy
Verified Purchaser
San diego,Ca

New tail lights for my Plymouth custom

April 25, 2012
Happy with the product.
Pros:
  • Can Withstand Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

chopper526
Verified Purchaser
Philly, PA

Lights out value!

March 10, 2012
Great price compared to other vendors, quality construction, looks nice.
Pros:
  • Quality first
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Spike
Verified Purchaser
Pierz, MN

I would buy this product again

January 14, 2012
Looks and works great
Pros:
  • Very Well Built
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Flathead Fred
LaCenter WA

Quality exceptional

October 10, 2011
I am very fussy on the items I purchase. These were a great suprise on the quality and fit of each part together
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Flathead Fred
LaCenter WA

Quality exceptional

October 10, 2011
I am very fussy on the items I purchase. These were a great suprise on the quality and fit of each part together
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

7 questions : 12 answers

2 answers

glass lens? Is the lens made of glass or plastic? Debating on getting one to use as a taillight on my motorcycle, and I may either buy a blue dot lens if it is glass, or just put a blue dot in if it is plastic.

94Bird
maryland
March 04, 2015

glass lens? Is the lens made of glass or plastic? Debating on getting one to use as a taillight on my motorcycle, and I may either buy a blue dot lens if it is glass, or just put a blue dot in if it is plastic.

Answers

March 25, 2015
48Chevy
They are glass, if you want blue dot you need to get the replacement lens which is also glass.
March 05, 2015
EricM
This tail light has a glass lens.
2 answers

Is this a combination stop/turn/tail light assembly? The picture shows only 2 wires

Esprit83
February 24, 2015

Is this a combination stop/turn/tail light assembly? The picture shows only 2 wires

Answers

March 15, 2015
Soft48
This is combination stop & tail. The two wires go directly to your existing wires for tail and turn. The ground comes through the housing mounting studs. Use a good star washer under the nut, or add your own ground wire from the stud to the chassis.
February 24, 2015
EricM
This uses a 1157 dual filament bulb. One wire will be connected to your tail light power source and the other will be used for stop and/or turn. In order for the second to be used for both stop and turn your vehicle will have to be wired so that the turn signal will interrupt the brake light circuit when the turn signal is operating. The housing of this light must be grounded to complete the circuit.
2 answers

what is the difference between the left light and the right?

tumbleweed
January 08, 2015

what is the difference between the left light and the right?

Answers

March 15, 2015
Soft48
Minor difference in how the housing and rubber gasket fit to the body. You could ignore it and they would still work. The original Chevy housings had a left and right version. This matches the original fit.
January 09, 2015
EricM
The lens and bezel is the same but the housing and mounting studs are different configuration. Therefore is using on an original 41-48 you need to specify right or left. Light reflector in housing could also vary so if ordering for custom application we suggest ordering one of each.
1 answers

Different Flasher needed? do I need a different flasher for this unit? I can't get my blinkers to work.

Worm
TN
October 07, 2013

Different Flasher needed? do I need a different flasher for this unit? I can't get my blinkers to work.

Answers

October 08, 2013
Jason
Tail light number 91137042 is a 12 volt light utilizing an 1157 bulb and should not require a different flasher if you are using a standard or heavy duty flasher. To require a timed LED flasher you would need to change to LED lights requiring very little current draw.
3 answers

How easy is it to take these lights apart to change the bulb? I am leaning away from the 39 teardrops because of the single piece design. Are these the same way?

May 24, 2011

How easy is it to take these lights apart to change the bulb? I am leaning away from the 39 teardrops because of the single piece design. Are these the same way?

Answers

March 25, 2015
48Chevy
Two screws, one on each side. Tail light frame and lens comes off and can replace bulb very easy. Just like the stock ones in 41-48.
July 27, 2013
Dales38
Changing the bulb is simple. Easy access from the outside by removing the lens ( 2 screws hold the lens in place )
May 25, 2011
John
These tail light housings are retained by two studs going into the body or fender with a nut on the inside. The lens and bezel come off with two screws (one on either end) from the outside to make bulb replacement a simple operation.
1 answers

Whats the length and width? Is it a running light and stop light?

N/A
Twain Harte, CA
November 08, 2015

Whats the length and width? Is it a running light and stop light?

Answers

November 10, 2015
Zach
Expert
These are a 1157 style filament, so they will operate both running lights and stop lights Overall Width: 5.9 Overall Thickness: 2.95 Mounted Height: .679 Voltage: 12 Overall Length: 5.889
1 answers

Green and black wires are unlabeled, which is run and which is stop/turn?

MrFixit
United States
October 26, 2016

Green and black wires are unlabeled, which is run and which is stop/turn?

Answers

October 27, 2016
Eric
Expert
The green wire is stop/turn and the black wire is the tail light (running light).
