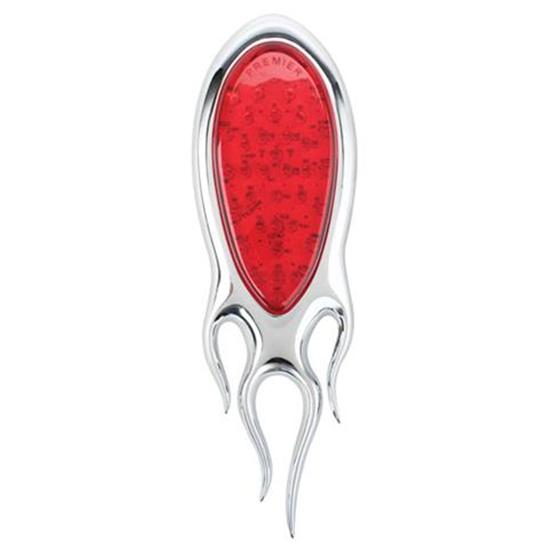

1939 Ford Syle LED Flaming Tail Light

Specs
Sold in Quantity:
Each
Material Type:
Plastic
Lens Color:
Red
Bezel Finish:
Chrome
L.E.D. Color:
Red
Bulb Type:
LED
Overall Width:
2.81250
Overall Length:
8.6250
Overall Thickness:
0.750
Voltage:
12
1939 Ford Syle LED Flaming Tail Light
1939 Ford Syle LED Flaming Tail Light
1939 Ford Syle LED Flaming Tail Light

Click image to enlarge

Details

Reviews (11)

Q & A (4)

What's in the Box

Info

The sky is the limit on these cool 1939 Ford style flaming LED tail lights. Sealed LED unit with 3 electrical leads out the back. Light is surface mounted (flat on the back side). For the attachment, it has 2 studs on the back that will go through existing holes in body or fender and be retained with the provided nuts.

1939 Ford LED Tail Light Installation Instructions (PDF)



Customer Reviews

Rated 3.5 out of 5 by 11 reviewers.
RATING BREAKDOWN
11 reviews
5 Stars
2
4 Stars
6
3 Stars
0
2 Stars
2
1 Star
1
RECOMMEND THIS PRODUCT:

hoodlum
Verified Purchaser
morrisoon,tenn.

excellent

June 28, 2016
very bright
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

June Bug
Verified Purchaser
Jacksonville, Texas

Perfect for project I am doing.

June 06, 2016
Perfect for my golf cart project
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fastjohn
Sulphur Wells, KY

Plastic but so is everything else

March 01, 2016
Used them on my Teardrop Camper they LQQk Good !!!
Pros:
  • Worked For What I Needed
Cons:
  • Becareful Flames Plastic
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

INSANE MEL
Verified Purchaser
Verified Reviewer
Eagan, MN

Quality is falling off...

June 16, 2015
I bought two replacements because the flames broke off using duster, they were 3 years old so no big deal. The replacements have the studs glued in poorly, Speedway was kind enough to send more but they have the same problem. I taped the holes and used my own studs and nuts...they are good to go now!
Pros:
  • Nice Looking Part
Cons:
  • You Thread The Holes
  • The Studs Pull Out
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a gift card to help offset the extra modifications made to this item for proper operation. These comments have been forwarded on to our QC team to further investigate the issue experienced with these axles. We apologize for any inconvenience this may have caused and are always happy to help in any way.
35BFM
Kentucky

Good for the Price

December 14, 2014
Ok, they are plastic and the studs pulled out pretty easily. I just drilled them out and replaced them with flat head stainless screws. They work fine on a system that runs the same wire for brake and turn. You'll have to convert if you run a system with seperate brake and turn wires. Oh, I've seen questions about dummy loads. You should not need them if you are running standard bulbs on the front turn signals. The front turn lamps should, and did on my rat rod, trip the flasher so the signals all work properly. Reasonably bright tail light and really bright brake and turn. So far, I think I'll like them. They do look pretty cool on my old 35 Plymouth.
Pros:
  • Good price
Cons:
  • kind of whimpy plastic
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Weldr1
Pennsylvania

Not an all in one light.

June 07, 2013
My son bought these lights for the cool factor and was assured on the phone two different times that these lights work as brake, tail, and turn. They do not. This is a dual function light. There is no way to wire it to work. Believe me, we tried every possible way and with/without led relay/resistors. It's a shame because he was 15 when purchased and on a tight budget.
Pros:
  • Great looking
  • Bright
Cons:
  • plastic flame tips brittle
  • can't use as a brake turn and tail
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Customer Service issued this customer a credit refund via gift card. We apologize for the inconvenience these brake lights may have caused.
Randy@YatesEFI
Davenport, Iowa

You get what you pay for.

June 01, 2012
I bought these because of... well...the price, and I guess I should have known. They are pretty flimsy like everyone else noted, but once installed that doesn't seem to be a huge issue. My biggest problem with them was that within a few months my left one lost over half of it's LEDs operation and the right one has started acting finicky as well. I recommend you keep on looking past these units.
Pros:
  • Interesting Look
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

After receiving this feedback, the Speedway Motors Customer Service Team quickly refunded this customer for the lights he bought to replace the defective original lights he received.
Hawkeye
Verified Purchaser
Savannah Ga.

Great light

February 19, 2012
Great and looks awsome
Pros:
  • Lightweight
  • Durable
  • Versatile
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

hotrodharrell
Verified Purchaser
Kansas

Looks good

September 11, 2011
I like the looks of these, but in my opinion, they are made rather flimsy. I haven't got them wired up yet so can't review performance.[...]
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jon cat
maryland eastern shore

great for the money

April 25, 2011
i have on my s10 that i take to shows and they alone have won me trophys great product
Pros:
  • Versatile
  • Lightweight
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

4 questions : 6 answers

2 answers

just tail or can they b used as stop tail turn ?

dodger007
February 02, 2013

just tail or can they b used as stop tail turn ?

Answers

June 08, 2013
Weldr1
These lights are dual function and have three wires. That means you can use them as turn/tail, turn/stop, tail/stop, or turn/tail. Not all three at the same time. You need a four wire light as we found out the hard way.
February 04, 2013
Jason
This LED style taillight can also be used as a stop and turn signal. Wiring is as follows: BLACK – TAIL LIGHTS RED – STOP/TURN WHITE – GROUND
1 answers

I need to know how wide it is I only have 2 1/2 in.

Betty Boop
Prescott Valley , AZ.
August 07, 2011

I need to know how wide it is I only have 2 1/2 in.

Answers

August 09, 2011
Jason
This is 2-13/16" wide by 8-5/8" long
2 answers

I want to put them on my t bucket. but I do not have a lot of room between the back of the car and the fuel tank. I have about a half of an inch will they work in that little of space

porkchop
umatilla fl
June 13, 2011

I want to put them on my t bucket. but I do not have a lot of room between the back of the car and the fuel tank. I have about a half of an inch will they work in that little of space

Answers

July 03, 2015
Eric
Expert
These lights have the following dimensions: 2 13/16" W X 8 5/8" LONG The light is 7/8" thick at the red lens portion.
June 16, 2011
John
These lights have the following dimensions: 2 13/16" W X 8 5/8" LONG The light is 7/8” thick at the red lens portion.
1 answers

I have this model (1939 Ford Style LED Flaming Tail Light)already installed and want to replace it with a 39 style tail light WITHOUT the flames. What is available that could be mounted using the existing?

NORTHERNILTBUCKET
IL
February 08, 2016

I have this model (1939 Ford Style LED Flaming Tail Light)already installed and want to replace it with a 39 style tail light WITHOUT the flames. What is available that could be mounted using the existing?

Answers

February 08, 2016
Eric
Expert
We offer a '39 Ford LED tail light 91137014 which is the same size and shape as this light. You will need to cut out the center between the mounting holes to match gasket 75181A13520 in order for the back of that light to be installed.
Page 1 of 1
