Best Gasket 515G-P 1939-48 Flathead GraphTite Big Bore Head Gaskets

SAME DAY SHIPPING! Order within the next 13 hours 33 minutes and receive same day shipping

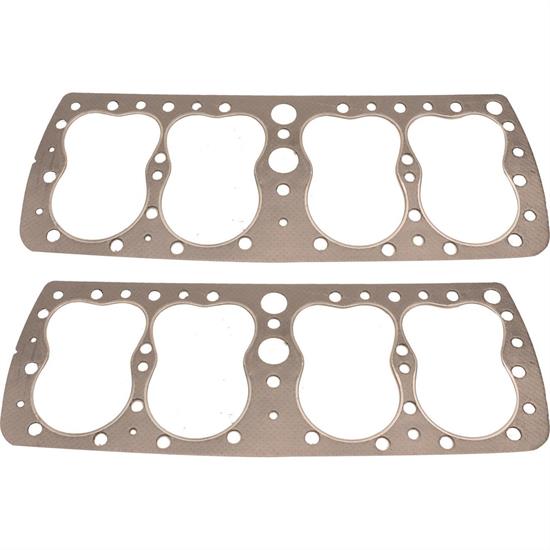

Best Gasket 515G-P 1939-48 Flathead GraphTite Big Bore Head Gaskets

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Head gaskets for use with all bores from 3-1/16" to 3-3/8". Copper (910-15890) or GraphTite (910-15846). For 1939-1948 Flathead Ford big bore head gaskets.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

hello, was just wondering if it is posible to find out what the compressed thickness of the graphtite head gaskets are. there is a spec for the copper ones,but not the graphtites. thank you for your time,nick.

nick nasty.
greenwich, ct.
August 24, 2012

hello, was just wondering if it is posible to find out what the compressed thickness of the graphtite head gaskets are. there is a spec for the copper ones,but not the graphtites. thank you for your time,nick.

Answers

August 27, 2012
Jason
The compressed thickness on part #91015846 is .053" plus or minus .002"
