1939-48 Flathead Big Bore Head Gaskets, Copper

Specs
Material Type:
Copper
Sold in Quantity:
Pair
Compressed Thickness:
.070
Bore Size:
3.375
Notes
Use a spray-on sealer like K&W Copper Coat or Permatex Copper Spray-a-Gasket when installing. Re-torque the bolts/nuts after several warm-up/cool-down cycles.

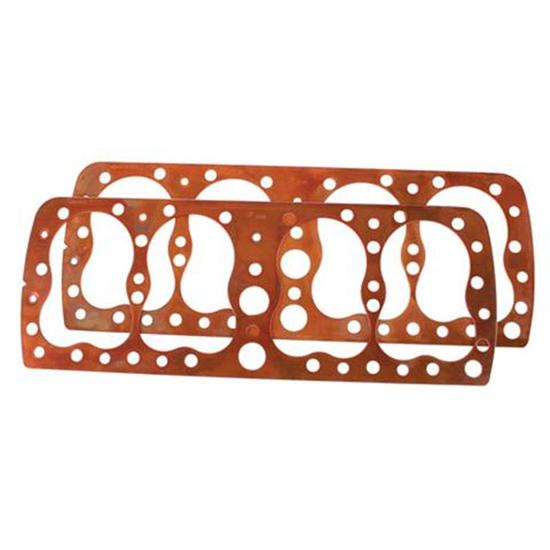

1939-48 Flathead Big Bore Head Gaskets, Copper
1939-48 Flathead Big Bore Head Gaskets, Copper

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Head gaskets for use with all bores from 3-1/16" to 3-3/8". For 1939-1948 flathead Ford V8 engines. The compressed thickness of these gaskets is .070".

910-15890 Instructions (PDF)
