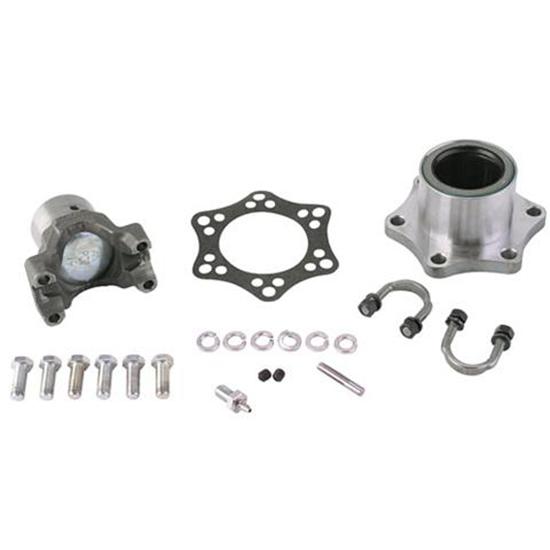

1935-48 Ford 10-Spline V8 Open Drive Conversion Kit

1935-48 Ford 10-Spline V8 Open Drive Conversion Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

If you're building a nostalgia rod and want to run a modern tranny with your torque tube banjo rear end - here's your answer! This open drive conversion allows you to keep your 1935-48 Ford rearend intact and run a normal driveshaft. This is a bolt-on kit that fits the common 10-spline pinion and requires no machine work.

Item Details

For 10-spline pinion
(uses 1350 style U-joint)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Lemmons
Verified Purchaser
Jarrell texas
Product Rating

Excellent fit, very easy to install

March 08, 2015
good machine work for all of the components and very good instructions makes for an easy installation
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
9191106

Product Q&A

1 questions : 2 answers

2 answers

convert a 35 ford trasmission to open driveshaft.Help.

11high
new york
June 20, 2011

convert a 35 ford trasmission to open driveshaft.Help.

Answers

March 09, 2015
Lemmons
The speedway kit is an easy answer for this problem, The only hiccup is the old drive shaft is sometimes a little difficult to remove. The new parts are really very good and easy to install.
June 22, 2011
John
We offer an open drive conversion kit for the rear end of 35-48 Fords under part number 9191106. Currently we do not offer a transmission conversion kit for the same vehicles. You may want to contact the Hot Rod Works to see if such a kit is produced and if so the nearest vendor.
Page 1 of 1
