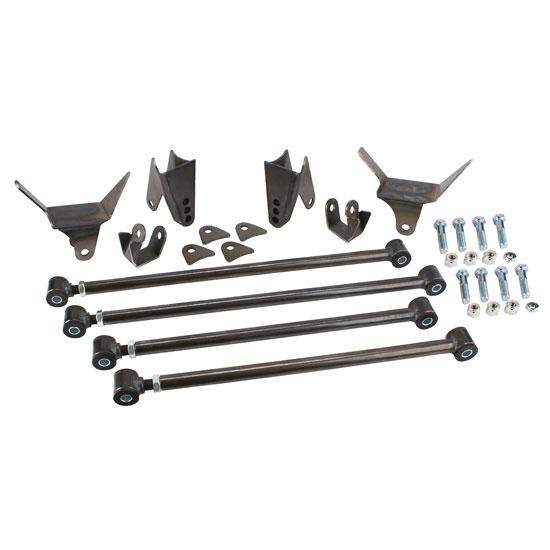

1933-34 Ford Triangulated Rear 4-Link Kit

Free Shipping Free Shipping
1933-34 Ford Triangulated Rear 4-Link Kit
1933-34 Ford Triangulated Rear 4-Link Kit
1933-34 Ford Triangulated Rear 4-Link Kit

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (1)

Q & A (4)

What's in the Box

Info

Trianglated rear 4 link kit made for '33-'34 Fords that fits a 3" axle tube. Mounts the forward brackets to the inside of your frame and eliminates the use of a Panhard bar. Adjustable bars feature urethane bushing rod ends. Three-position adjustable shock mount makes it easy to set the proper ride height.

Sold as a kit.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

carbuilder
Verified Purchaser
Ephraim, Utah

triangulated 4 bar

November 04, 2016
We modified this kit to use on a 35 Dodge pickup. We only needed to trim the frame mounts slightly and it worked out well.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Dose this kit come with instructions

Flash
Temecula, CA, USA
April 20, 2013

Dose this kit come with instructions

Answers

April 22, 2013
Jason
We apologize for the inconvenience but instructions are not included in kit number 91633TR4. With the variations of frames used and the housings that can be used the location for the mount brackets varies considerably. Basic mock up on your chassis with proper pinion angle should easily indicate correct location for the brackets keeping the four bars parallel to the ground at ride height.
1 answers

how long are the bars in this kit??

Greasy_D
Camrose, Canada
June 03, 2011

how long are the bars in this kit??

Answers

June 08, 2011
John
Currently we do NOT have these in stock for dimension verification. You may want to check with LRS direct for the dimensions requested.
1 answers

I would like to know the length and diameter of the bars. I have a '33 Buick and need to know if I can make this kit work

Newberg, or
August 04, 2011

I would like to know the length and diameter of the bars. I have a '33 Buick and need to know if I can make this kit work

Answers

August 05, 2011
Jason
The bars are 20-1/2" and 24-1/2" from center of bolt to end of tube. Tube end has adjustable end that will add 1-1/2" to 2-1/2" in length. These are 1" od tubes
1 answers

hi,i have a 33 ford pickup with a original frame boxed . will your rear 4 link triangulated kit work ? also need a set of rear shocks . thanks

dc
losangeles
September 25, 2016

hi,i have a 33 ford pickup with a original frame boxed . will your rear 4 link triangulated kit work ? also need a set of rear shocks . thanks

Answers

September 30, 2016
John
Expert
These kits will work with a boxed frame and the upper mounts may require modification to your K member depending on the style and how it is installed.
Page 1 of 1
