1933-1934 Ford Front Fenders

Specs
Material Type:
Fiberglass
Overall Length:
57.00
Sold in Quantity:
Each
Garage Sale:
No
Arc Length:
67.50
Notes
Front width: 32.75" Rear width: 16.00"

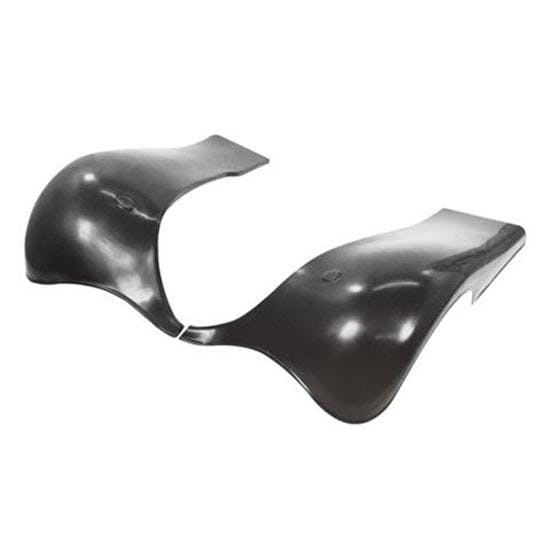

1933-1934 Ford Front Fenders

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

All passenger models. Designed to be a direct replacement fender with OEM dimensions. Fiberglass. Left or right available. Truck freight.

This product is usually in stock. However, if it is not, please allow three to four weeks for delivery.

Truck Freight Shipping Charges Apply - click here for details

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Agent911
Verified Purchaser
Phoenix, AZ, USA
Product Rating

Picture This!

July 28, 2014
Packaging was Great but tracking freight was difficult, to my surprise the fenders were white as apposed to black in all the catalog pictures!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

33 versus 34 Isn't there a difference between a 1933 fender versus a 1934? I think it has to do with fitting against the different grills.

1 answers
RickSuperak
Colorado Springs, CO, USA
December 22, 2014

33 versus 34 Isn't there a difference between a 1933 fender versus a 1934? I think it has to do with fitting against the different grills.

Answers

December 22, 2014
EricM
The 33 Ford passenger car fenders are the same even though there are other different corresponding parts. The 33 grille had cow catcher inside bars where the 34 had straight. The outside was the same. The 33 Ford hood had a single handle in the center and curved louvers as composed to the 34 with a handle front and rear and straight louvers.

will these fit on a 1932 ford roadster frame?

2 answers
JamestheFifth
July 16, 2013

will these fit on a 1932 ford roadster frame?

Answers

September 20, 2013
traces33
as far as i know they wont fit. the 33 and 34 are a fit only years.
July 17, 2013
Jason
The Speedway fenders for the 33-34 Ford passenger car number 9003430 will not fit on a ’32 roadster frame. The 32 fenders lay flat on the frame rail whereas the 33-34 use an inner fender to bolt to that then bolts to the frame. The frames are of different widths and mount configuration for the fenders.

Please provide me the measurements of the fender lengths and widths.

1 answers
fnapres
Cherryville, NC, USA
March 05, 2013

Please provide me the measurements of the fender lengths and widths.

Answers

March 05, 2013
Jason
On part number 9003430 which are the 33/34 Ford passenger car front fenders there are numerous curves, angles, and contours that make measurements hard to take. From front to rear is 57 ¼” and from the drop below the grille at the front to the inside edge of the running board meeting corner is 56 ¾”. The inside edge is a horizontal radius but if squared off the outer edge directly above the wheel opening center to the inside edge is approximately 21”. From the drop below the grille to he outside edge as it makes the front radius is approximately 33”. Use on anything other than a 33 or 34 Ford passenger car will take considerable modification and fiberglass work.

does anyone have knowledge how these fenders may match for replacement of " street beast " damaged fender ( front left ) on 34 ford coupe ?

1 answers
Freddie
Modesto , Ca.
June 13, 2011

does anyone have knowledge how these fenders may match for replacement of " street beast " damaged fender ( front left ) on 34 ford coupe ?

Answers

June 16, 2011
John
These are replacement fenders in fiberglass for the ’33 and ’34 Ford cars. They will not work on Street Beast bodies as they are similar in looks and shape but not exact to the ’33 or ’34 Ford cars. Dimensions and contour are different enough that considerable fabrication and alteration would be required.
Page 1 of 1
