1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Plain

1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Plain
1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Plain
1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Plain

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

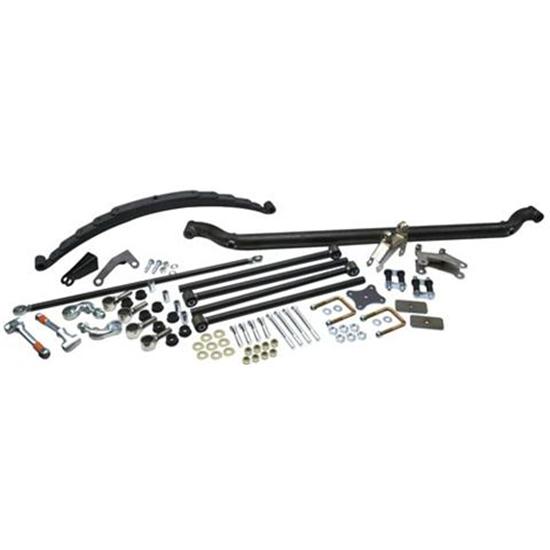

To make it easier for you the builder, we have four front axle assemblies that are designed for frame #91657050. Choose from plain or chrome and tube or I-beam axles.

These front end assemblies include a new tube or I-beam axle, new leaf spring and u-bolts, spring shackles, spring perches, lower shock mounts, 4-bars and ends and panhard bar assembly.

Front Axle/Suspension Tech Tips (GIF)

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

Can you buy just the 4 bar kit for the front? I would like to use the kit if available for my 30 model A. I have wishbones now but would like to use the 4 bar setup and do away with the 48" wishbones I have. I found a kit for a fair price on another website but would like to keep buying from speedway if possible.

Gremyen62
Kansas
September 13, 2014

Can you buy just the 4 bar kit for the front? I would like to use the kit if available for my 30 model A. I have wishbones now but would like to use the 4 bar setup and do away with the 48" wishbones I have. I found a kit for a fair price on another website but would like to keep buying from speedway if possible.

Answers

September 16, 2014
EricM
The front four bar kit for your Model A is number 91639105 and panhard bar kit is number 91049801 which is recommended when running a four bar front end.
1 answers

I have this same front end on my 32 ford. Im trying to raise it up somewhat. How can i do this. Thanks

holleywood
metairie,La
June 11, 2011

I have this same front end on my 32 ford. Im trying to raise it up somewhat. How can i do this. Thanks

Answers

June 16, 2011
John
These plain finish axle kits come with a reverse eye spring to lower the ride height. You can install a standard eye 31 ¼β€ spring and raise the car 1” or you could install spring spacers in ¼β€ increments between the spring and the cross member. Part number for the spring in plain is 91033029 or chrome 91033027. The spacer plates are part number 91633019.
