1932-34 Ford Front Four-Bar Kit, Plain Steel

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
1932-34 Ford Front Four-Bar Kit, Plain Steel

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Update your rod with a modern 4-bar front suspension featuring high quality components. Designed for stock style or tube axles with 2-1⁄4" bosses. Also fits 2" axles using our spacer washers 91635003.

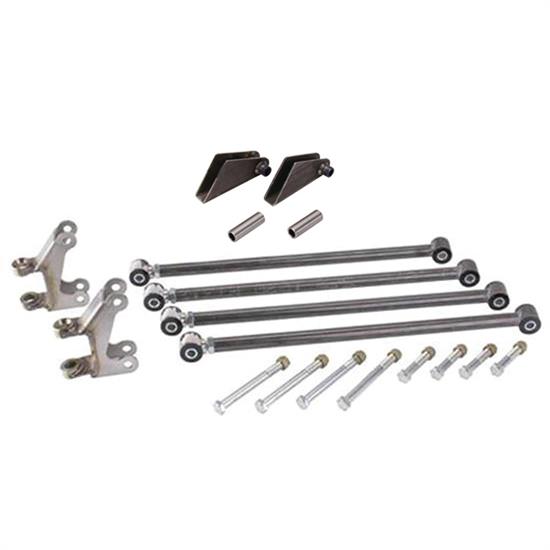

Complete kit with two bat wings, four 1020 black steel bars with tapped ends, tough nylon bushings and hardware.

916-39106 Instructions (PDF)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What is the dimension of the bar when measured from center to center from the bar end bushing and the heim joint on the other end assuming the heim is screwed all the way in. Thanks

Patty
CT
February 16, 2014

What is the dimension of the bar when measured from center to center from the bar end bushing and the heim joint on the other end assuming the heim is screwed all the way in. Thanks

Answers

February 17, 2014
EricM
These bars are 20 3/4" center to center.
