1932-34 Ford 4-Bar Tube Axle Kit for Ford Spindles, Stainless

SAME DAY SHIPPING! Order within the next 1 hour 26 minutes and receive same day shipping

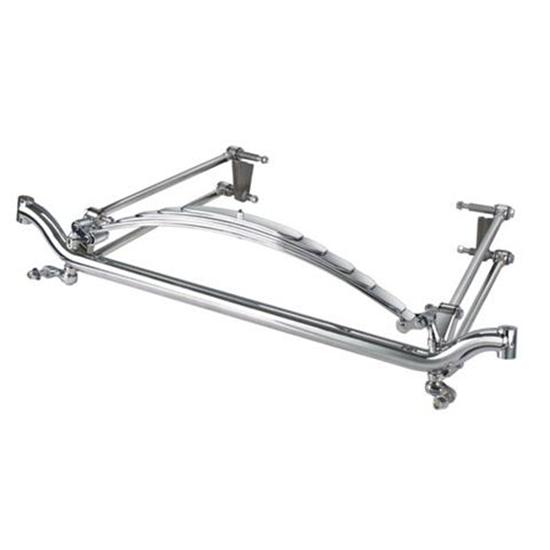

1932-34 Ford 4-Bar Tube Axle Kit for Ford Spindles, Stainless
Product Video
1932-34 Ford 4-Bar Tube Axle Kit for Ford Spindles, Stainless

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Save yourself searching and confusion with these complete 1932-34 Ford front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly.

Requires '37-'48 Ford passenger car spindles.

Each kit includes:

  • 48" kingpin-to-kingpin tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide cross spring
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)

Notes

  1. We strongly reccommend the use of a front panhard bar (such as our 910-49801) with four bar front suspensions. Four bar suspensions increase suspension travel over original wishbones or radius rods, which increases the need for side-to-side axle control. If using a Vega cross steering system, the panhard bar becomes mandatory as any side-to-side movement will cause bump steer.
  2. On 916-39523, the spring and frame bracket are chrome, not stainless steel.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Toyotaman
Verified Purchaser
Ferndale, WA, USA

Awesome support

March 25, 2015
Great product, ran into a few problems with installing but the speedway staff was very helpful in getting things taken care of. Make sure to tap and die the crome bolts before install to remove excess crome. The batwing bracket for panhard bar does not work with this configuration. Some more instructions and diagrams would be helpful also.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
