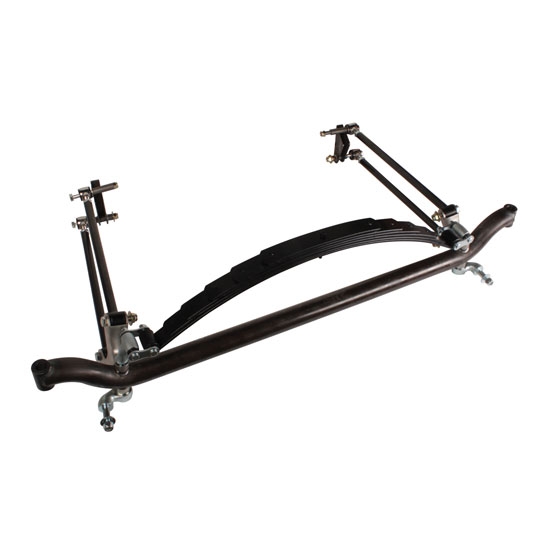

1932-34 Ford 4-Bar Tube Axle Kit for Chevy Spindles, Plain

1932-34 Ford 4-Bar Tube Axle Kit for Chevy Spindles, Plain
1932-34 Ford 4-Bar Tube Axle Kit for Chevy Spindles, Plain

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Save yourself searching and confusion with these complete front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

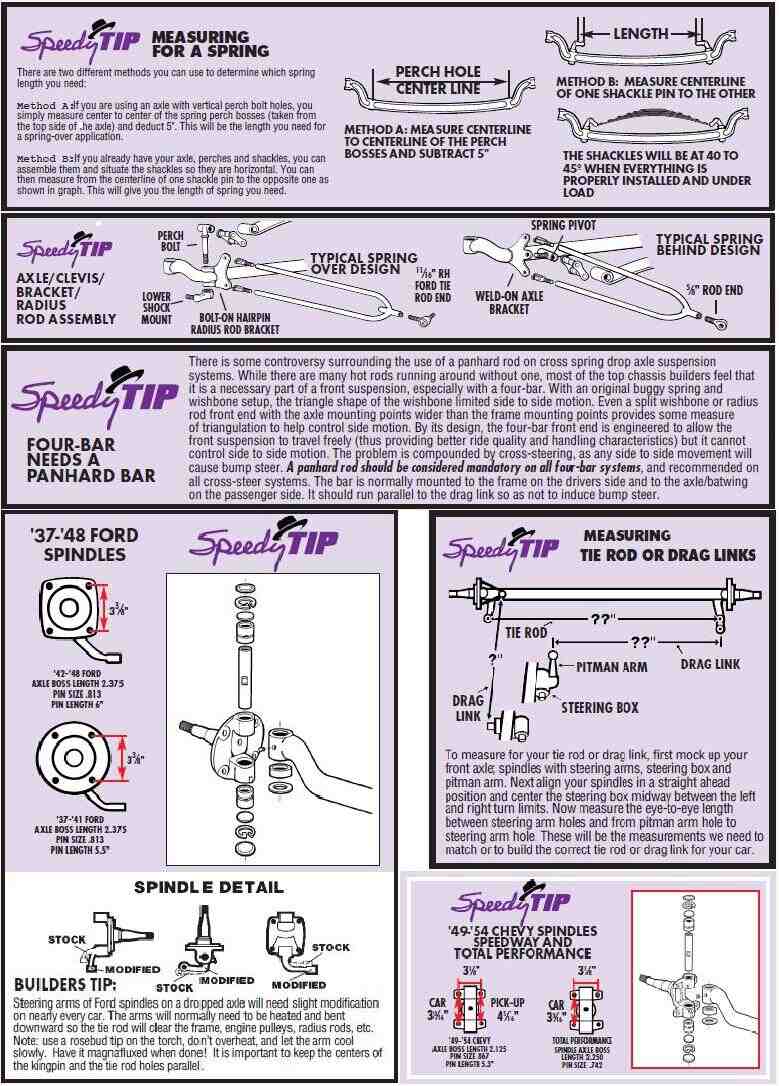

Front Axle/Suspension Tech Tips (GIF)

Notes

We strongly reccommend the use of a front panhard bar (such as our 910-49801) with four bar front suspensions. Four bar suspensions increase suspension travel over original wishbones or radius rods, which increases the need for side-to-side axle control. If using a Vega cross steering system, the panhard bar becomes mandatory as any side-to-side movement will cause bump steer.

You may also be interested in:

Pro-Blend 1720 Anti-Seize Compound
(Part #91016009)


Apply Pro-Blend anti-seize directly to any metal surface that may gall or seize due to heat, pressure, torque loading or shock. Excellent in environments of gas, alcohol, water, solvents, dirt, sand, and grit.

  • Defies contact of dissimilar or like metals
  • Not affected by heat, moisture, salt water, or corrosion

Learn why using anti-seize is so important in our tech article, Installing New Hardware.

Chevy Front Axle Steering & Brake Kit, 48 Inch Axle
(Part #9133901)


Speedway's exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, AN3 caliper fittings, Rubber Brake Lines, kingpins, flat steering arms, tie rod assembly and hardware.

For 48" kingpin-to-kingpin axles. Traditional steering arm for left front wheel NOT included with Traditional steering kit.

  • Speedway 1949-1954 Chevy Spindles
    • One piece forged 4140 steel
    • Modeled after the 49-54 Chevy passenger car spindles
    • Steering arms may be mounted to the top or bottom of the spindle
    • Standard king pins fit to spindles
  • Speedway 9-1/4" Brake Kit
    • 9-1/4" Mustang II rotors
    • 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
    • Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
    • Hub flange (hat) diameter - 5.74"
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16" banjo bolt to -3 AN line adapter kit
  • Traditional or Cross Steering Kit
    • Flat plate steering arms
    • 5/8" tie rod steering link
    • 5/8" standard heim joint rod ends
    • Seals-It 5/8" rod end seals
    • 5/8" steel cone heim spacers

Spindle Identification Guide (GIF)

Chevy Wilwood Front Brake & Steering Kits, 48 Inch Axle
(Part #9133903)


Speedway's exclusive steering & brake kits for 1949-54 Chevy spindles save you time and money by combining all necessary parts into one part number. Each kit includes premuim Wilwood brake components, spindles, flat steering arms, tie rod assembly and hardware. Hubs are drilled for both 4-1/2" and 4-3/4" bolt patterns. Must be used with a 15" or larger wheel. For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Kits can be used with either manual or power boost master cylinders.

Choose:

  • Traditional or cross steering
  • Chrome or plain steering arms and tie rod cross bar

Features these Wilwood components:

  • 4-piston Forged Billet Dynalite Calipers
  • 10-3/4" diameter x .380" thick solid steel rotors - black finish
  • Lightweight clear-anodized aluminum hubs
Front Panhard Bars
(Part #91049801)


With cross steering a Panhard bar is a must-have. It stops side-to-side sway of chassis relative to the axle. This bar is for spring-over-axle, 4-bar front ends on 1928-1934 Fords.  Tube O.D. is 5/8".

  • 11/16" outside diameter
  • 1/2" inside diameter
  • 1/2" bolt
  • 1/2" heim

Chassis bracket welds-on, then bar bolts in place to the side of the 4-bar batwing. Panhard bar bracket mounts to a batwing that features a 4-1/2" on center four-bar spacing.

Speedway 1949-54 Chevy Car Modified Spindles Only
(Part #91632100)


Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation.

  • Made to direct mount Mustang II hubs and rotors plus many other later GM's
  • Kingpin geometry changed to work with current radial tire construction
Spindles also available in kit form with kingpins. Save when you purchase a complete kit!

Spindle Identification Guide (GIF)

1932-34 Ford 4-Bar Tube Axle Kit for Chevy Spindles, Chrome
(Part #91639514)


Save yourself searching and confusion with these complete front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)

1932-34 Ford 4-Bar Tube Axle Kit for Chevy Spindles, Stainless
(Part #91639524)


Save yourself searching and confusion with these complete front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)

Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel
(Part #91633006)


Use with original or reproduction Model "T" thru '34 Ford crossmembers. Includes two U-bolts with nuts, one spacer plate and one lower bracket.

Weld-On U Bolt Plates
(Part #9161002)


This kit will clean up the appearance of your front crossmember. It has two plates that weld to the crossmember, and another plate that holds the spring from the underside, eliminating the need to have the U-bolts come up over the top of the crossmember.

Speedway 1949-1954 Chevy Car Modified Spindles w/ King Pins
(Part #91032100)


Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation.

  • Made to direct mount Mustang II hubs and rotors plus many other later GM's
  • Kingpin geometry changed to work with current radial tire construction
  • Includes many features not found on GM's original design
  • Forged steel (not cast) reproduction spindles
  • Kit includes pair of new spindles with new kingpins fit to spindle
  • Spindle nuts NOT included (sold separately)

Spindle Identification Guide (GIF)
