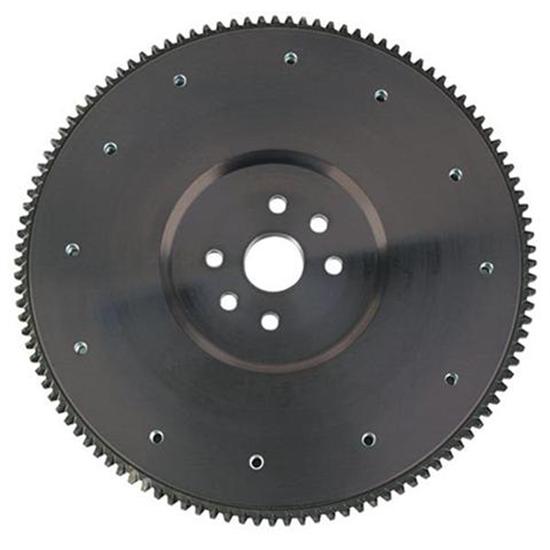

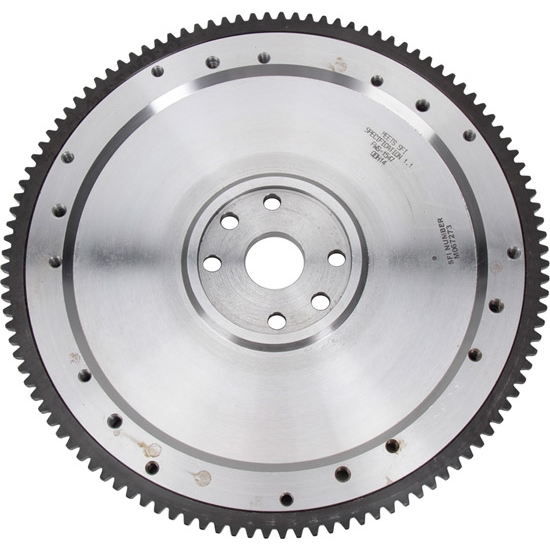

1932-1948 Flathead Steel Flywheel

SAME DAY SHIPPING!

Notes
This flywheel will require red locktite applied to the ID of the pilot bearing in some cases

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

It's getting harder to find usable Flathead flywheels and clutch components. We offer you these new steel flywheels for early 1932-1948 engines. Weighs 24 lbs.

Will accept 10" and 10.5" Ford (Long-style) and 10.5" Borg & Beck Diaphram pressure plates.

T-5 and Adapter Tech Tips (Link)

Application

This flywheel is drilled to accept pressure plates with these bolt pattern:
  • 3 groups of two with 3 1/8" center to center on 11-1/2" bolt circle
  • 3 groups of two with 3 3/8" center to center on 12-1/2" bolt circle
  • Also has 6 individual evenly spaced  on 11-3/4" bolt circle
