1932-1934 Ford Chassis Rear Axle Mounting Brackets

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Natural
Notes
Mounts rear axle with 3" diameter tube to '32-'34 Ford using '35-'48 Ford spring. 7-7/8" from end of tube to center of the spring perch.

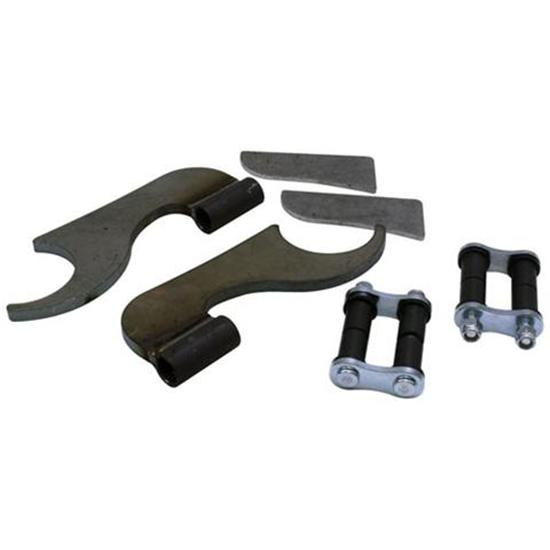

1932-1934 Ford Chassis Rear Axle Mounting Brackets

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (7)

Q & A (4)

What's in the Box

Info

This rear axle mounting bracket is used to mount a later rear axle under a 1932-1934 Ford frame using a transverse rear leaf spring from a 1935-1948 Ford and your stock crossmember. It will not work with a stock 1932-1934 Ford rear spring.

Includes 2-1/4" shackles, weld-on brackets and instructions.

916-45105 Instructions (PDF)

Customer Reviews

Rated 4.7 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
5
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

flathead Joe
Verified Purchaser
Maine

I would buy this prouduct again

October 07, 2016
Great piece no problem in fitment
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

sre81
Verified Purchaser
Verified Reviewer
kingsburg ca

you can't afford to build your own at this price!

December 20, 2015
They need to offer a kit using the narrower 35-40 front spring which requires a 2" shackle instead of 2 1/4"
Pros:
  • Saves Time And Money
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

edski
Verified Purchaser
Verified Reviewer
mansfield, Texas

makes job easy

October 10, 2015
wish they had a temporary way to position rear end while setting pinion angle like maybe a U-bolt clamp that would allow axle housing to be rotated while spring remained level with frame
Pros:
  • Nice Way To Mount Spring
  • Well Braced Spring Mount
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

yardley
Verified Purchaser
Verified Reviewer
Dukes Mi.

Instructions need to be redone .not clear for brace

September 13, 2015
34 Ford used 80 elcamino rear, stock spring, and 36 Ford bars
Pros:
  • I Used The 34 Spring
  • nicely built
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tomo
Verified Purchaser
Rochester, NY, USA

nice parts

March 19, 2015
This kit made setting up the rear axle on my '32 chevy coupe easy.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Cookie32
Verified Purchaser
Lago Vista, TX, USA

Great fit and looks good

August 12, 2014
Great time saver. Very well constructed. Made an easier job installing Ford 9in into 32 Roadster. Way to go!
Pros:
  • keep it simple.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

na
Verified Purchaser
southern CO

very nice kit

March 16, 2012
like speedways mproducts and their fast delivery
Pros:
  • Durable
  • Easy To Use
  • Versatile
  • Nice and strong
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

1 answers

Will 91645105 work with 91043105 I want to hang my spring behind my rear end . Have cross member 2 in ID. Need shackles and mounting brackets to match up. Thank you . Leron Adams Customer # 10466759

Leron
N. Augusta/ SC
February 14, 2015

Will 91645105 work with 91043105 I want to hang my spring behind my rear end . Have cross member 2 in ID. Need shackles and mounting brackets to match up. Thank you . Leron Adams Customer # 10466759

Answers

February 16, 2015
Tech
This spring hanger is meant for a 2 1/4" spring, and the spring you are asking about is a 2" wide spring, so the shackles are to wide for that particular spring.
1 answers

Hi, Will this one fit on my stock 1930 leafs and on a chevy s10 rear axle? regards Peter sweden

Peter
SWEDEN
January 04, 2011

Hi, Will this one fit on my stock 1930 leafs and on a chevy s10 rear axle? regards Peter sweden

Answers

January 06, 2011
Waymon
The part number 916-45105 rear axle mounting brackets, have 3/4 inch diameter shackle eye bushings for use with 2 1/4 inch leaf springs and a 3 inch diameter axle. To fit this kit to your vehicle will take a lot of modifications. We do not believe this is the right kit for you.
2 answers

What diameter axle housing are these brackets cut for? 3" ? for Ford 9" rear

Rosey
Howell, MI
August 04, 2011

What diameter axle housing are these brackets cut for? 3" ? for Ford 9" rear

Answers

March 20, 2015
Tomo
3 inches
August 05, 2011
Jason
Yes, these brackets fit a 3" axle tubes
1 answers

when using these mounts should I position them to have the leaf spring in front or in the rear of the axle? how would this affect the ride? I'm also planning on a four bar set up. Using a 55 chevy axle with a 31 ford frame

February 17, 2011

when using these mounts should I position them to have the leaf spring in front or in the rear of the axle? how would this affect the ride? I'm also planning on a four bar set up. Using a 55 chevy axle with a 31 ford frame

Answers

February 21, 2011
Waymon
You should mount the spring in the rear of the axle, and it will not effect the ride.
